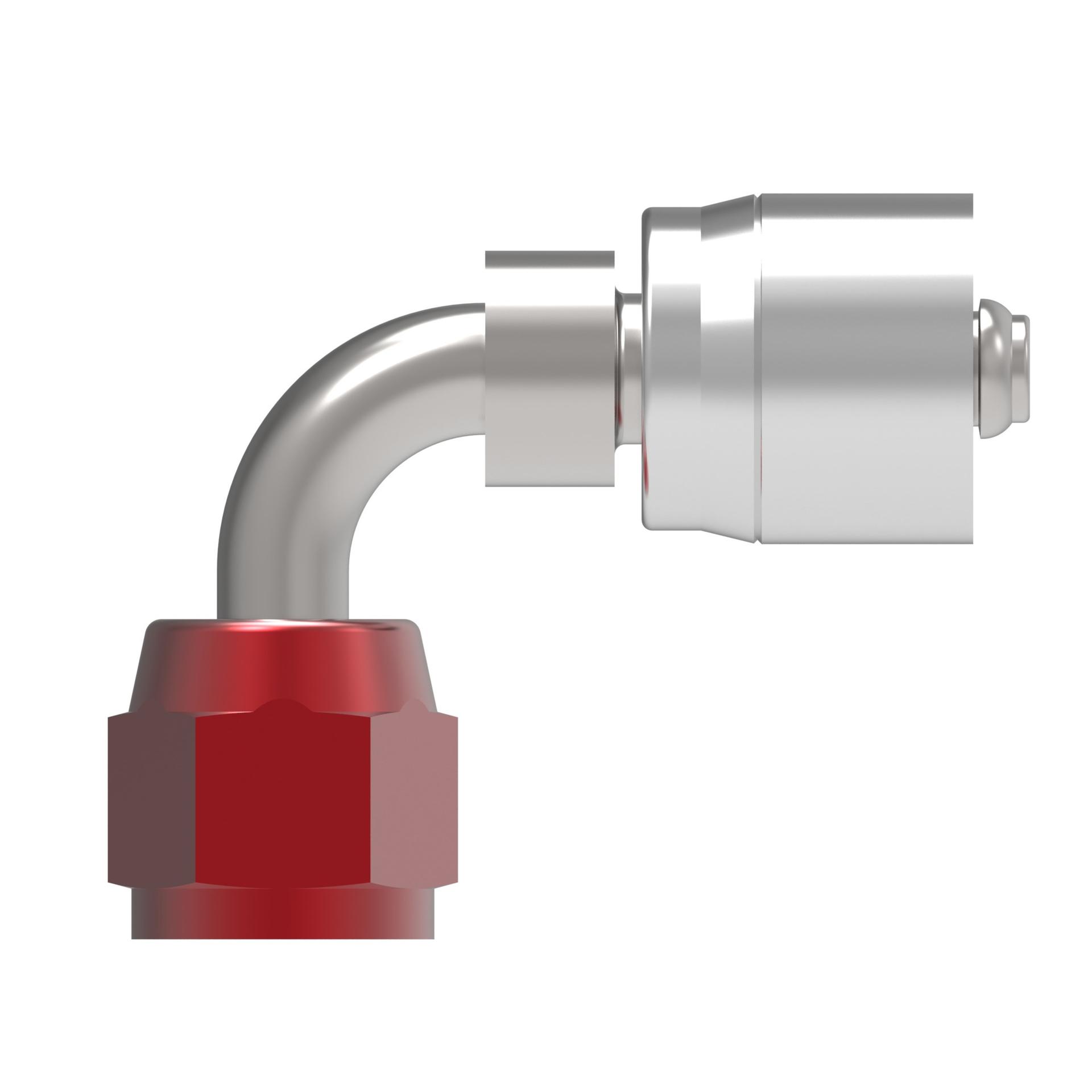

Hose Fittings FBM4131 [RIGHT]

Ftng PERF SAE 37 90 Deg Ftng 345-16--

FCM4131

Tools

Product specifications

Characteristic
Value
Angle shape90 Degree
BrandAeroquip Performance Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hosesFBU
Construction StyleCrimp
Drop dimension IN0.680
Drop dimension MM17.27
End size 1-4
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN0.563
Hex size 1 MM14.288
Hose cut off factor IN0.780
Hose cut off factor MM19.812
Hose size-4
Inside diameter IN0.150
Inside diameter MM3.810
Product materialAluminumCarbon steel
Thread sealantNo

General specifications

Characteristic
Value
EAN/UPC678146219329
