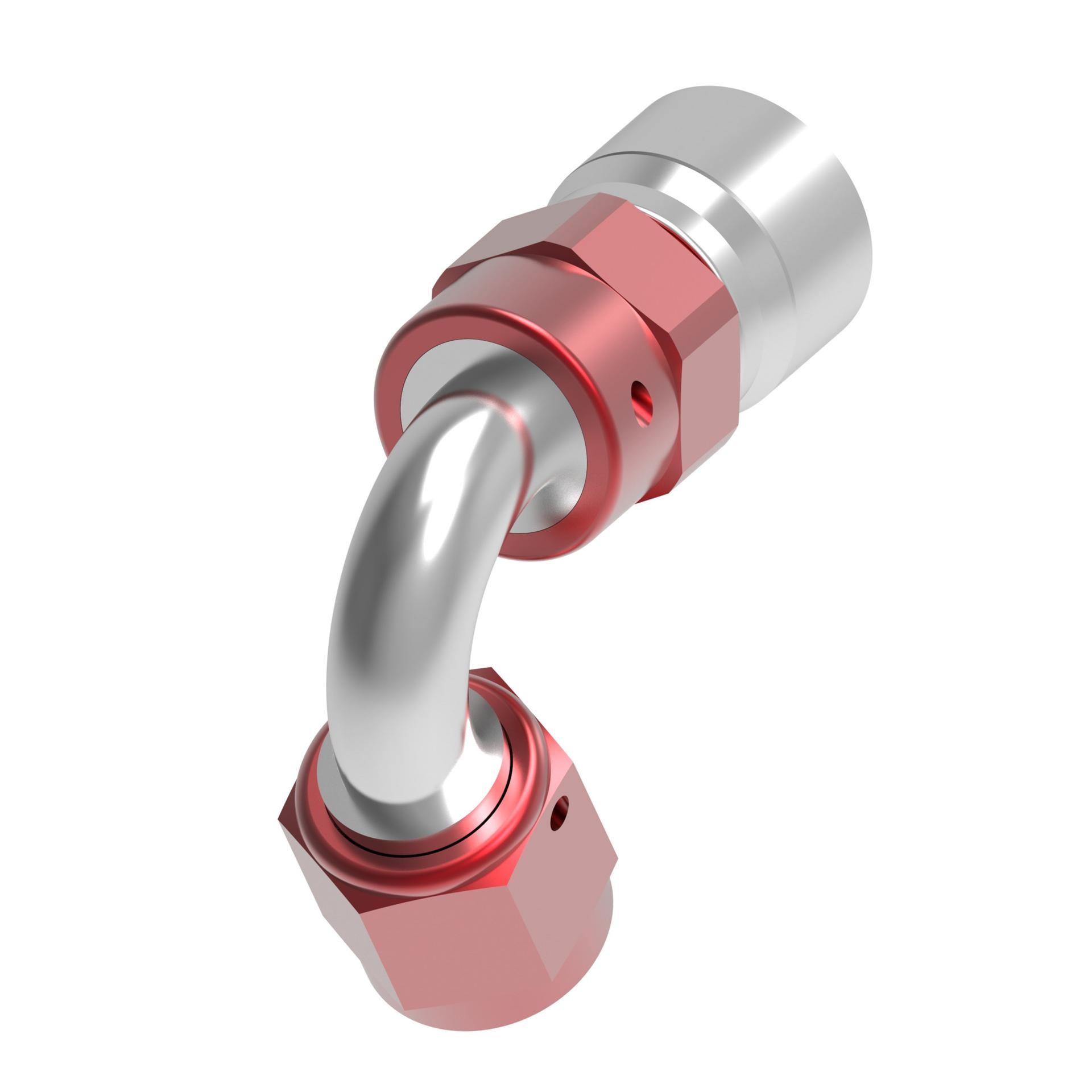

Hose Fittings FBM4242 [RIGHT]

Ftng (perm), PERF SAE 37 120 Deg Fitting

FCM4246

Tools

Product specifications

Characteristic
Value
Angle shape120 Degree
BrandAeroquip Performance Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hosesFBU
Construction StyleCrimp
Drop dimension IN2.899
Drop dimension MM73.6
End size 1-16
End type 1Female 37 degree swivel
Finish platingAnodized
Hex size 1 IN1.500
Hex size 1 MM38.1
Hex size 2 IN1.500
Hex size 2 MM38.1
Hose cut off factor IN1.940
Hose cut off factor MM49.276
Hose size-16
Inside diameter IN0.750
Inside diameter MM19.050
Product materialAluminum
Thread sealantNo

General specifications

Characteristic
Value
EAN/UPC678146219596
