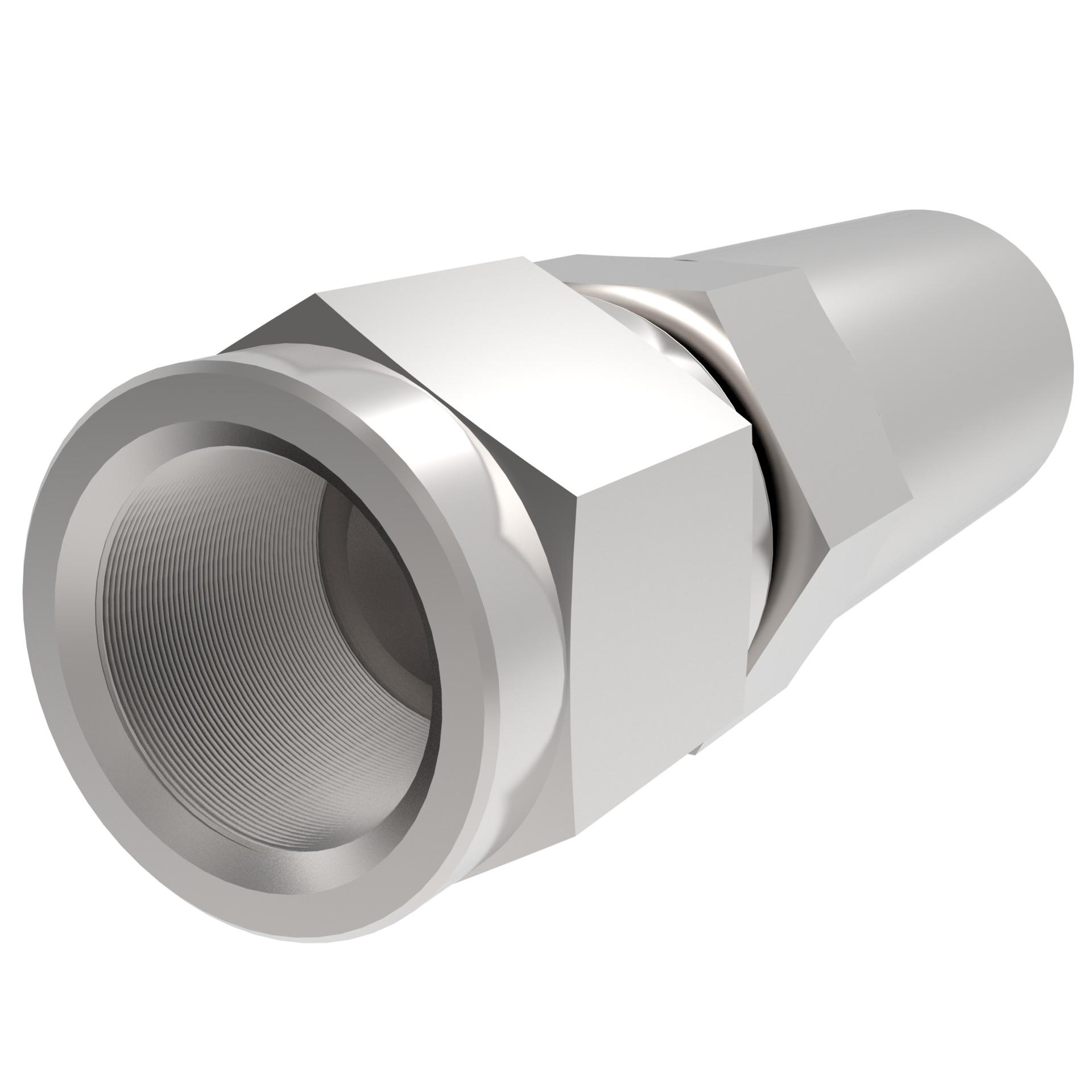

Hose Fittings 398E-03544-C05 [RIGHT]

SYNFLEX FITTING

398E-03544-C05

Tools

Product specifications

Characteristic
Value
A dimension IN1.897
A dimension MM48.180
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.180
Compatible hose ID MM4.572
Compatible hosesH335 H336
Compatible tube OD IN0.18
Compatible tube OD MM4.572
Construction StyleCrimp
End connection hex size IN0.563
End connection hex size MM14.288
End size 1-4
End type 1Female 37 degree swivel
Hex size 1 IN0.563
Hex size 1 MM14.288
Hex size 2 IN0.563
Hex size 2 MM14.288
Hose cut off factor IN1.137
Hose cut off factor MM28.880
Hose size-3
Inside diameter IN0.109
Inside diameter MM2.770
Product height in0.640
Product height mm16.256
Product length in1.890
Product length mm48.006
Product materialCarbon steel
Product width in0.560
Product width mm14.224
Thread size 17/16-20 UNF
Tube OD 1 IN0.180
Tube OD 1 MM4.572

General specifications

Characteristic
Value
EAN/UPC815628025119
