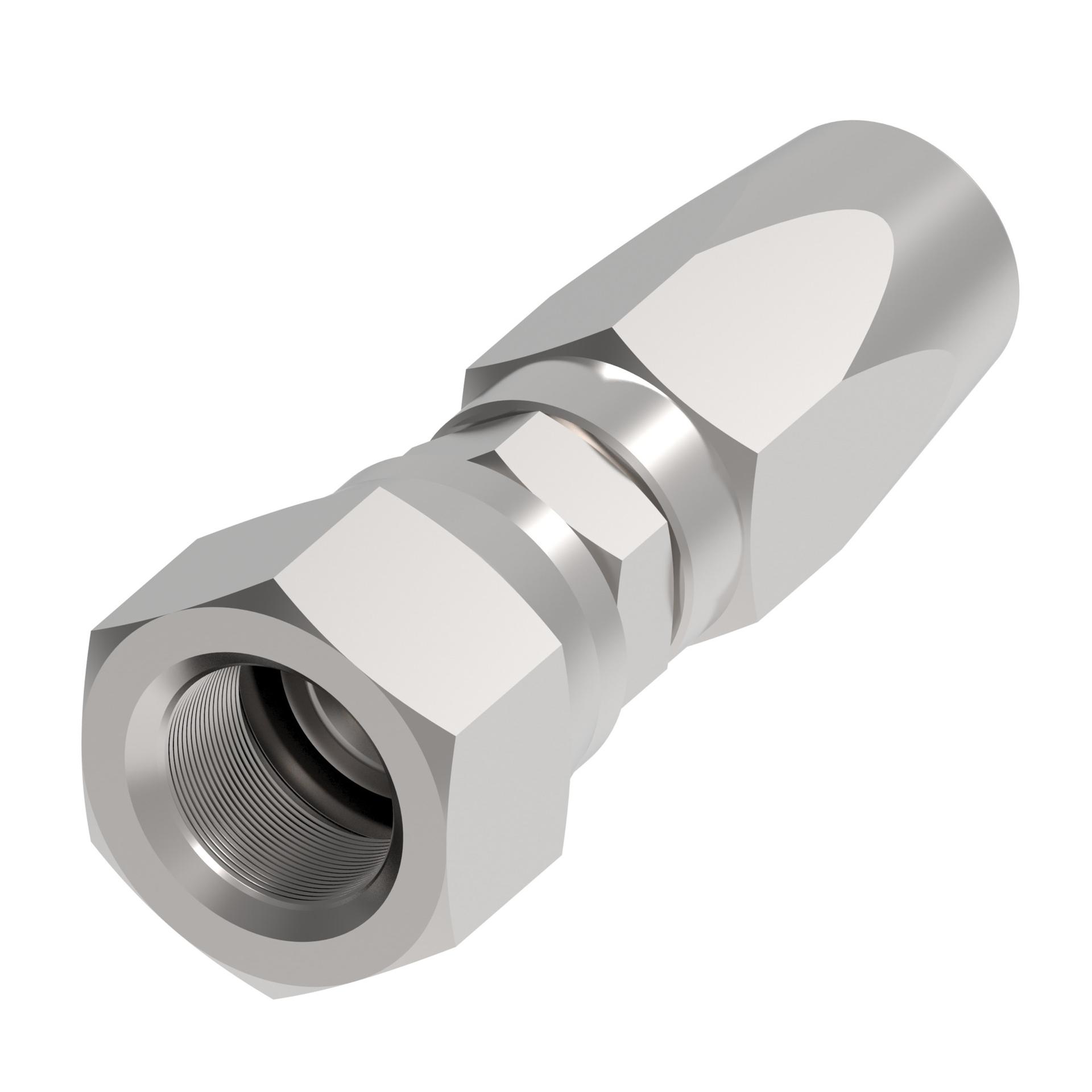

Hose Fittings 90102-045400-0 (RIGHT)

Ftng (reus), Thermo Synflex, FEM JIC SW

90102-035500-0


Tools

Product specifications

Characteristic
Value
A dimension IN1.790
A dimension MM45.500
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.125
Compatible hose ID MM3.175
Construction StyleReusable
End connection torque8-9 lb-ft(12-13 Nm)
End size 1-2
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN0.563
Hex size 1 MM14.288
Hex size 2 IN0.438
Hex size 2 MM11.112
Hose cut off factor IN1.040
Hose cut off factor MM36.620
Hose size-2
Inside diameter IN0.110
Inside diameter MM2.800
Product materialCarbon steel
Series901
Thread size 13/8-24 UNF

General specifications

Characteristic
Value
EAN/UPC810075333602
