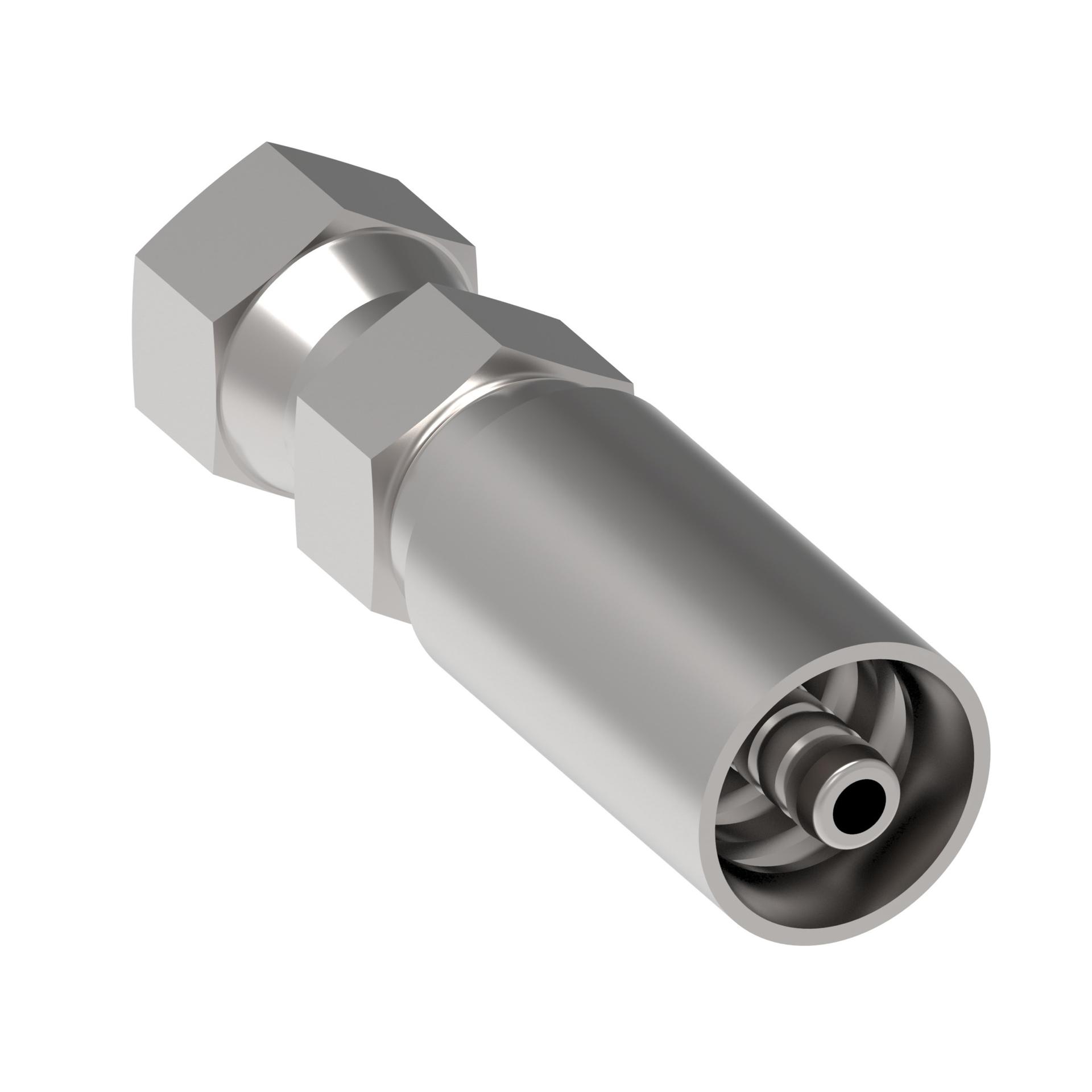

Hose Fittings 90308-125500 [LEFT]

HOSE FTG, 4T/04, JIC-F/04, AP, STR

90A04-045400-0

Tools

Product specifications

Characteristic
Value
A dimension IN2.526
A dimension MM64.160
Angle shapeStraight
Backup hex size IN0.625
Backup hex size MM15.000
BrandSynflex by Danfoss
Compatible hose ID IN0.250
Construction StyleCrimp
End connection hex size IN0.625
End connection hex size MM15.000
End size 1-4
End type 1Female 37 degree swivel
Finish platingPassivate
Hose cut off factor IN1.446
Hose cut off factor MM36.730
Inside diameter IN0.156
Inside diameter MM3.960
Product height in0.630
Product height mm16.002
Product length in2.530
Product length mm64.262
Product material316 Stainless steel
Product width in0.630
Product width mm16.002
Thread size 17/16-20 UNF

General specifications

Characteristic
Value
EAN/UPC678146139788
