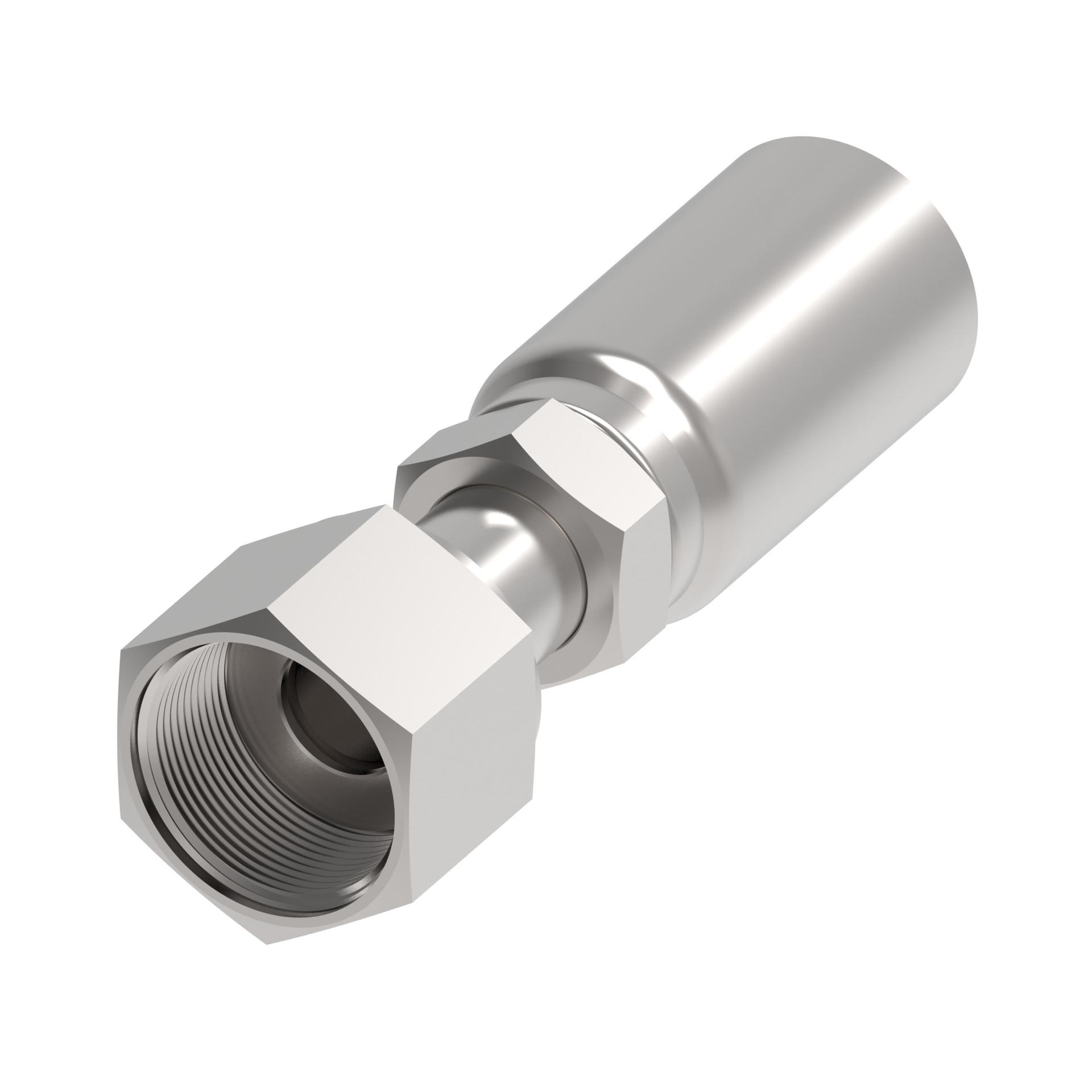

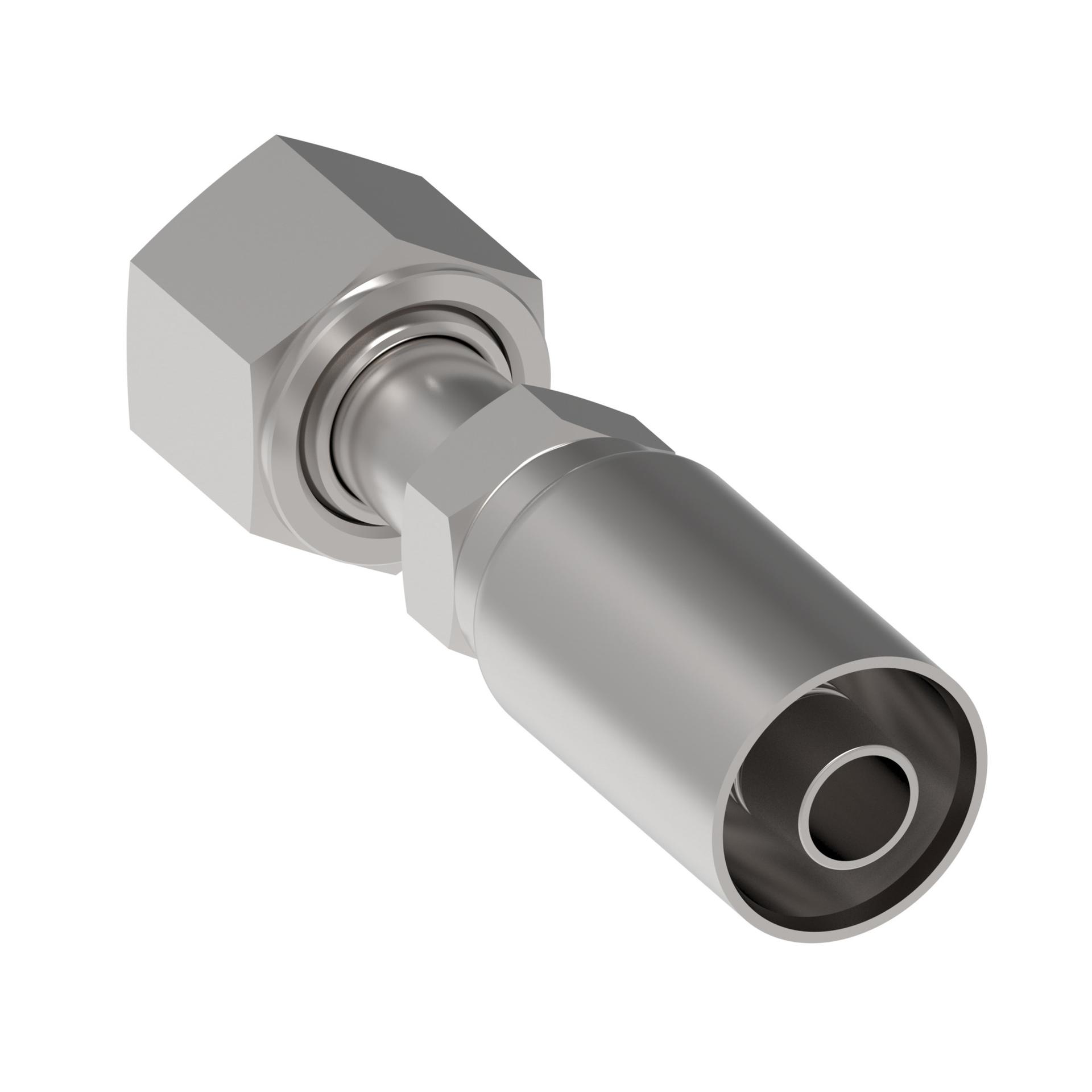

![Hose Fittings 90H08-104000 [LEFT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213781%2FID432878092944-0101_preview.jpg&w=1920&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.325 |
| A dimension MM | 84.460 |
| Angle shape | Straight |
| Backup hex size IN | 0.880 |
| Backup hex size MM | 22.352 |
| Brand | Synflex by Danfoss |
| Catalog Item | 90H08-104000-0 |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Construction Style | Swage |
| End connection hex size IN | 1.130 |
| End connection hex size MM | 28.702 |
| End connection torque | 44-49 lb-ft(60-66 Nm) |
| End size 1 | -16 |
| End type 1 | Female ORFS swivel |
| Finish plating | Protective oil |
| Hose cut off factor IN | 1.830 |
| Hose cut off factor MM | 46.482 |
| Hose size | -10 |
| Inside diameter IN | 0.391 |
| Inside diameter MM | 9.931 |
| Product material | Carbon steel |
| Series | 90H |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146087478 |
