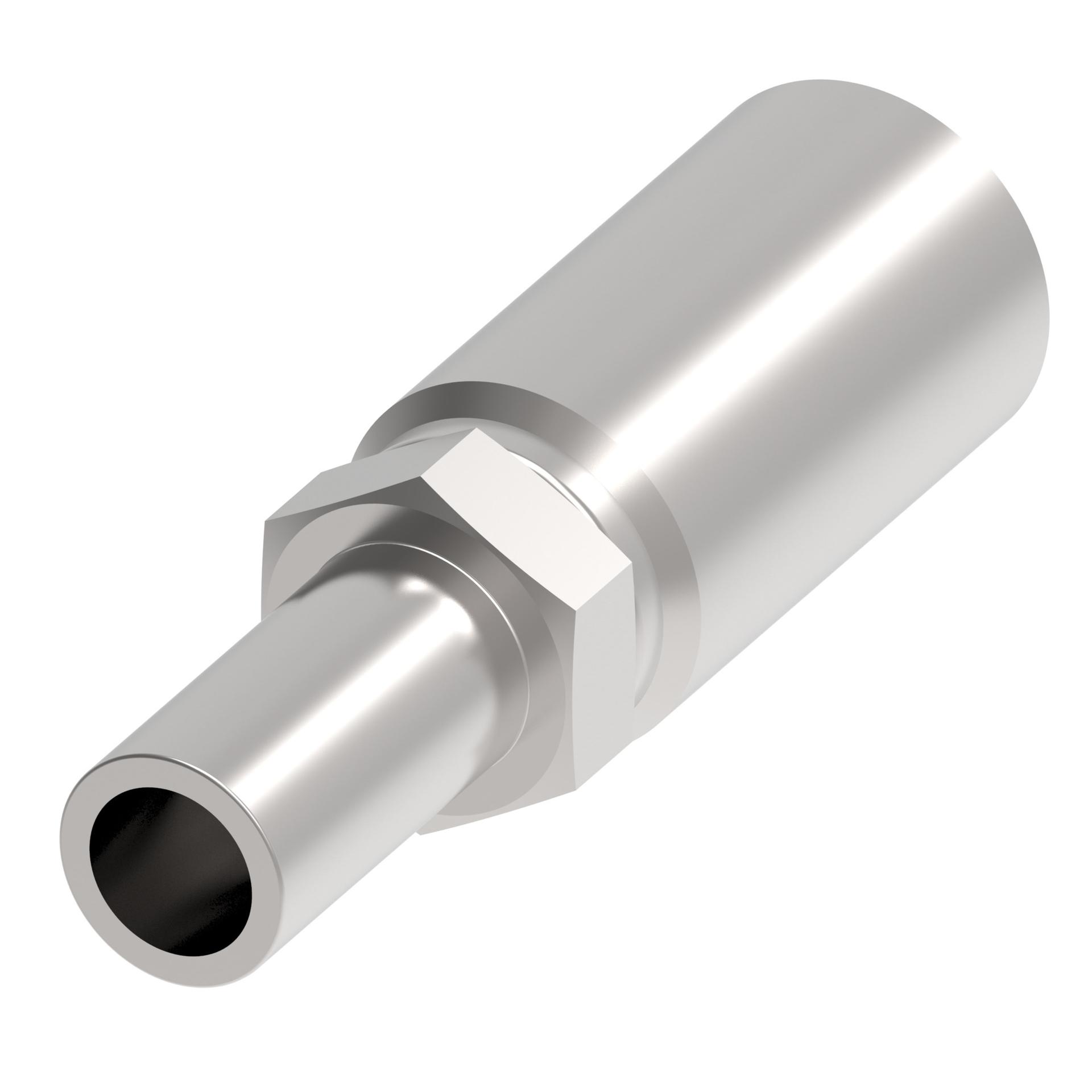

Hose Fittings 9M3XX-XXN000 (RIGHT)

HOSE FTG, SS/03, LM/08, CS, STR

9M303-08N000


Tools

Product specifications

Characteristic
Value
A dimension IN2.370
A dimension MM60.300
Angle shapeStraight
Compatible hose ID IN0.190
Compatible hose ID MM4.826
Construction StyleCrimp
End size 1-8
Finish platingDura-Kote
Hex size 1 IN0.551
Hex size 1 MM14.000
Hose cut off factor IN1.520
Hose cut off factor MM38.500
Hose size-3
Inside diameter IN0.110
Inside diameter MM2.800
Product height in0.630
Product height mm16.002
Product length in2.370
Product length mm60.198
Product materialCarbon steel
Product width in0.630
Product width mm16.002 mm
Thread sealantNo
Working temperature max C100
Working temperature max F212
Working temperature min C40
Working temperature min F40
