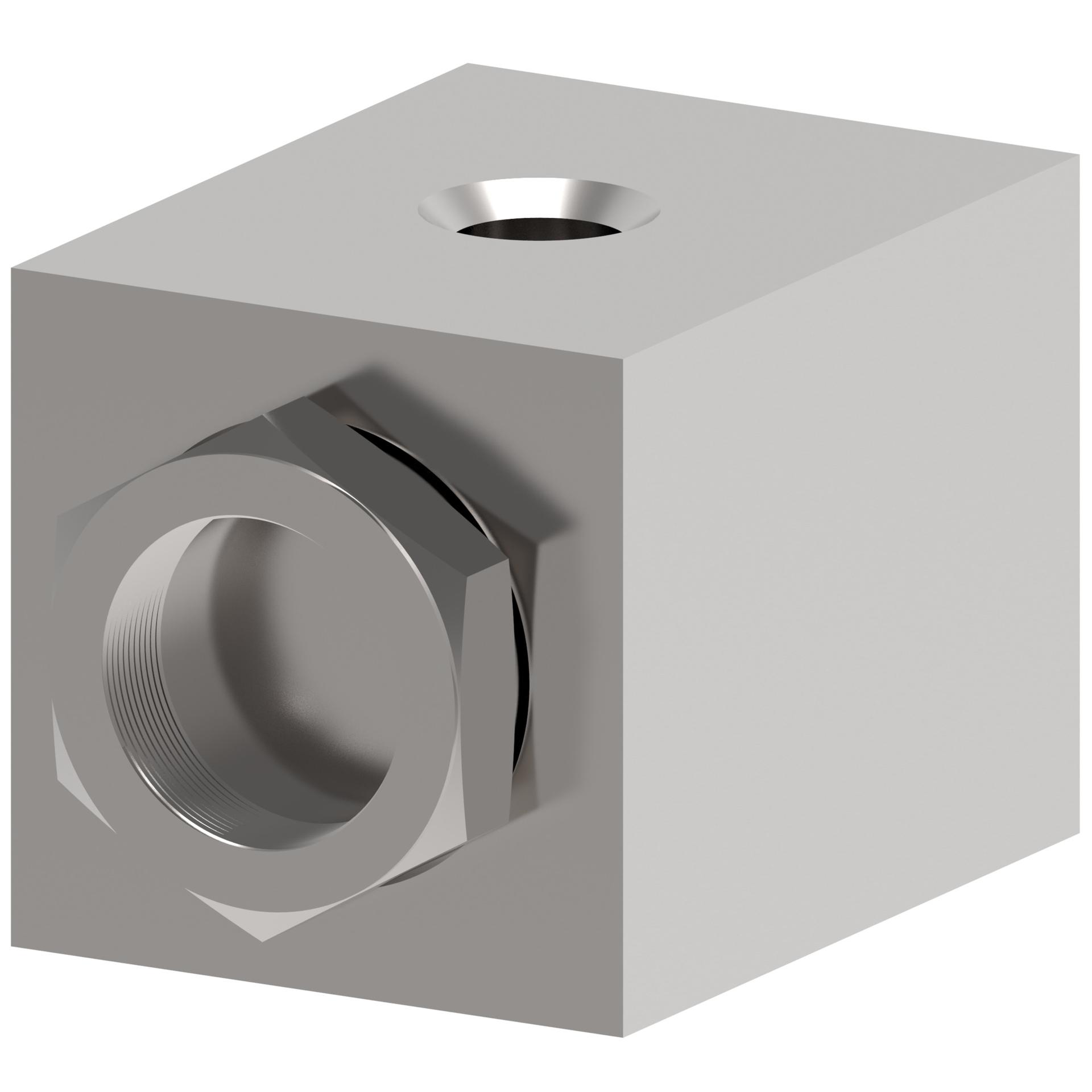

Product specifications
Characteristic | Value |
|---|---|
| Brand | Vickers by Danfoss |
| Cavity | Inline |
| Flow rate gpm | 6.10 |
| Flow rate lpm | 23.000 |
| Fluid Compatibility | MIL-H-5606, SAE10, SAE20, etc |
| Function | Shuttle Valve |
| Housing | Yes |
| Housing material | Aluminum |
| Installation type | Screw-in Cartridge |
| Leakage | 0.3 cc/min |
| Model Code | DSV3-12-B-A-4 |
| Model code 1 | DSV3-12-B-A-4 |
| Number of housing ports | 3 |
| Number of valve ports | 3 |
| Operating temperature | -40 C to 120 C (-40 to 248 F) |
| Operation | Direct acting |
| Pilot piston seal | No |
| Pressure rating BAR | 240.00 |
| Pressure rating PSI | 3500.00 |
| Recommended filtration level | 18/13 |
| Seal Type | Buna-N |
| Special features | None |
| Style | Ball |
