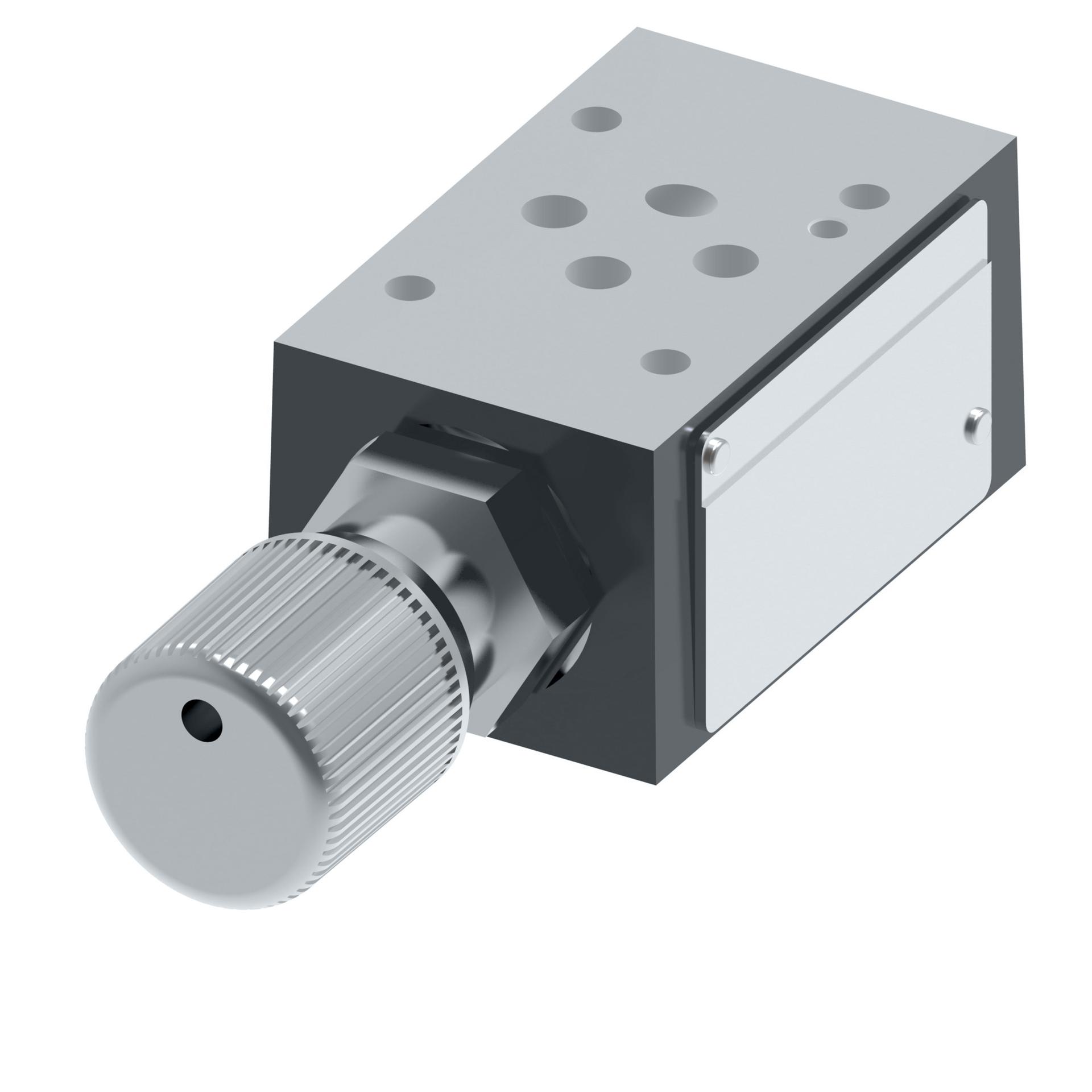

Vickers by Danfoss DGMC-3 41 Design SystemStak Valves DGMC-3-AT-BH (RIGHT)

DGMC 3 PT CH S 41, DGMC3PTCHS41, DGMC3PTCHS41

02-156243


Tools

Product specifications

Characteristic
Value
Actuation typePressure operated
Adjustment typeHandknob
BrandVickers by Danfoss
Design series41 Series
Discharge 1Discharge into T
First functionPressure limited in P
Flow rate upto LPM60
Flow rate upto USGPM16.0
Fluid cleanliness17/15/12 micron
Fluid compatibilityPetroleum Oils
Gauge port thread typeSAE 4 (7/16"-20 UNF-2B)
InterfaceISO4401-03
Maximum pressure upto bar315
Maximum pressure upto psi4500
Model CodeDGMC3PTCHS41
Model Code 1DGMC3PTCHS41
PerformanceStandard
Pressure adjustment range10-200 bar (145-2900 psi)
Seal typeViton
Special featuresNone
Valve mount typeSubplate/manifold mounted
Valve typeSingle relief valve
Working temp max C80
Working temp max F176
Working temp min C-20
Working temp min F-4
