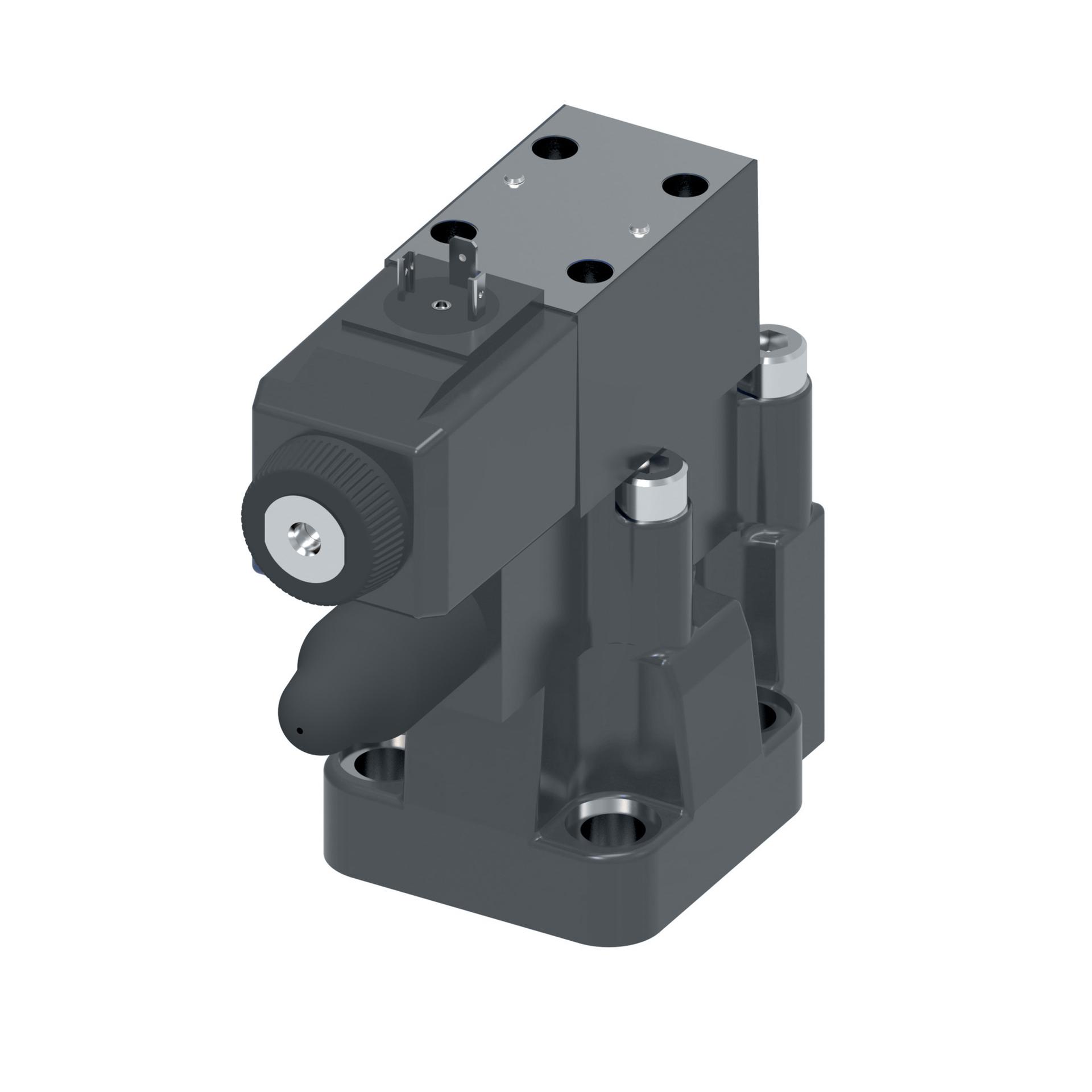

02-156001-M
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
02-156001-M
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Actuation Type | Solenoid Controlled | |
| Application | Die casting & foundry, machine tool, marine/offshore, press, primary metal, plastics, pulp & paper, test equipmen | |
| Body material | Gray Iron | |
| Check Valve | Yes | |
| Coil voltage | 24 Volt DC | |
| Command Type | Standard | |
| Connector type | DIN 43650 | |
| Current | 1.6 A | |
| Customer Programmable | No | |
| Design code | 10 | |
| Diode | None | |
| Feature | Available in three performance levels - ultra, high and standard - to suit a wide range of application requirementsDirect-actingReduce commissioning time through plug-and-play funcitonality | |
| Feedback Sensor | No | |
| Flow rate | 200 l/min | |
| Fluid Cleanliness | 17/15/12 | |
| Fluid compatibility | Anti wear petroleum oils and Non alkyl based phosphate esters | |
| Function | Directional Control Valve | |
| Interface | AR-06-2-A | |
| Leakage | Standard | |
| Light | No | |
| Manual Override | None | |
| Model Code | KXCG-6-W160-3-Z-M-U-H1-10 | |
| On-Board Electronics | None | |
| Performance | Standard | |
| Pressure Drop at Rated Flow | 12 bar | |
| Pressure Rating | 350 bar | |
| Product Height | 7.6 in | |
| Product Length/Depth | 7.1 in | |
| Product Type | Proportional Valves | |
| Product Volume | 196.954 in³ | |
| Product Weight | 10.8 lb | |
| Product Width | 3.65 in | |
| Reducer Module | No | |
| Seal material | Buna-N | |
| Special features | None | |
| Spool Center Condition | None | |
| Spring Arrangement | No Spring | |
| Stage | Two Stage | |
| Sub-brand | None | |
| Symmetrical Flow | Yes | |
| Trade Name | KXCG-6 10 Design | |
| Valve Mount Type | Subplate | |
| Working temperature - max | 70 °C | |
| Working temperature - min | -20 °C |
