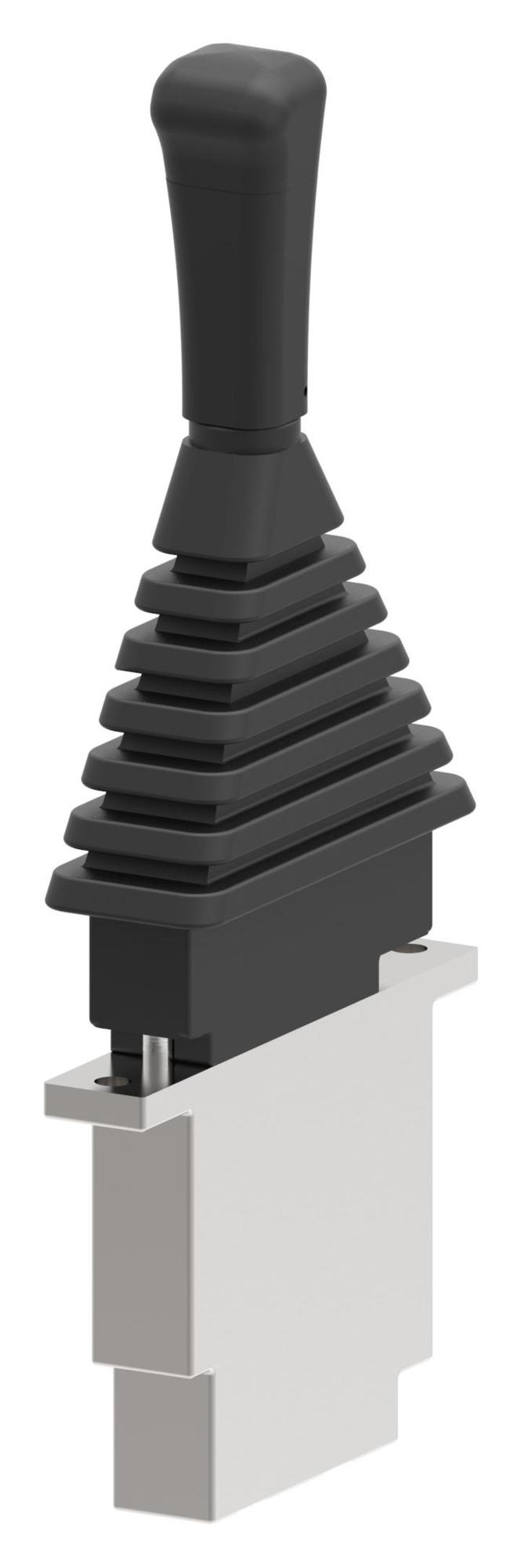

Danfoss HRC Hydraulic Remote Controls 12050253401 [RIGHT]

DHRCD1 ASSY, J96H2000, JRCVD-02

12050009801


Tools

Product specifications

Characteristic
Value
Boots typeStandard grey
BrandDanfoss
Configuration and body typeSingle standard
Design codeA
Detent optionNo
Electrical connector 1JIS D5403 CA104 & CB104
Electrical connector 2No connector
Handle lever type and bar typeA type lever with A type bar
Hose fittingNo fitting
IdentificationNo
Installation7[0.275] hole on top 1 body
Operating type and torqueSpring TQ 0.49Nm[0.36lbf ft]
Port thread and sealingBSPP G1/4 Flat sealing
Pressure port 1 of section 1B04 5.0[72.5]/28.0bar[406.1]
Pressure port 1 of section 2Not applicable
Pressure port 1 of section 3Not applicable
Pressure port 1 of section 4Not applicable
Pressure port 1 of section 5Not applicable
Pressure port 2 of section 1B04 5.0[72.5]/28.0bar[406.1]
Pressure port 2 of section 2Not applicable
Pressure port 2 of section 3Not applicable
Pressure port 2 of section 4Not applicable
Pressure port 2 of section 5Not applicable
Product seriesDanfoss HRC Dozer Joystick
Section quantityOne section
Special_featuresNo
Switch optionsFront one button for A lever
