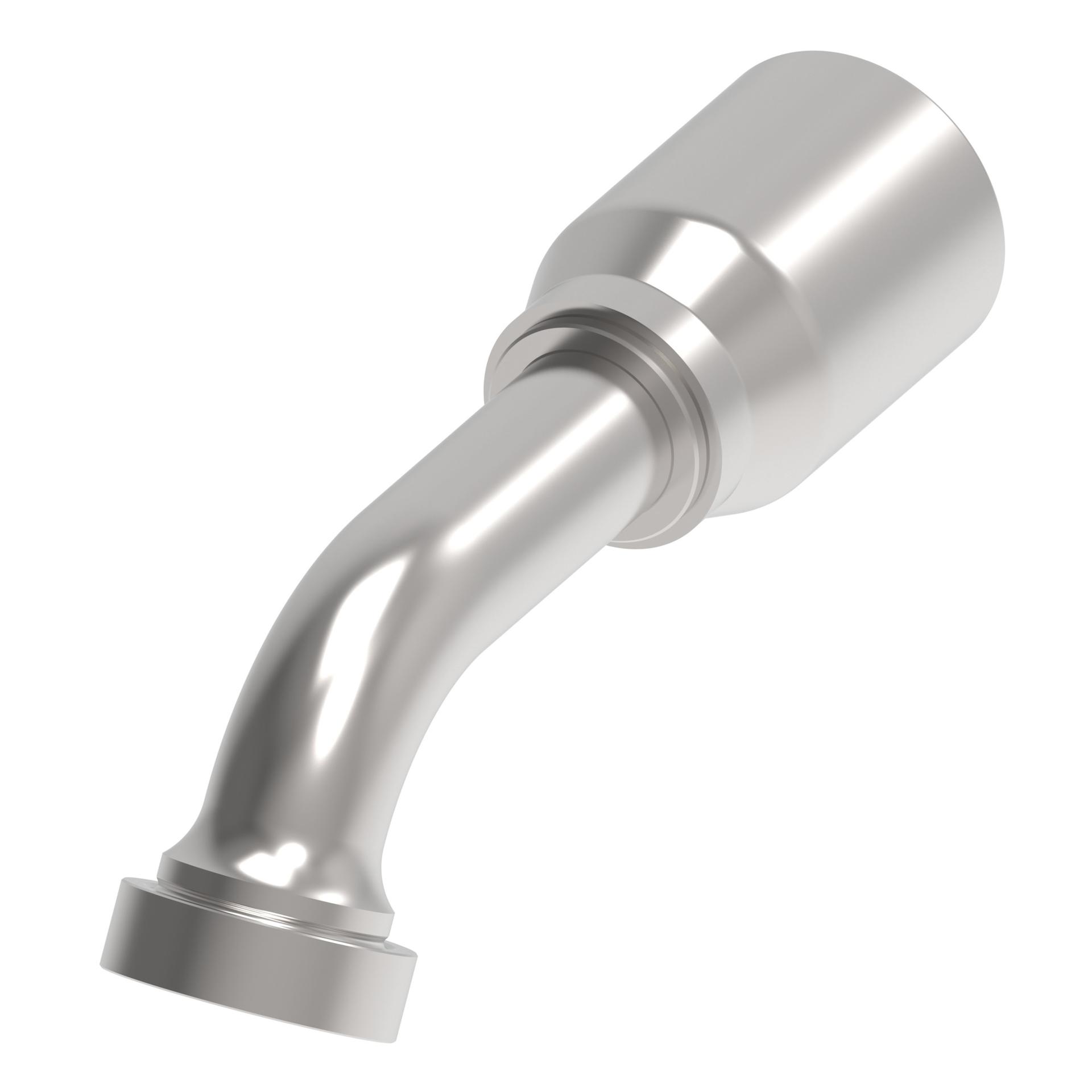

1E16CTG16
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
Recommended replacement: 4S16CTG16
1E16CTG16
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 60 Degree | |
| Compatible hoses | FC254, FC273, FC273B, FC606, FC500, GH810, GH466, GH506 | |
| Drop dimension | 1.92 | |
| End type 1 | Flanged | |
| End type 2 | Line/Hose/Tube | |
| Finish/plating | Zinc Plating | |
| Hose cut-off factor | 4.89 in | |
| Hose dash size | -16 | |
| Item type | Fitting Assembly | |
| Packaged Weight | .01 lb | |
| Product Height | 3.92 in | |
| Product Length/Depth | 7.49 in | |
| Product material | Carbon steel | |
| Product Volume | 62.539 in³ | |
| Product Width | 2.13 in | |
| Thread sealant | No | |
| UPC | 678146131775 |
