1E24FLE24
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Spiral fittings

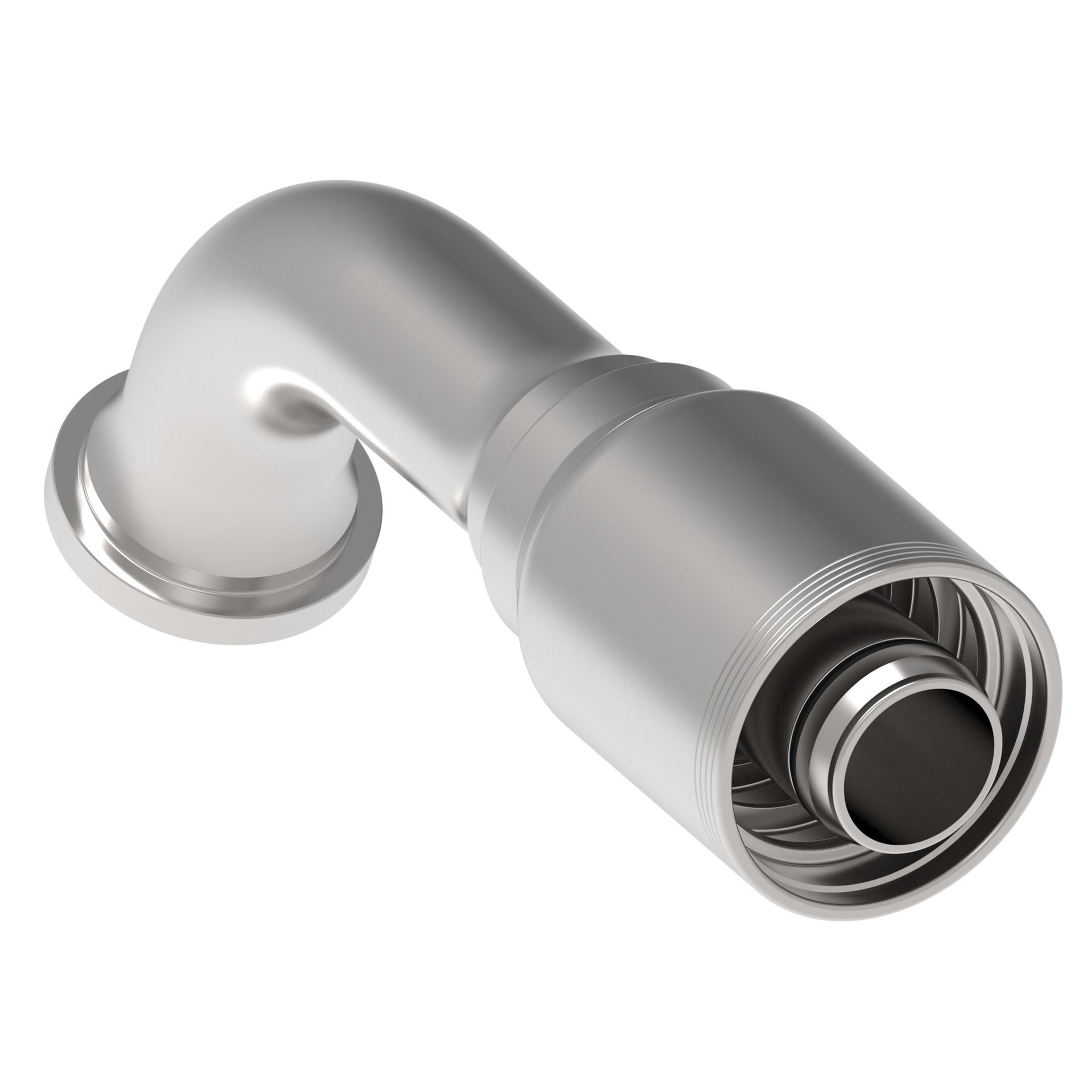

Recommended replacement: 4S24FLE24
1E24FLE24
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | 67.5 Degree |
| Compatible hoses | FC254, FC273, FC273B, FC500, GH810, GH506 |
| End gender 1 | Female |
| End Size 1 | 1.82 IN |
| End type 1 | Flanged |
| End type 2 | Line/Hose/Tube |
| Finish/plating | Zinc |
| Hose cut-off factor | 6.41 in |
| Item type | Fitting Assembly |
| Product Height | 2.94 in |
| Product Length/Depth | 9.5 in |
| Product Volume | 78.846 in³ |
| Product Width | 2.823 in |
| Thread sealant | No |
