Danfoss

259-2091-4-4

This product has been discontinued and is no longer available. At this time, there is no direct replacement product.

The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

Tools

Characteristic	Value	Description
Angle (shape)		Tee
Brand		Danfoss
Certification(s)		SAE 140425
End gender 1		Female
End gender 2		Female
End Gender 3		Male
End Size 1		1/4 IN
End Size 2		1/4 IN
End Size 3		1/4 IN
End type 1		NPTF
End type 2		NPTF
End Type 3		NPTF
Feature		Dura-Kote plating for superior corrosion resistanceDesign flexibility with hundreds of styles to choose fromHigher operating pressures above SAE standards
Finish/plating		DURA-KOTE
Hex Size 1		.75 in

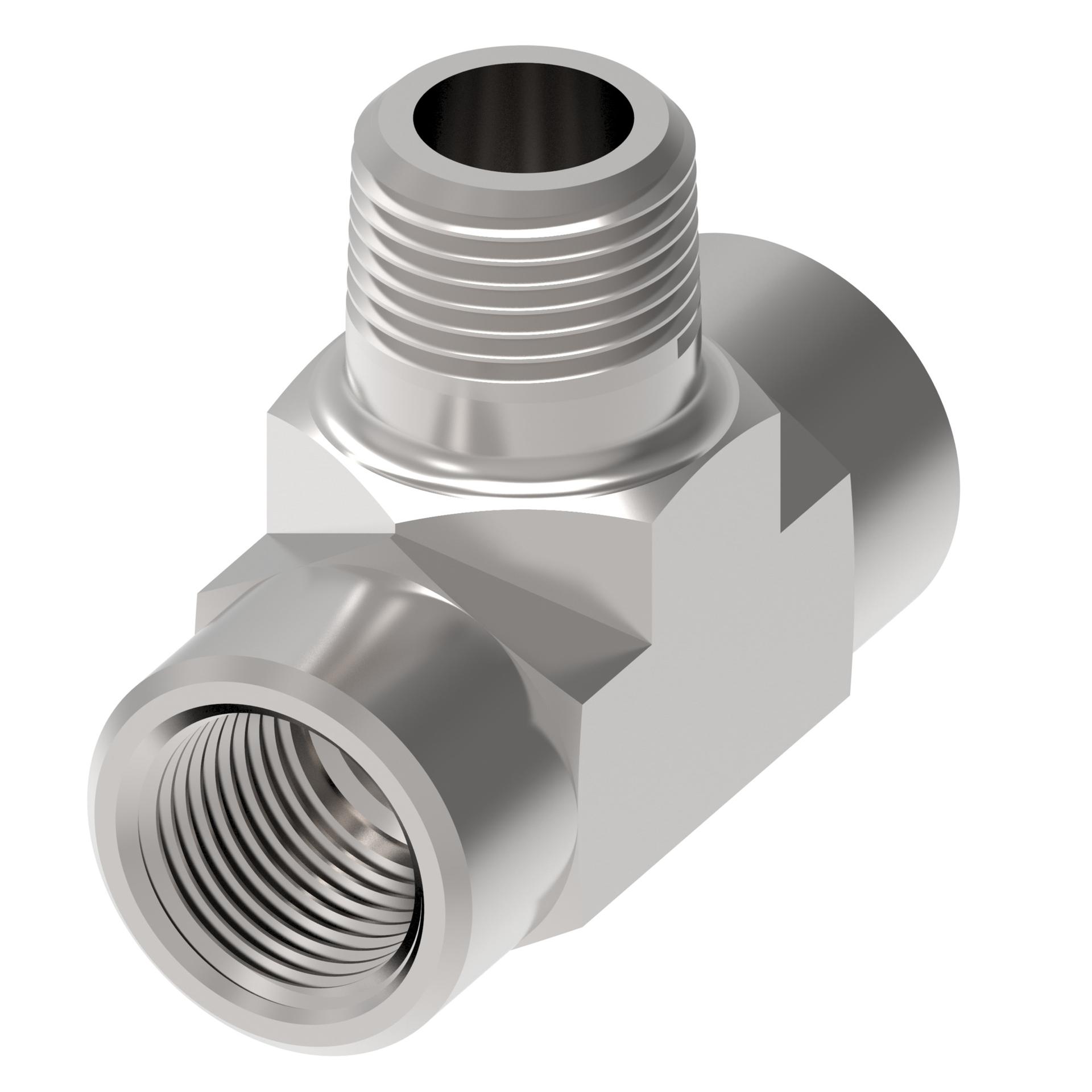

Item type		NPTF Female/NPTF Female/NPTF Male Tee Adapter
Packaged Height		5 in
Packaged Length		8 in
Packaged Volume		160 in³
Packaged Weight		1.2 lb
Packaged Width		4 in
Product Height		1.46 in
Product Length/Depth		1.76 in
Product material		Stainless Steel
Product Type		Tee/Y Adapters
Product Volume		.514 in³
Product Weight		.2 lb
Product Width		.2 in
Sub-brand		None
Thread sealant		No
Thread Size 1		1/4-18
Thread Size 2		1/4-18
Thread Size 3		1/4-18
Trade Name		2091 Series
Tube OD 1		.38 in
Tube OD 2		.38 in
Tube OD 3		.28 in
UPC		678146182210
Working temperature - max		400 °F
Working temperature - min		-65 °F
