Aeroquip by Danfoss
4-412-16-16
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.

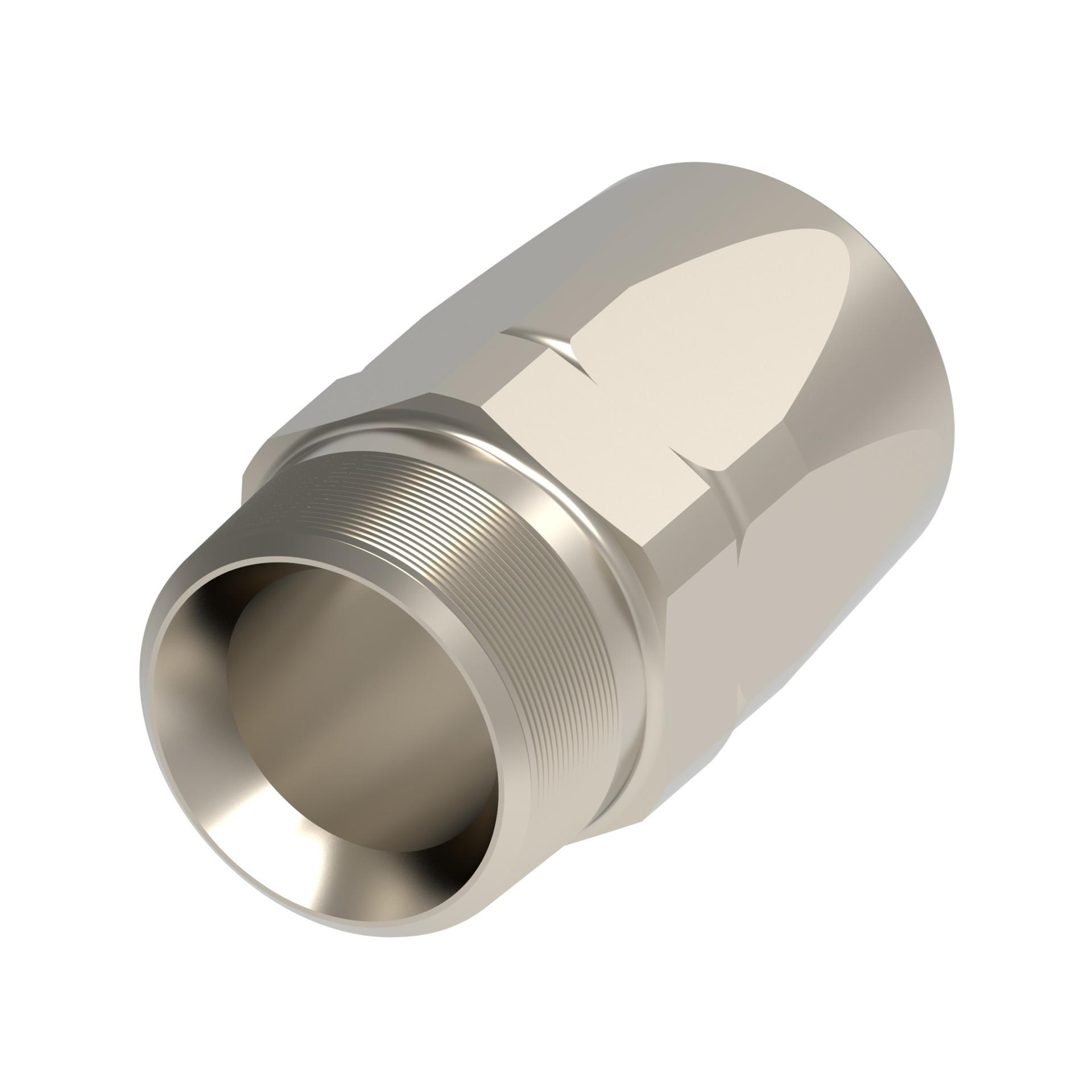

4-412-16-16
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | Straight | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 1 in | |
| Compatible hoses | 2651 | |
| End gender 1 | Male | |
| End Size 1 | 1 IN | |
| End type 1 | NPTF | |
| End type 2 | Line/Hose/Tube | |
| Feature | Fit for wide range of applicationsDurable and dependableCut assembly times and boost production | |
| Hex Size 1 | 1.38 in | |
| Hex Size 2 | 1.44 in | |
| Hose cut-off factor | 1.72 in | |
| Hose dash size | -16 | |
| Inside diameter | .82 in | |
| Item type | Fitting Assembly | |
| Product Height | 1.66 in | |
| Product Length/Depth | 2.99 in | |
| Product material | Monel | |
| Product Type | Reusable Hose Fittings | |
| Product Volume | 7.147 in³ | |
| Product Weight | .64 lb | |
| Product Width | 1.44 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Thread Size 1 | 1-11 1/2 | |
| Trade Name | 4402 Series |
