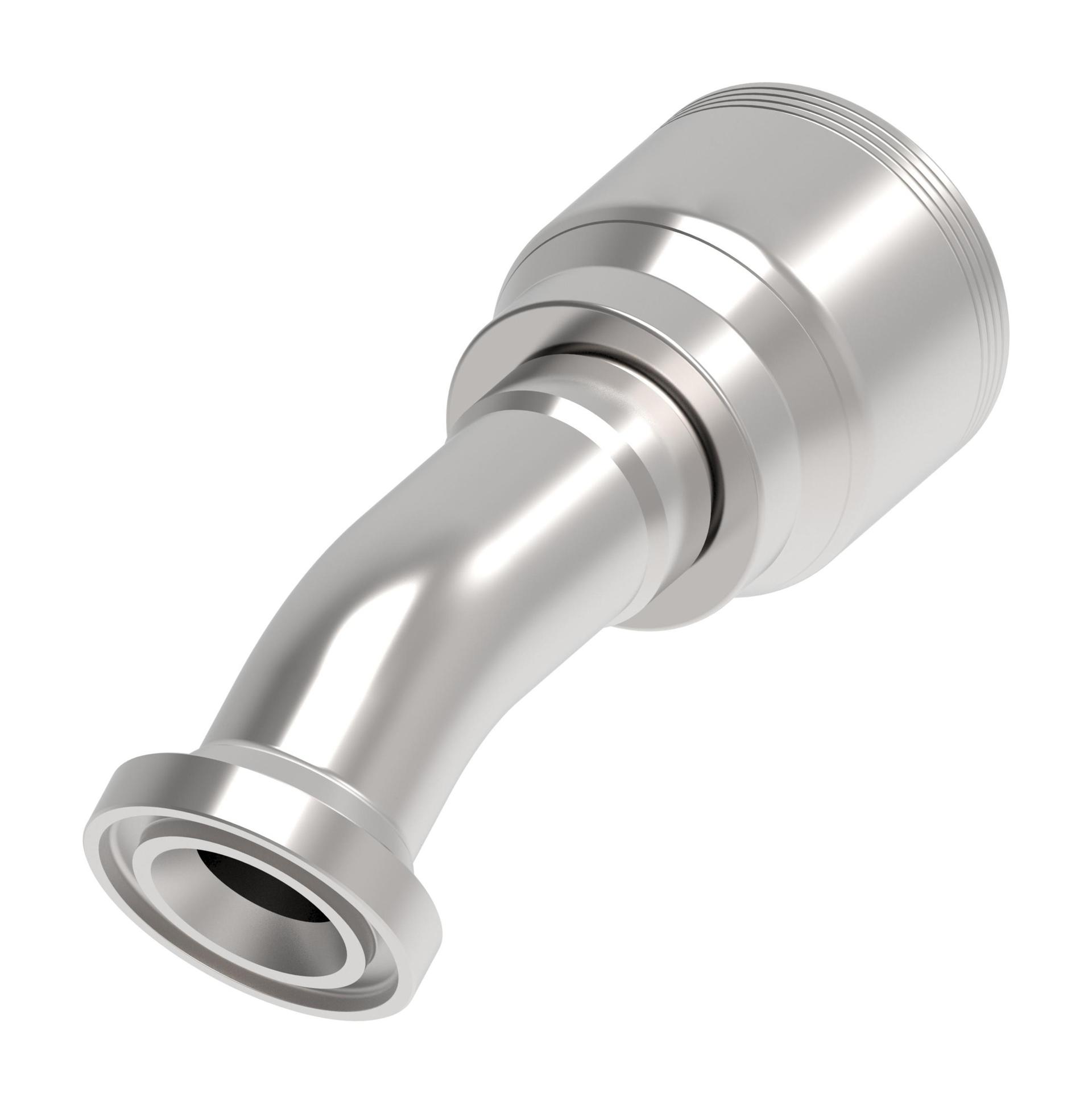

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 5.420 |
| A dimension MM | 137.700 |
| Angle shape | 30 Degree |
| Compatible hose ID IN | 1.000 |
| Construction Style | Crimp |
| Drop dimension IN | 0.169 |
| Drop dimension MM | 4.30 |
| End Type 1 | Split flange code 61 |
| End size 1 | -16 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 3.850 |
| Hose cut off factor MM | 97.900 |
| Inside diameter IN | 0.7600 |
| Inside diameter MM | 19.2000 |
| Product height in | 2.680 |
| Product height mm | 68.072 |
| Product length in | 5.660 |
| Product length mm | 143.764 |
| Product material | Carbon steel |
| Product width in | 2.084 |
| Product width mm | 52.933 mm |
| Thread sealant | No |
| Working pressure max bar | 345 |
| Working pressure max psi | 5000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 813688028255 |
