Synflex by Danfoss

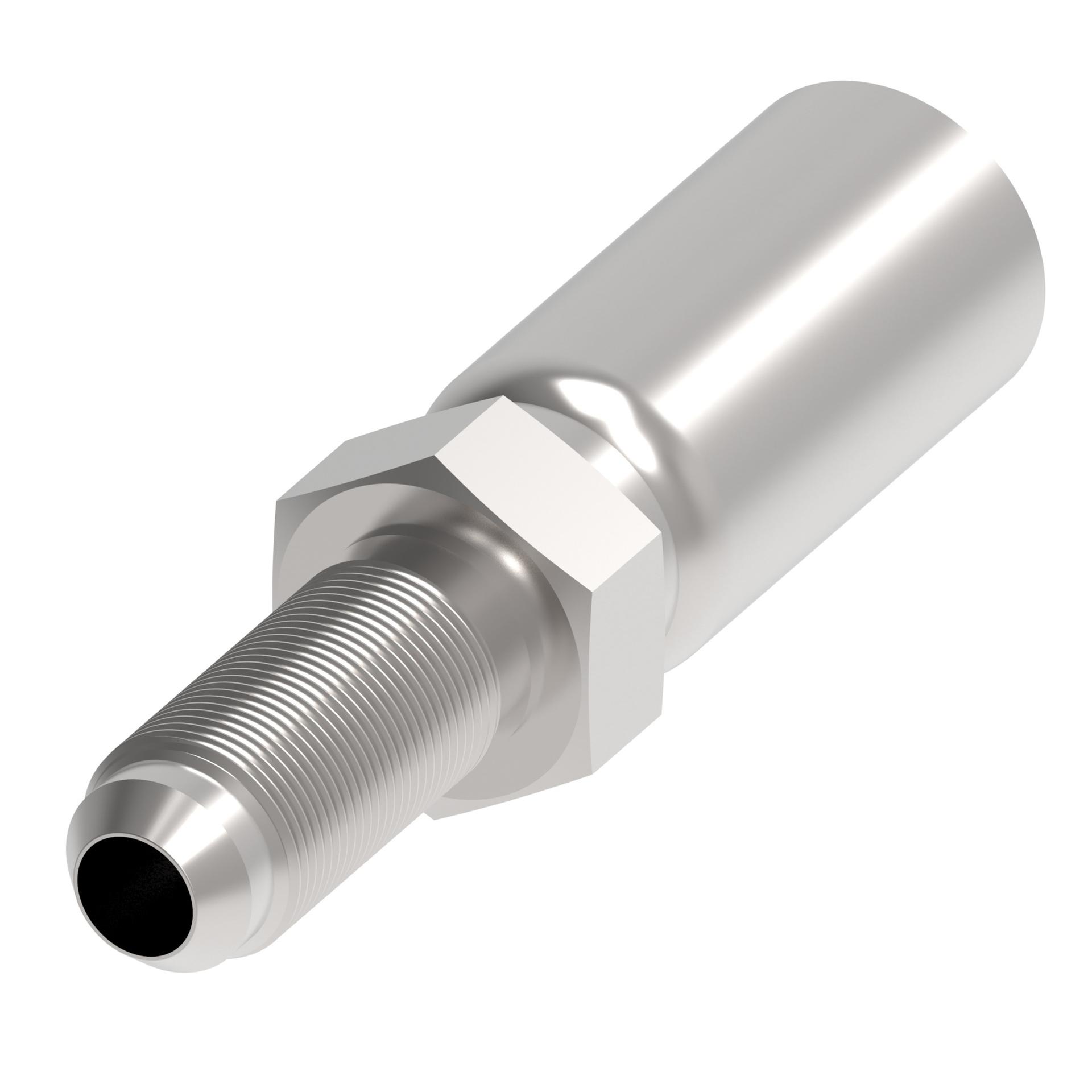

90306-0650H0-0
This product has been discontinued.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
If you're looking for a similar product, you can check out other options within the same product type by visiting the product type page.: Thermoplastic fittings
Recommended replacement: 4TA6CB6
90306-0650H0-0
Product specifications
Characteristic | Value |
|---|---|
| Angle (shape) | Straight |
| Brand | Synflex by Danfoss |
| Compatible hoses | 3130, 37AL, 3800, 3840 |
| Construction style | Swage |
| End gender 1 | Male |
| End Size 1 | 9/16 IN |
| End type 1 | SAE |
| End type 2 | Line/Hose/Tube |
| Feature | Optimized inventory to mix and match components Dura-Kote plating for superior corrosion resistance Wide range of styles, configurations |
| Inside diameter | .28 in |
| Item type | Fitting Assembly |
| Outside diameter | .81 in |
| Product Type | Swage Hose Fittings |
| Sub-brand | None |
| Thread sealant | No |
| Thread Size 1 | 9/16-18 |
| Trade Name | 903 Series |
