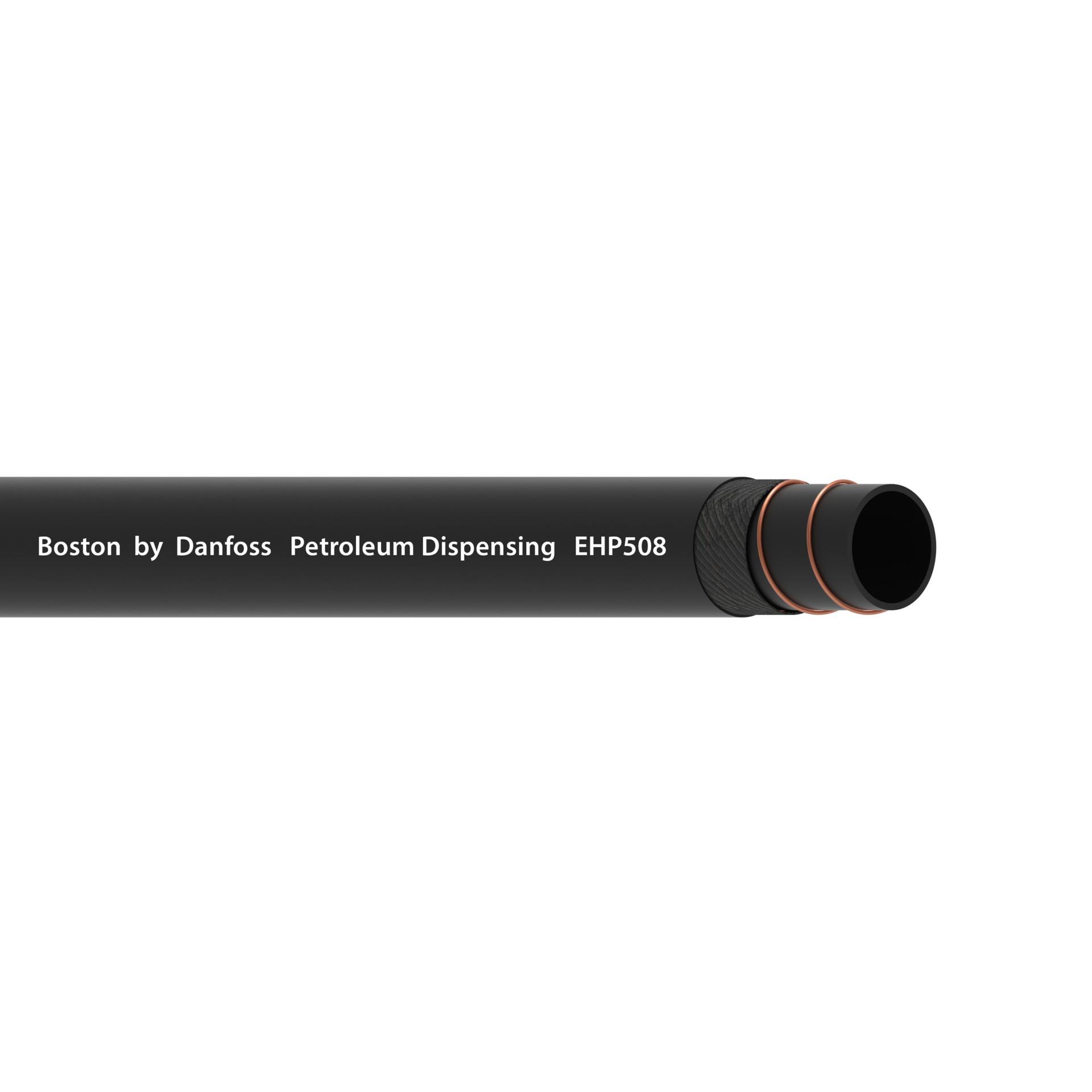

Boston by Danfoss
EHP508-12BK-M6
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
EHP508-12BK-M6
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Abrasion resistance | Standard | |
| Application | For all types of gasoline dispensing applications (regular, premium gasoline and diesel). | |
| Bend radius - min | 95 in | |
| Brand | Boston by Danfoss | |
| Burst pressure | 696 Psi | |
| Color | Black | |
| Construction | 1 Ply Braid | |
| Cover material | Synthetic Rubber | |
| Dash size | -12 | |
| Feature | A solution for every hose needIndustry leader since 1870Designed for safety and reliability | |
| Inside diameter | 19 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | 29 in | |
| Product Height | 29 in | |
| Product Length/Depth | 20 ft | |
| Product Type | Industrial Hose | |
| Product Volume | 116.806 ft³ | |
| Product Weight | 2850 lb | |
| Product Width | 29 in | |
| Reinforcement material | High-tensile synthetic textile and anti-static copper wire | |
| Sub-brand | None | |
| Trade Name | EHP508 Series | |
| Tube material | Nitrile | |
| Tube wall thickness | 6 in | |
| Working pressure | 232 Psi | |
| Working temperature - max | 131 °F | |
| Working temperature - min | -22 °F |
