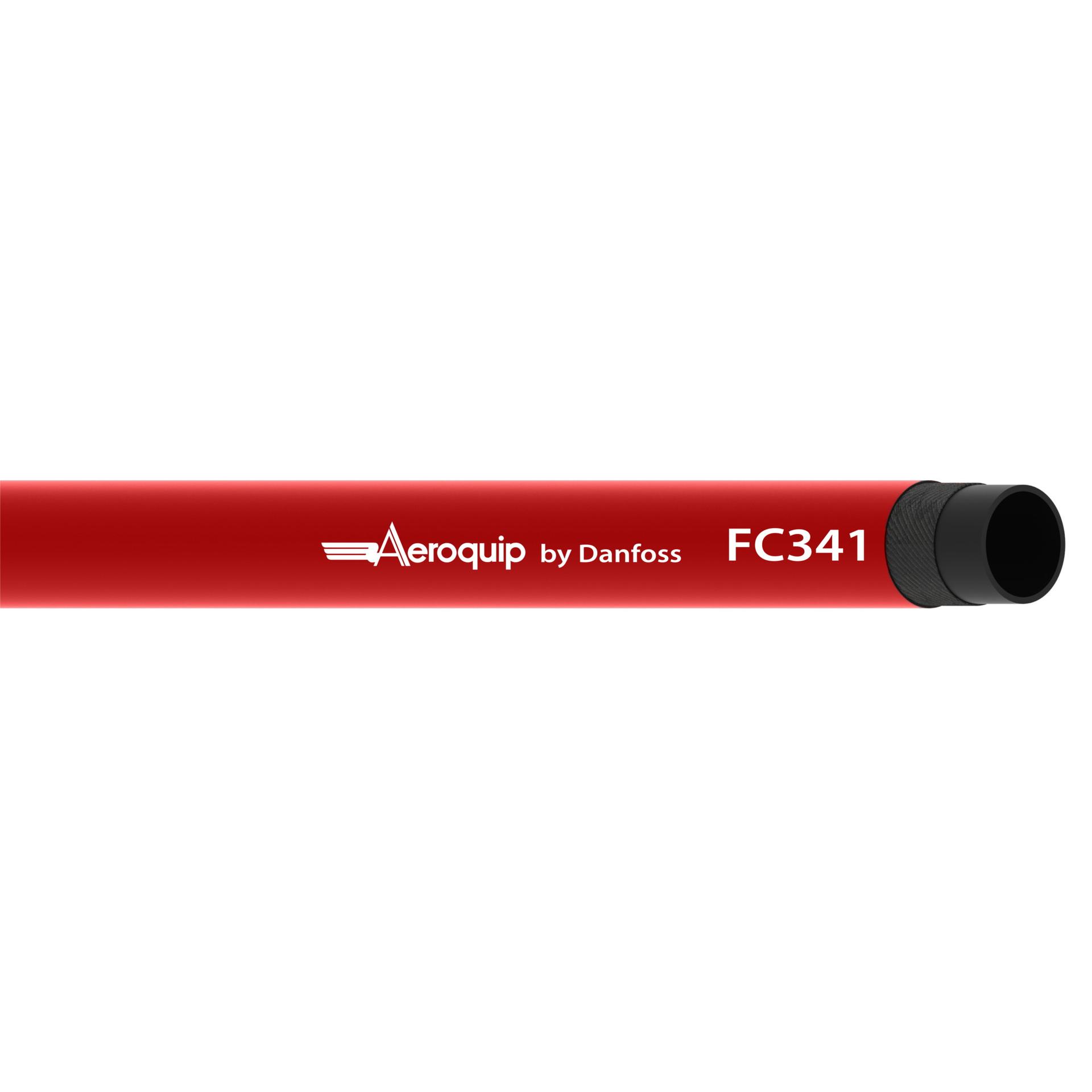

Aeroquip by Danfoss
FC341-04
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FC341-04
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Application | Low pressure air. | |
| Bend radius - min | 7 in | |
| Brand | Aeroquip by Danfoss | |
| Burst pressure | 720 Psi | |
| Color | Red | |
| Conductivity | Conductive | |
| Construction | 1 Ply Spiral | |
| Dash size | -4 | |
| Feature | Highly abrasion resistant coverPrevents absorption of most oils and fluids2X lighter than equivalent wire braided rubber hoses | |
| Inside diameter | .25 in | |
| Lay line style | Ink Transfer | |
| Outside diameter | .31 in | |
| Package form | Bulk | |
| Product Height | .31 in | |
| Product Length/Depth | 1 ft | |
| Product Type | Thermoplastic Hydraulic Hoses | |
| Product Volume | 1.153 in³ | |
| Product Weight | .01 lb | |
| Product Width | .31 in | |
| Reinforcement material | None | |
| Sub-brand | None | |
| Trade Name | FC341 Series | |
| Tube material | Nylon | |
| Tube wall thickness | .75 in | |
| UPC | 678146083395 | |
| Working pressure | 180 Psi | |
| Working temperature - max | 302 °F | |
| Working temperature - min | -40 °F |
