Aeroquip by Danfoss
FF9700-160-262
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FF9700-160-262
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Application | Internal support for marine hose subjected to vacuum conditions. | |
| Battery included | No | |
| Brand | Aeroquip by Danfoss | |
| Button quantity | 0 | |
| Compliance(s) | NAVSAE LTR SEA 56Y218/CFB Serial No. 657, DTD August 30, 1982 | |
| Feature | Designed for ease of use and reliabilityMade to lastInnovative safety features | |
| Inside diameter | 9.4 in | |

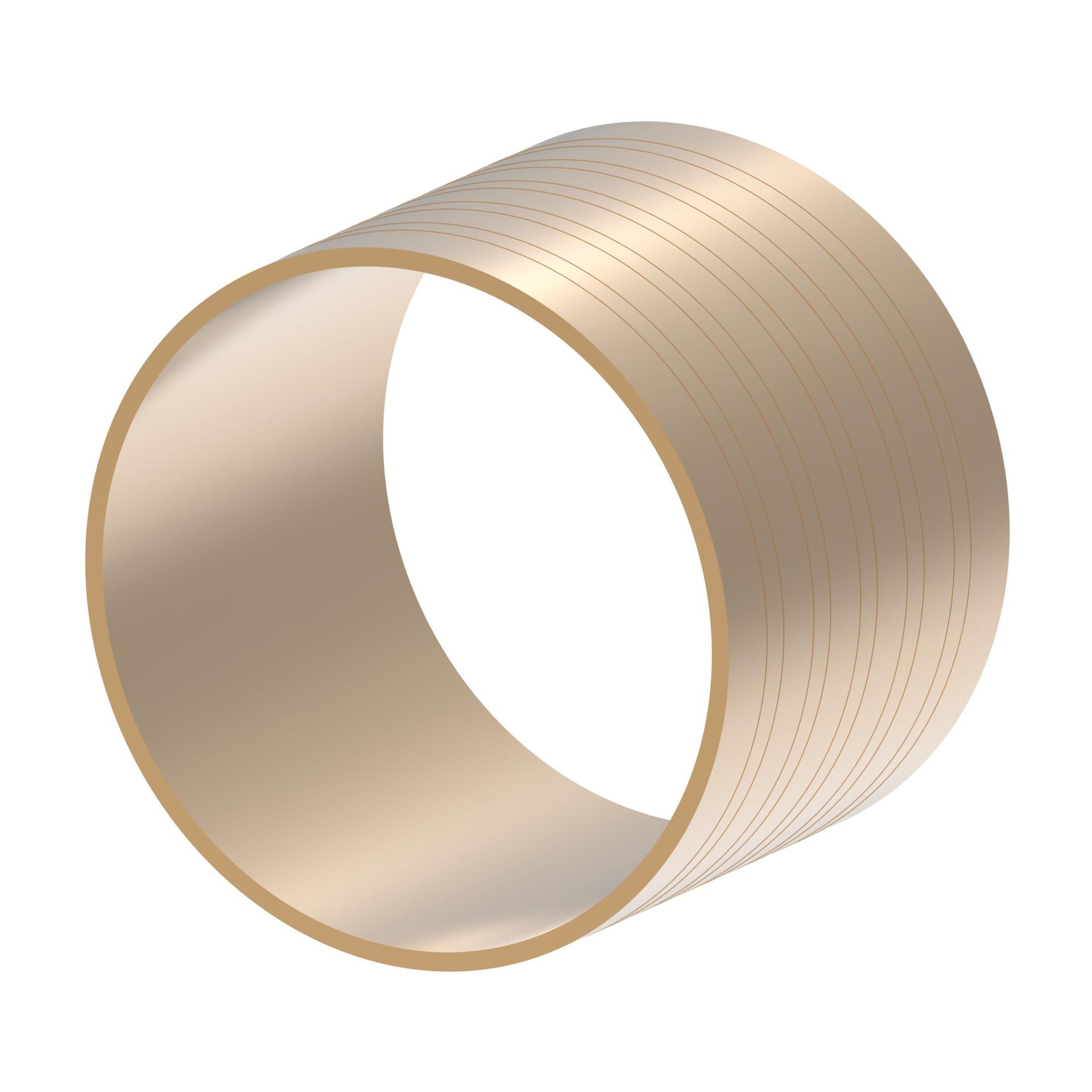

| Item type | Sleeve | |
| Outside diameter | 9.93 in | |
| Product Height | 9.93 in | |
| Product Length/Depth | 7.5 in | |
| Product material | Nickel-Aluminum Bronze Rings,Buna-B Bond | |
| Product Type | Marine Military | |
| Product Volume | 739.537 in³ | |
| Product Weight | .77 lb | |
| Product Width | 9.93 in | |
| Sub-brand | None | |
| Thickness | .25 in | |
| Trade Name | None | |
| Working temperature - max | 200 °F | |
| Working temperature - min | -40 °F |
