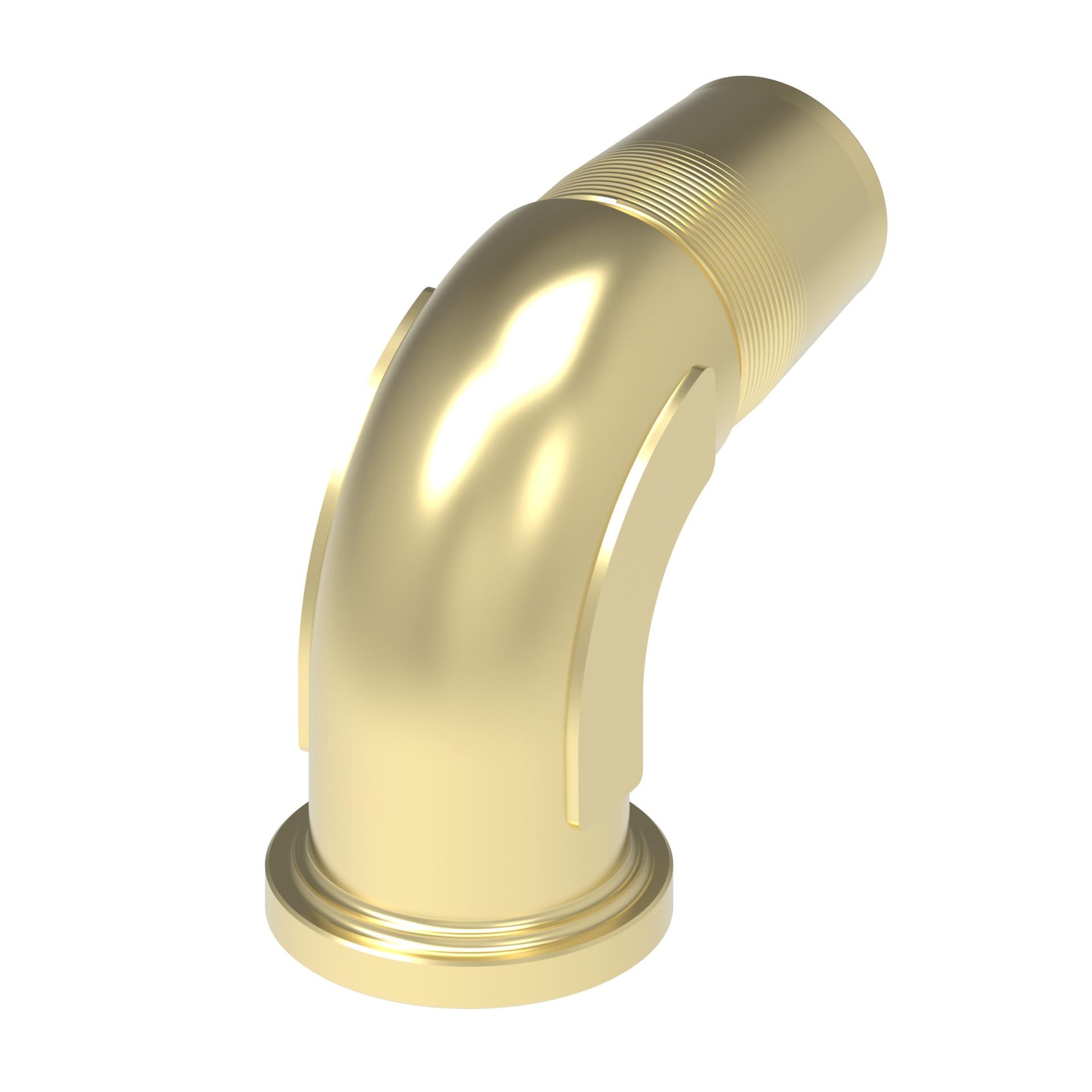

Aeroquip by Danfoss
FH9502-1220-188
This product has been discontinued and is no longer available. At this time, there is no direct replacement product.
The product is no longer available for purchase, but you can still find information about it, including service manuals, drawing etc.
FH9502-1220-188
Product specifications
Characteristic | Value | Description |
|---|---|---|
| Angle (shape) | 90 Degree | |
| Brand | Aeroquip by Danfoss | |
| Compatible hose ID | 1.25 in | |
| Compatible hoses | 302A, 2580, AE369, AE372, FC234 | |
| Construction style | Reusable | |
| Drop dimension | 2.56 | |
| End gender 2 | Female | |
| End Size 2 | 1 1/4 IN | |
| End type 1 | Flanged | |
| End type 2 | Line/Hose/Tube | |
| Feature | Maximum durability under harsh operating conditionsWide range of styles, configurationsInnovative designs for safety and reliability | |
| Hex Size 1 | 3.25 in | |
| Hose cut-off factor | 1.62 in | |
| Hose dash size | -20 | |
| Inside diameter | 1 in | |
| Item type | Fitting Assembly | |
| Product Height | 3.513 in | |
| Product Length/Depth | 4.92 in | |
| Product Type | Marine Military | |
| Product Volume | 67.062 in³ | |
| Product Width | 3.88 in | |
| Sub-brand | None | |
| Thread sealant | No | |
| Trade Name | FH9502 Series |
