Product specifications
Characteristic | Value | Description |
|---|---|---|
| Code title | PVM - REFER LONG DESCRIPTION | |
| DISPLACEMENT | 074 - REFER LONG DESCRIPTION | |
| VALVE PLATE | INDUSTRIAL (1800 r/min MAX) | |
| INPUT ROTATION | CLOCKWISE (RIGHTHAND) | |
| INPUT SHAFT | 10 - REFER LONG DESCRIPTION | |

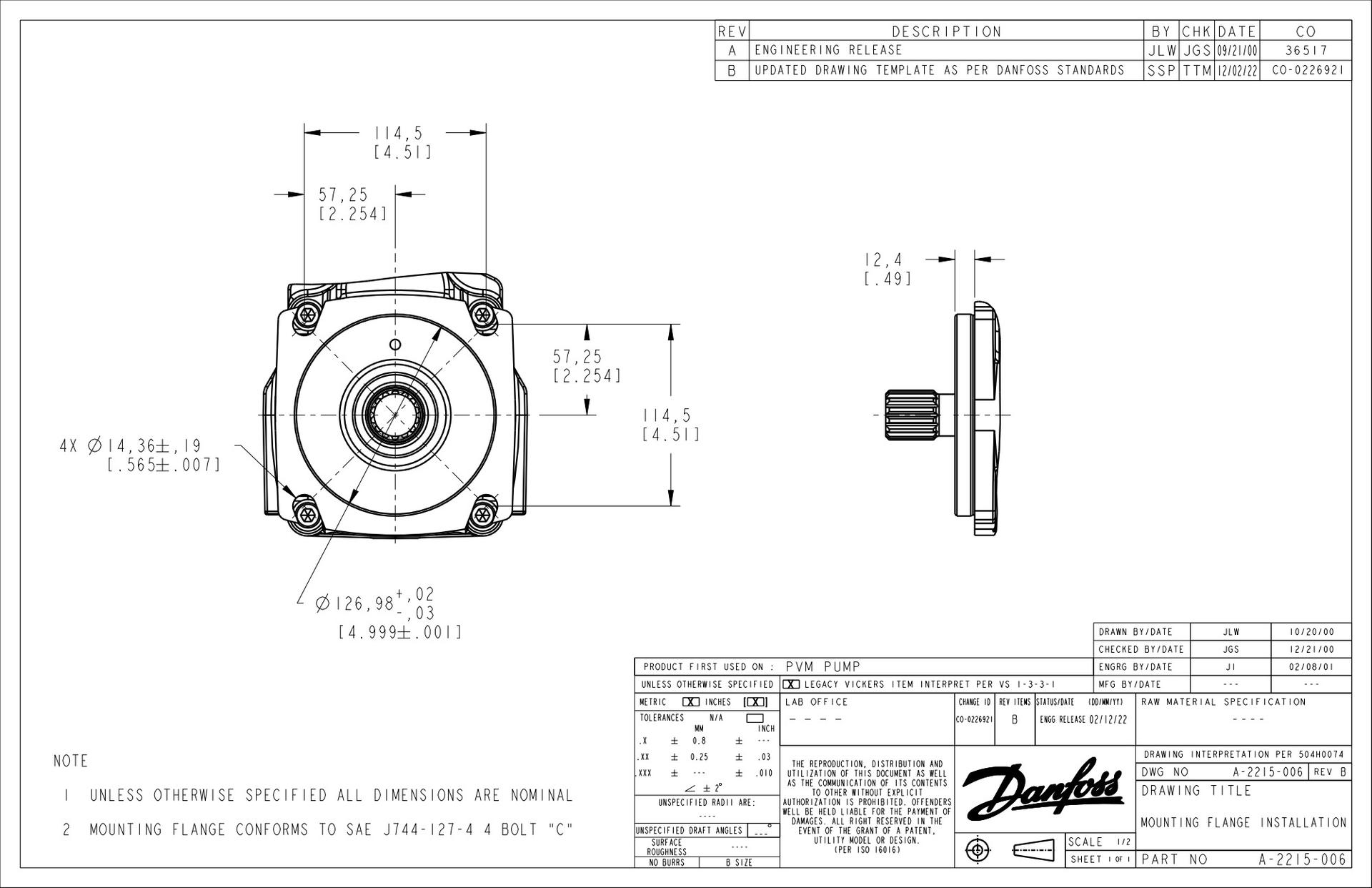

| Mounting Flange | G - REFER LONG DESCRIPTION | |
| MAIN PORT LOCATION | SIDE | |
| PORT OPTIONS | 2 - REFER LONG DESCRIPTION | |
| CONTROL | L - REFER LONG DESCRIPTION | |
| Pressure comp setting | 240±4 BAR [3480±58 LBF/IN2] | |
| FLOW COMP SETTING | 40±1 bar [580±14.5 lbf/in2] | |
| POWER CONTROL SETTING | 035 - REFER LONG DESCRIPTION | |
| AUXILIARY MOUNTING | NONE (NON-THROUGH DRIVE) | |
| Paint | BLACK [DEFAULT] | |
| DESIGN CODE | B | |
| DIFFERENTIATOR | - | |
| Pump special features | MARINE CERTIFICATION-ABS | |
| COMPENSATOR SPECIAL FEATURES | NONE | |
| CUSTOMER IDENTIFICATION | NONE | |
| IPM FRAME SIZE | PVM Code B 74cc Pump | |
| Model Code 1 | PVM074ER10GS2L240400350AB-MA00 |
