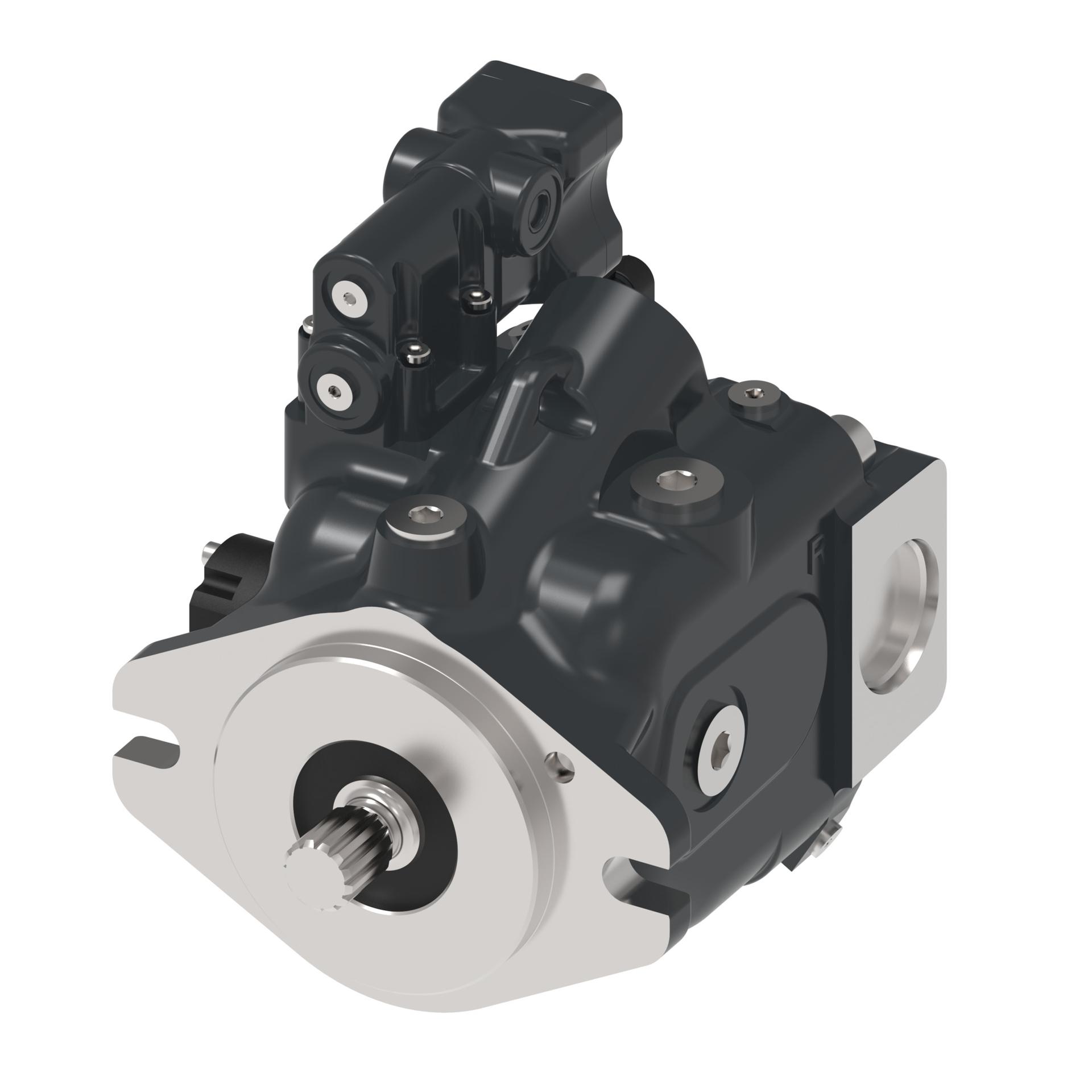

Danfoss X20 Open Circuit Piston Pumps 220 Series AEC028R09ABB1AA2839000002001000B01B (RIGHT)

AEC028R09ABB1AA1439000001001000B01B

222AK00013B


Tools

Product specifications

Characteristic
Value
Aux mount output shaftNO AUXILIARY MOUNT
BrandDanfoss
CODE TITLE220 SERIES MOBILE PISTON PUMP
CONTROL SPECIAL FEATURESNO CONTROL SPECIAL FEATURES
Controller typePCLS WSAE LS PORT (LEFT)
Design codeSECOND DESIGN
Diagnostic pressure ports.4375-20 SAE O-RING -PLUGGED
Displacement28.0 CM3R [1.71 IN3R]
Drain port size location.875-14 SAE O-RING -BOTTOM
Flow comp rpc setting[310-350 lbf/in2]
Front mounting input shaft2 BOLT B, 13T 16/32 PITCH
INPUT SHAFT ROTATIONRIGHT HAND ROTATION (CW)
Identification packagingMARK EATON PN AND MODEL CODE
MAXIMUM DISPLACEMENT OPTIONSTANDARD DISPLACEMENT
Main ports size locationSP IN1.6" OUT1"ORP
PRESSURE COMP SETTING[2150-2250 lbf/in2]
PUMP SPECIAL FEATURESNO PUMP SPECIAL FEATURES
PaintBLACK PER SPEC 209-13B
Secondary comp settingNO SECONDARY COMP SETTING
Shaft sealFLUOROCARBON RUBBER SHAFT SEAL
