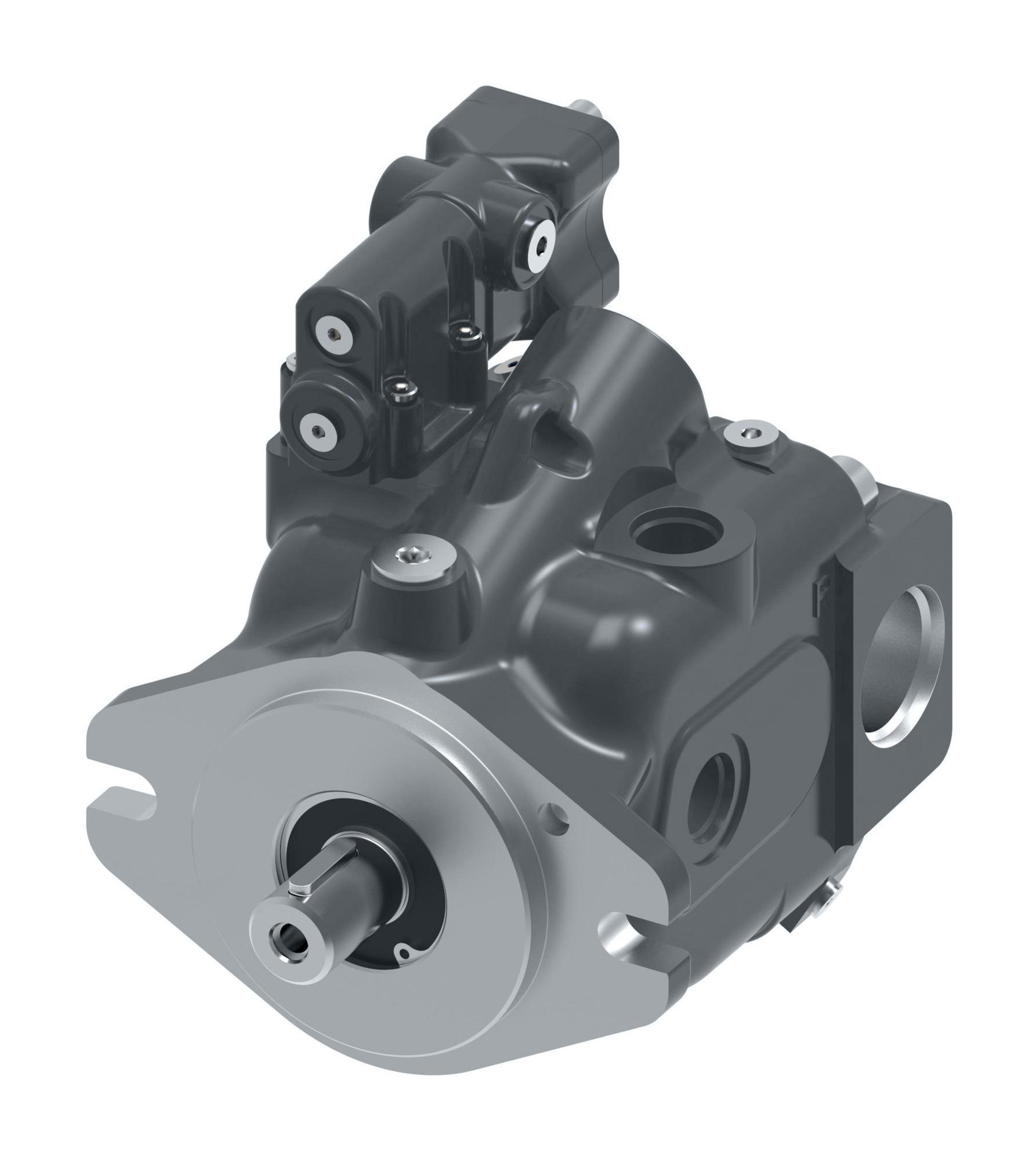

Danfoss X20 Open Circuit Piston Pumps 220 Series AEC028L31ABA1AA0214000A0200100CD01B (RIGHT)

AEC028R09ABA1AA2614000A0200100CD01B

222AK00074B


Tools

Product specifications

Characteristic
Value
Aux mount output shaftNO AUXILIARY MOUNT
BrandDanfoss
CODE TITLE220 SERIES MOBILE PISTON PUMP
CONTROL SPECIAL FEATURESBLEED DOWN ORIFICE
Controller typePCLS WSAE LS PORT (LEFT)
Design codeSECOND DESIGN
Diagnostic pressure ports.4375-20 SAE O-RING -PLUGGED
Displacement28.0 CM3R [1.71 IN3R]
Drain port size location.875-14 SAE O-RING -TOP
Flow comp rpc setting[180-220 lbf/in2]
Front mounting input shaft2 BOLT B, 13T 16/32 PITCH
INPUT SHAFT ROTATIONRIGHT HAND ROTATION (CW)
Identification packagingMARK EATON PN AND MODEL CODE
MAXIMUM DISPLACEMENT OPTIONEXT MANUAL ADJ (SET AT MAX)
Main ports size locationSP IN1.6" OUT1"ORP
PRESSURE COMP SETTING[2850-2950 lbf/in2]
PUMP SPECIAL FEATURESNO PUMP SPECIAL FEATURES
PaintBLUE PRIMER PER SPEC 209-13CD
Secondary comp settingNO SECONDARY COMP SETTING
Shaft sealFLUOROCARBON RUBBER SHAFT SEAL
