Product specifications
Characteristic | Value |
|---|---|
| Aux mount output shaft | NO AUXILIARY MOUNTING FEATURES |
| Brand | Danfoss |
| CONTROL SPECIAL FEATURES | BLEED DOWN ORIFICE |

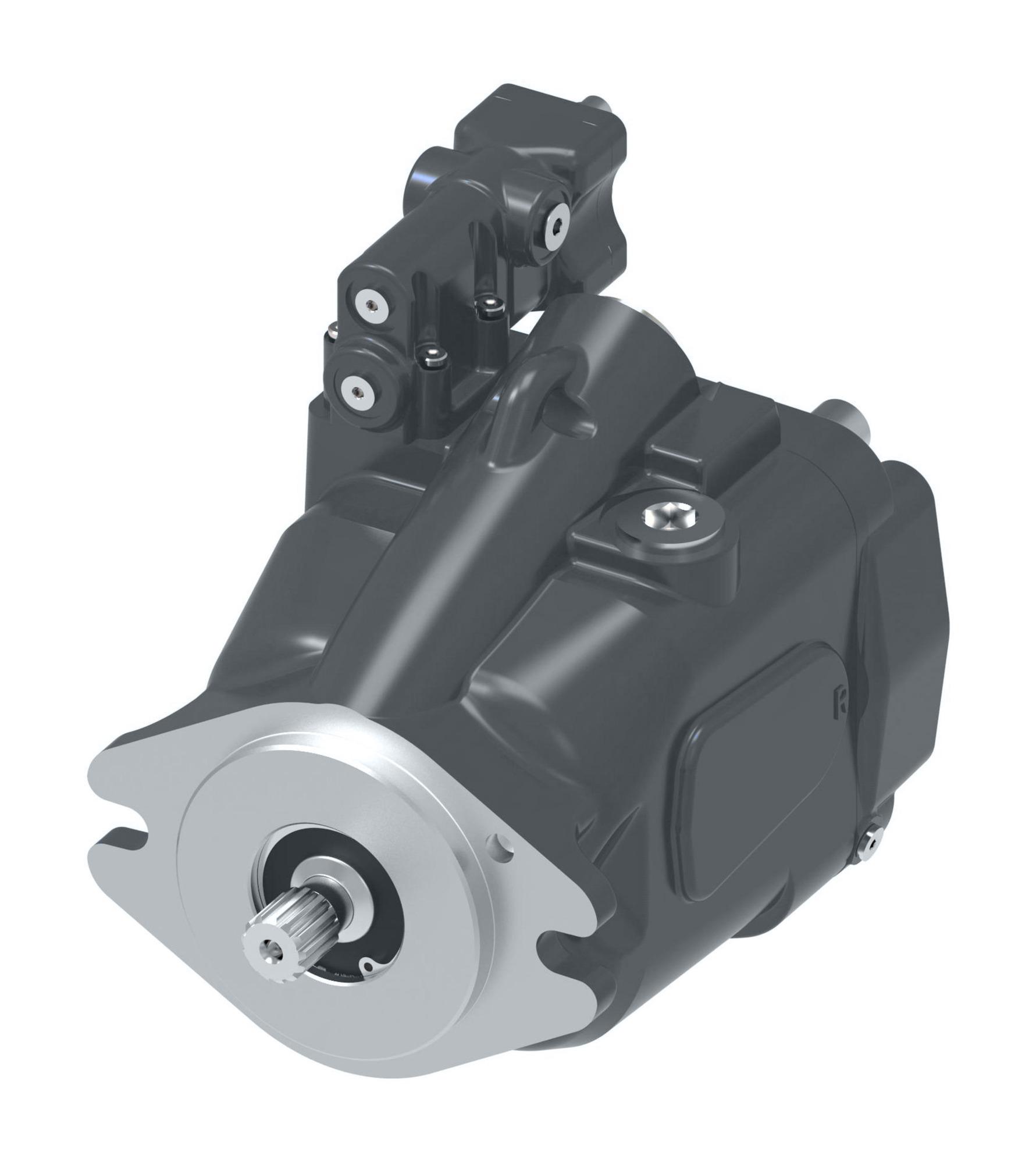

| Code title | 420 SERIES MOBILE PISTON PUMP |
| Controller type | PCLS W/SAE LS PORT (LEFT) |
| Design Code | THIRD DESIGN |
| Diagnostic pressure ports | NO DIAGNOSTIC PRESSURE PORTS |
| Displacement | 49.2 cm3/r [3.00 in3/r] |
| Drain port size location | 1.0625-12 SAE O-RING - TOP |
| Flow comp rpc setting | [180-220 lbf/in2] |
| Front mounting input shaft | 2 BOLT B, 13T 16/32 PITCH |
| INPUT SHAFT ROTATION | LEFT-HAND ROTATION (CCW) |
| Identification packaging | MARK EATON P/N AND MODEL CODE |
| MAXIMUM DISPLACEMENT OPTION | STANDARD DISPLACEMENT |
| Main ports size location | RP IN1.8" OUT1.3" ORP 41-62CC |
| PRESSURE COMP SETTING | [3000-3100 lbf/in2] |
| PUMP SPECIAL FEATURES | NO PUMP SPECIAL FEATURES |
| Paint | BLUE PRIMER PER SPEC 209-13CD |
| Shaft seal | STANDARD POLYACRYLATE SEAL |
| Torque control setting | NO TORQUE CONTROL OR SEC COMP |
