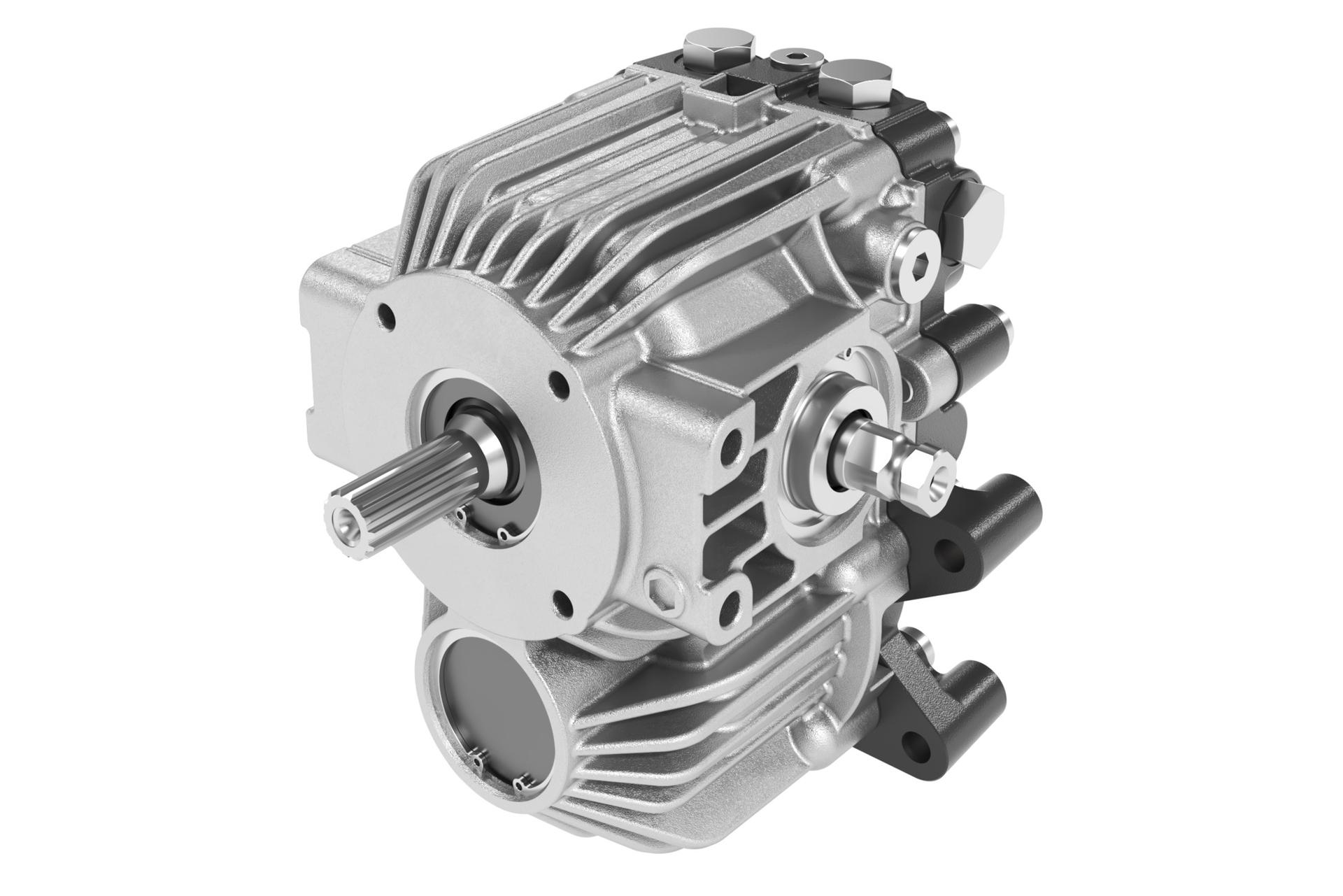

TRANSMISSION LDU 20 U-STYLE CCW

11198362

Model code: LDU-20D-L-A-R-S-KJ-B-A-N-07-N-23A-23N-NNN-NAN


Tools

Product specifications

Characteristic
Value
Description
A: Displacement & block type20D021 cc/rev displacement at maximum angle, Z-shaft, center sectionmounting
B: RotationLCounter-clockwise rotation
C: Valve plate pumpACP6.5 0.8 deg index valve plate
D: Control arm positionRRight side, from input shaft view
E: Control arm configurationS17mm Square
F: Pump shaft configuration (input shaft/PTO shaft)KJ20mm OD Keyed (Input) / JIS 20x18x1.0 (PTO)
H: Output shaft configurationBJIS 20x18x1.0
J: Centersection configurationADrain port : 9.8mm, Charge port : 9.8mm;
K: Charge pump displacementNNone
L: CHARGE RELIEF SETTING07Charge Pressure Relief Setting 7 bar
M: BYPASS VALVENNone
N: Check & relief valve (left-hand side viewing from housing)23AHigh Pressure Relief Valve 230 bar [3335 psi] w/ 0.85 mm orifice
P: Check & relief valve (right-hand side viewing from housing)23NHigh Pressure Relief Valve 230 bar [3335 psi]
SeriesLDULDU Product
Y: Special hardware featureNNNStandard
Z: Paint and nametagNANNo Paint (corrosion protection), Daikin Logo

General specifications

Characteristic
Value
Proposition 65Cancer and Reproductive Harm
