DHRCJ hydraulic joysticks

Danfoss Hydraulic Remote Control Joysticks are double-function valves that provide proportional control by disrupting a constant-pressure feed. They are typically used to activate a pair of spools, one associated with each axis.

Features and benefits

  • Many grip, body, switch, and pressure options
  • Excellent control thanks to good linearity, low leakage, and low hysteresis
  • Robust designs and high-quality materials that ensure reliability
  • Ergonomic construction that increases productivity

Applications

  • Backhoe loader
  • Excavator
  • Forklift
  • Skid steer
  • Special vehicles
  • Truck crane
  • Wheel loader
For certificates and 2D/3D drawings, please go to the Products tab. Find your product in the list, click on its image to bring up product details, then see the respective Documents and Visuals tabs.

Specifications

Product Max inlet pressure (bar) [psi] Max back pressure (bar) [psi] Rated flow (l/min) [US gal/min]
DHRCJ 70 [1,015] 3 [43] 20 [5.3]
DHRCD 50 [725] 3 [43] 10 each [2.6 each]
DHRCP double 100 [1,450] 3 [43] 20 [5.3]
DHRCP single 100 [1,450] 3 [43] 10 [2.6]
DHRCP push only 50 [725] 3 [43] 10 [2.6]
DHRCP mini 70 [1,015] 3 [43] 20 [5.3]

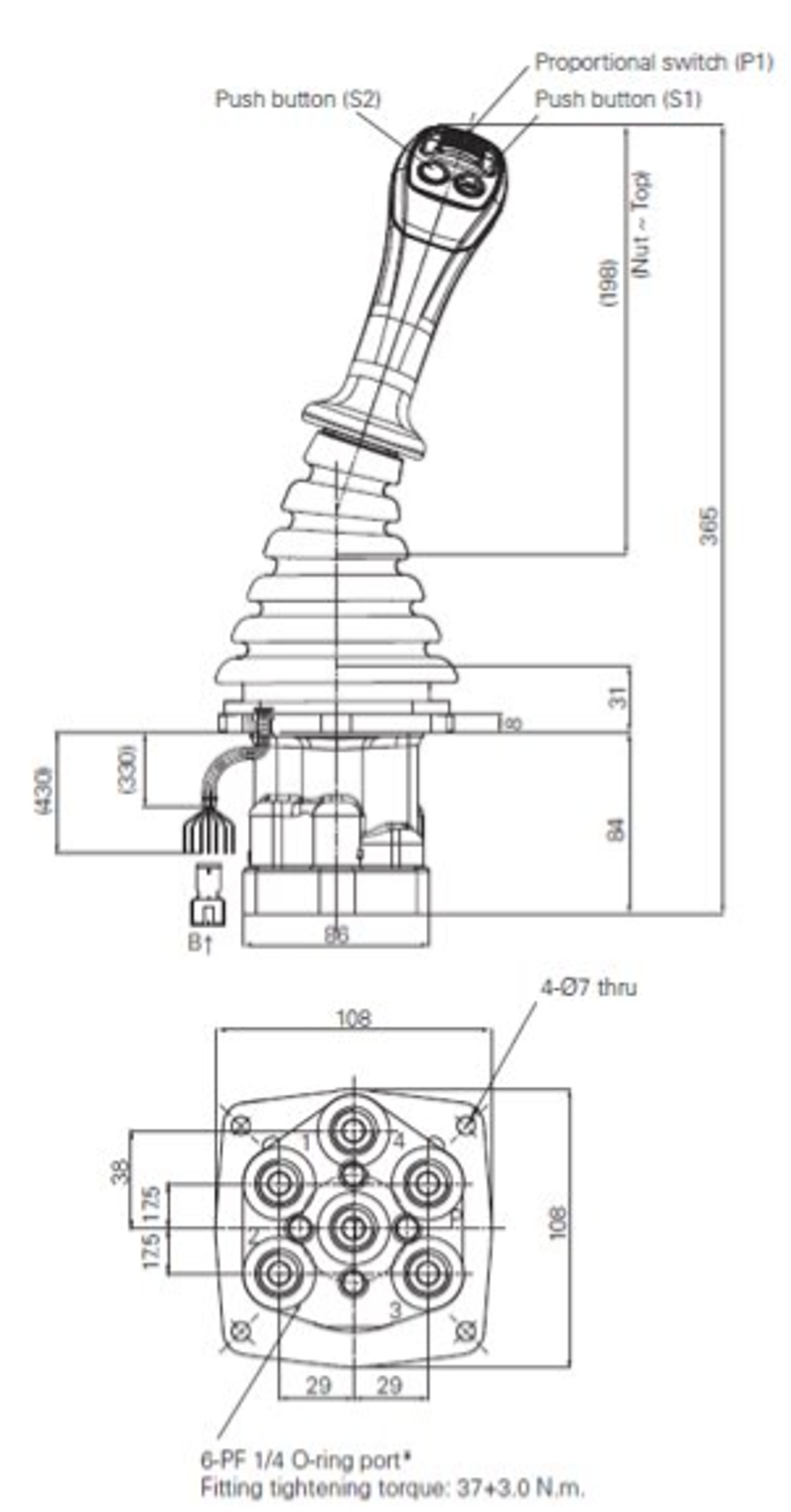

Dimensions in mm

Screenshot 2023 07 14 4.27.07 Pm
