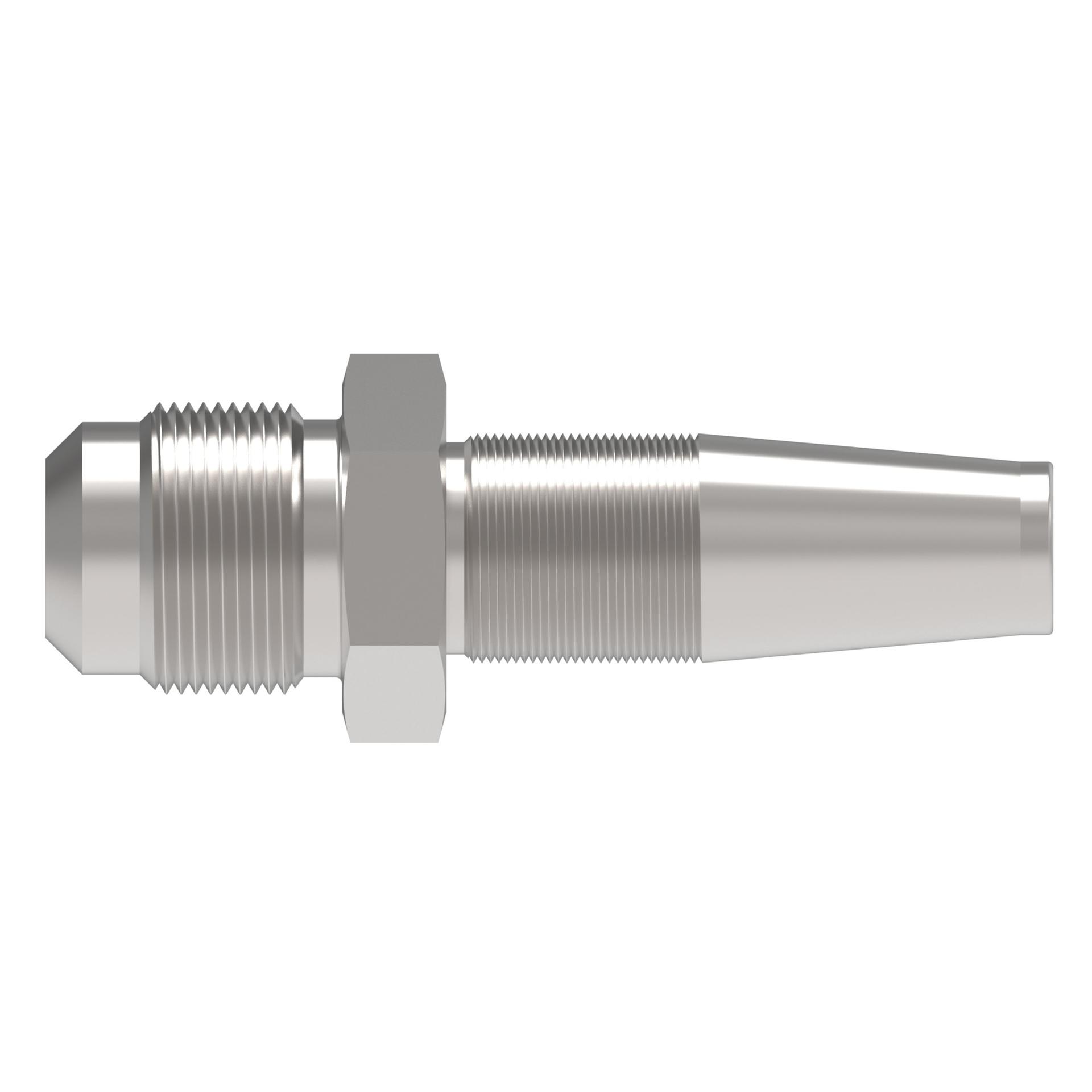

Hose Fittings 2402-S [RIGHT]

HOSE NIPPLE ASSY,5R/10,45D-M/10,CS,STR

2402-10S

Tools

Product specifications

Characteristic
Value
A dimension IN2.990
A dimension MM75.946
Angle shapeStraight
BrandAeroquip by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM16.002
Compatible hoses1503
Construction StyleReusable
End size 1-10
End size 2-10
End type 1Male 45 degree inverted flare
Finish platingDura-Kote
Hex size 1 IN1.000
Hex size 1 MM25.400
Hose cut off factor IN1.190
Hose cut off factor MM30.226
Hose size-10
Inside diameter IN0.515
Inside diameter MM13.081
Product height in1.000
Product height mm25.400
Product length in2.990
Product length mm75.946
Product materialCarbon steel
Product width in1.000
Product width mm25.400
Thread size 17/8-14 UNF
