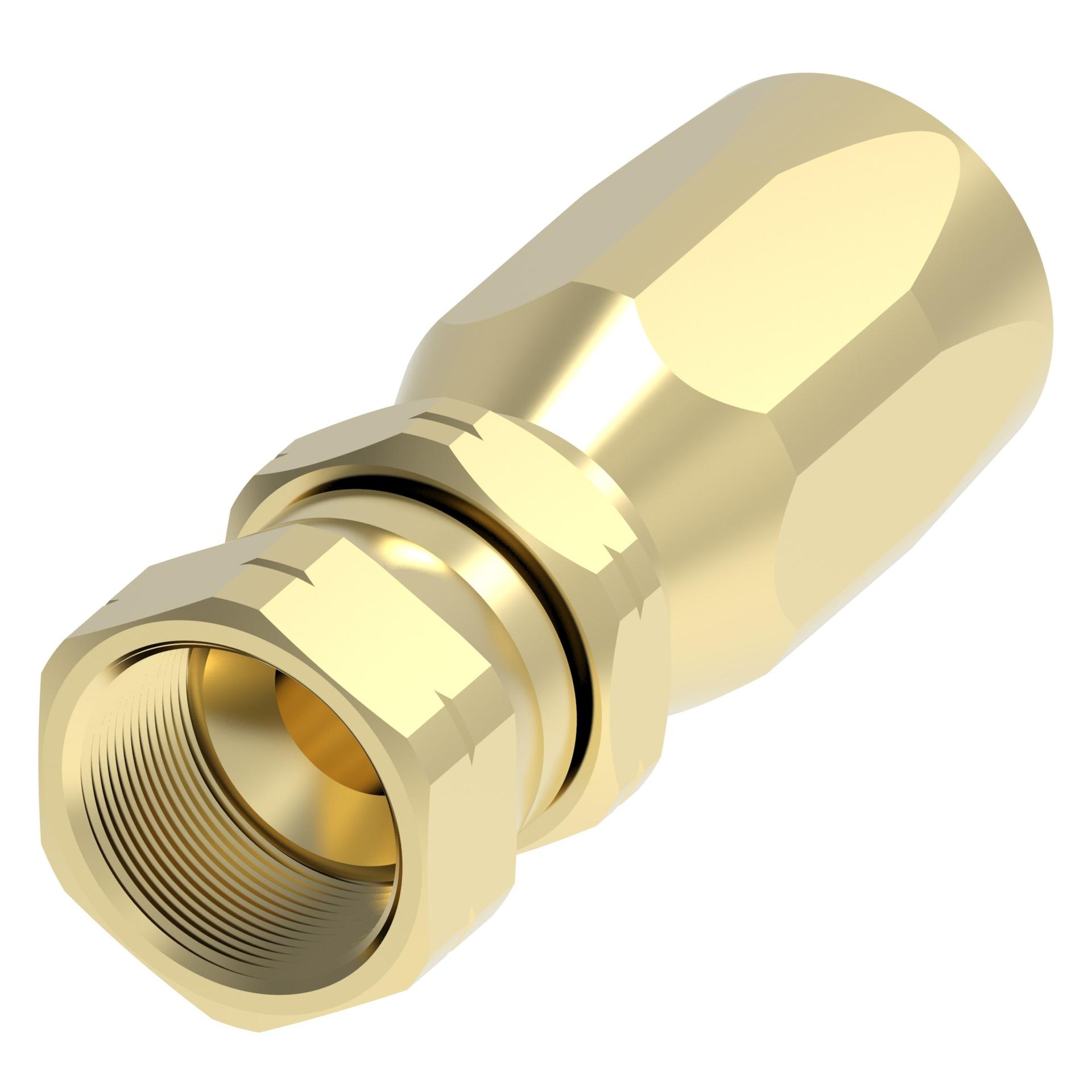

Hose Fittings 4401-B (RIGHT)

Ftng (reus), SAE 45

4401-8B

Catalog item:

4401-8B

Tools

Product specifications

Characteristic
Value
A dimension IN2.780
A dimension MM70.600
Angle shapeStraight
Backup hex size IN0.880
Backup hex size MM22.352
BrandDanfoss
Catalog Item4401-8B
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses150325802651 FC234FC300FC321FC350FC355FC802
Construction StyleReusable
End connection hex size IN0.880
End connection hex size MM22.352
End size 1-12
End type 1Female 45 degree swivel
Hose cut off factor IN1.620
Hose cut off factor MM41.148
Hose size-8
Inside diameter IN0.360
Inside diameter MM9.144
Product height in1.000
Product height mm25.400
Product length in2.780
Product length mm70.612
Product materialBrass
Product width in1.000
Product width mm25.400
Series100R5 Reusable
Thread size 13/4-16 UNF

General specifications

Characteristic
Value
EAN/UPC678146055095
