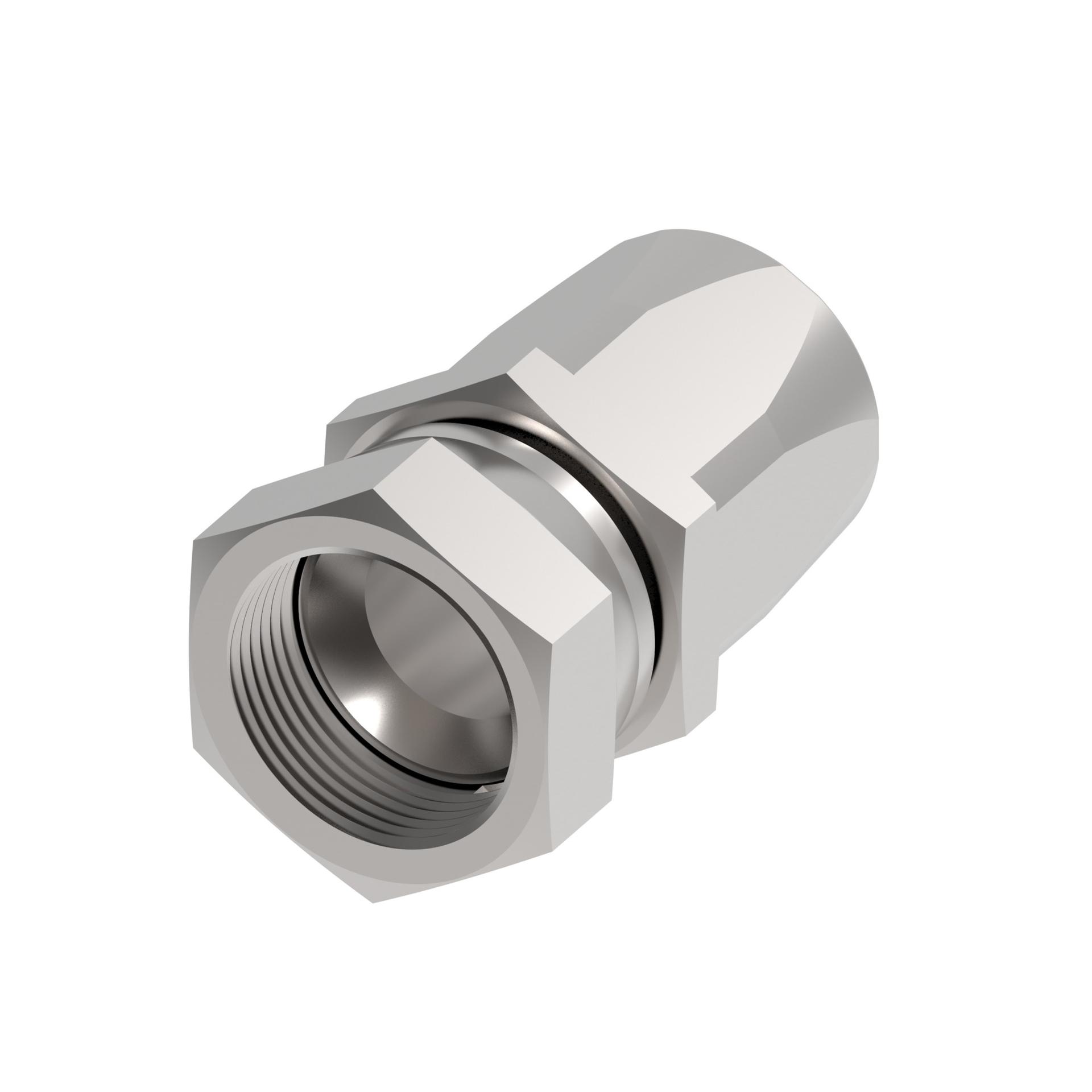

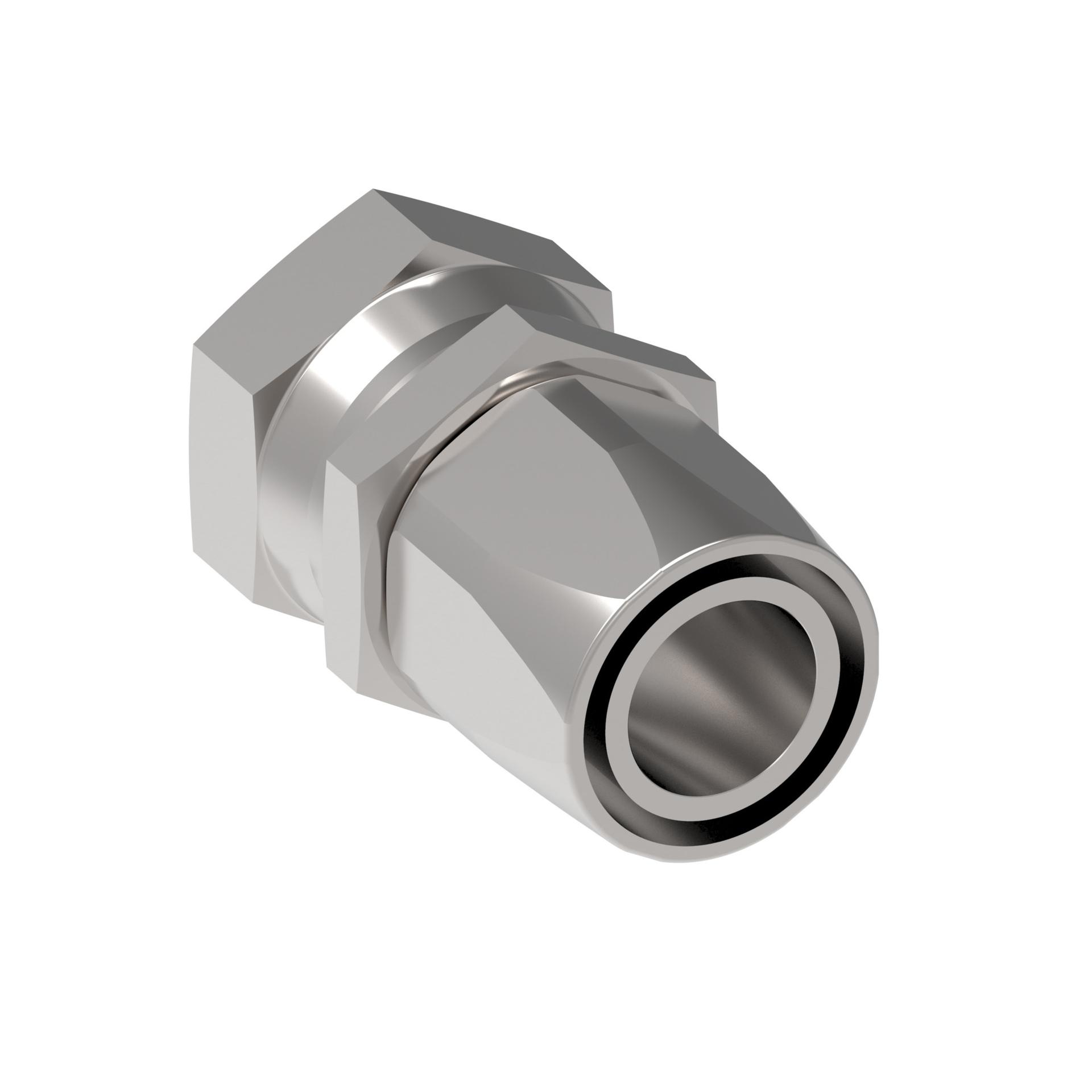

Hose Fittings 4411-20S [LEFT]

HOSE FTG, 5R/32, JIC-F/32, CS, STR

4411-32S

Tools

Product specifications

Characteristic
Value
A dimension IN4.390
A dimension MM111.500
Angle shapeStraight
Backup hex size IN2.880
Backup hex size MM73.150
BrandDanfoss
Catalog Item4411-32S
Compatible hose ID IN2.000
Construction StyleReusable
End connection hex size IN2.880
End connection hex size MM73.150
End size 1-32
End Type 1Female 37 degree swivel
Finish platingDura-Kote
Hose cut off factor IN2.550
Hose cut off factor MM64.800
Inside diameter IN1.750
Inside diameter MM44.400
Product height in2.880
Product height mm73.152
Product length in4.390
Product length mm111.506
Product materialCarbon steel
Product width in2.880
Product width mm73.152
Reusable socket hex MM63.500
Thread size 12 1/2-12 UN

General specifications

Characteristic
Value
EAN/UPC678146055217
