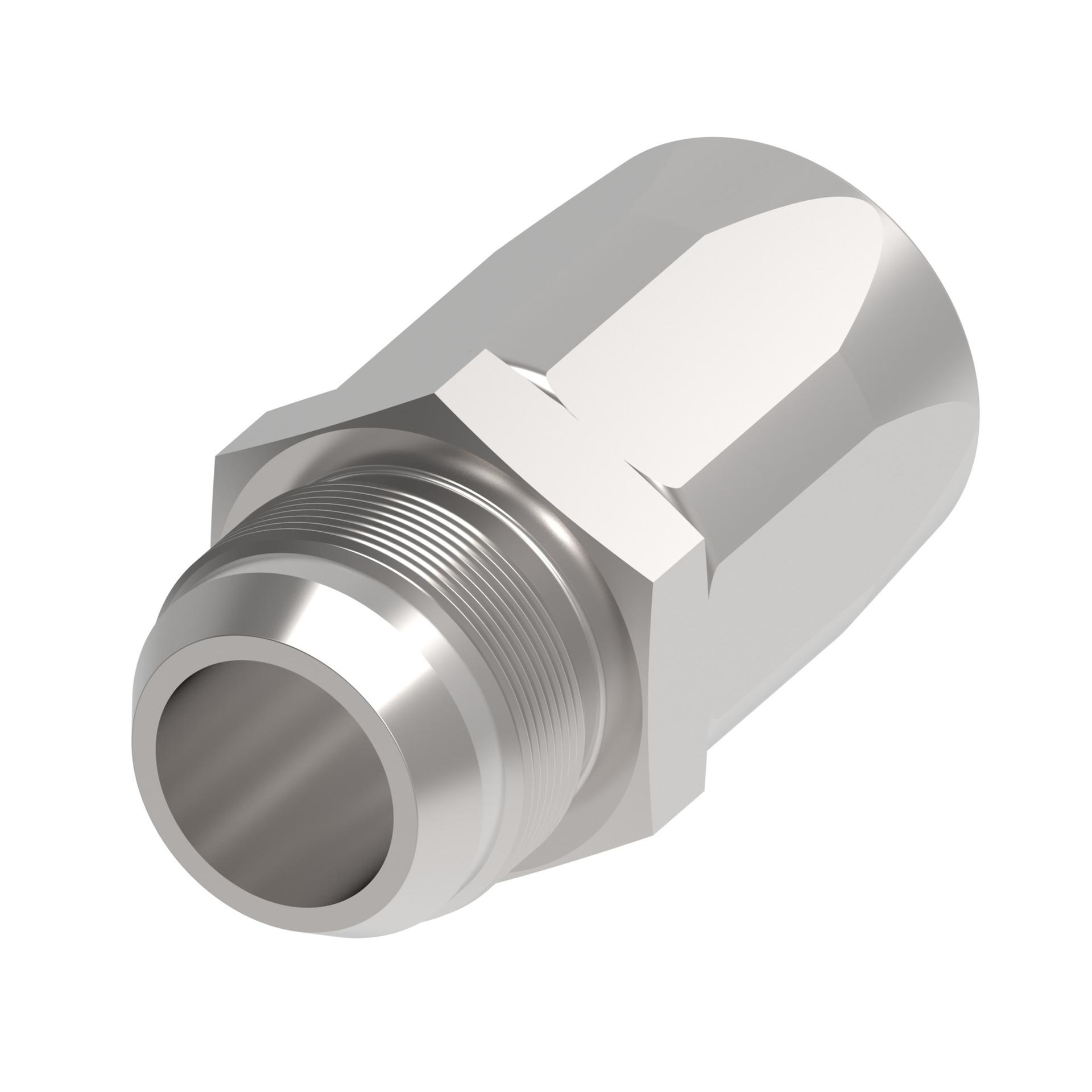

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 2.960 |
| A dimension MM | 75.180 |
| Angle shape | Straight |
| Compatible hose ID IN | 1.000 |
| Construction Style | Reusable |
| End size 1 | -16 |
| End Type 1 | Male 37 degree |
| Finish plating | Dura-Kote |
| Hex size 2 IN | 1.438 |
| Hex size 2 MM | 36.512 |
| Hose cut off factor IN | 1.800 |
| Hose cut off factor MM | 45.680 |
| Inside diameter IN | 0.820 |
| Inside diameter MM | 20.830 |
| Product height in | 1.730 |
| Product height mm | 43.942 |
| Product length in | 2.960 |
| Product length mm | 75.184 |
| Product material | Carbon steel |
| Product width in | 1.500 |
| Product width mm | 38.100 |
| Reusable socket hex MM | 36.512 |
| Thread size 1 | 1 5/16-12 UN |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146055408 |
