Hose Fittings FJ8732-S [CENTER]

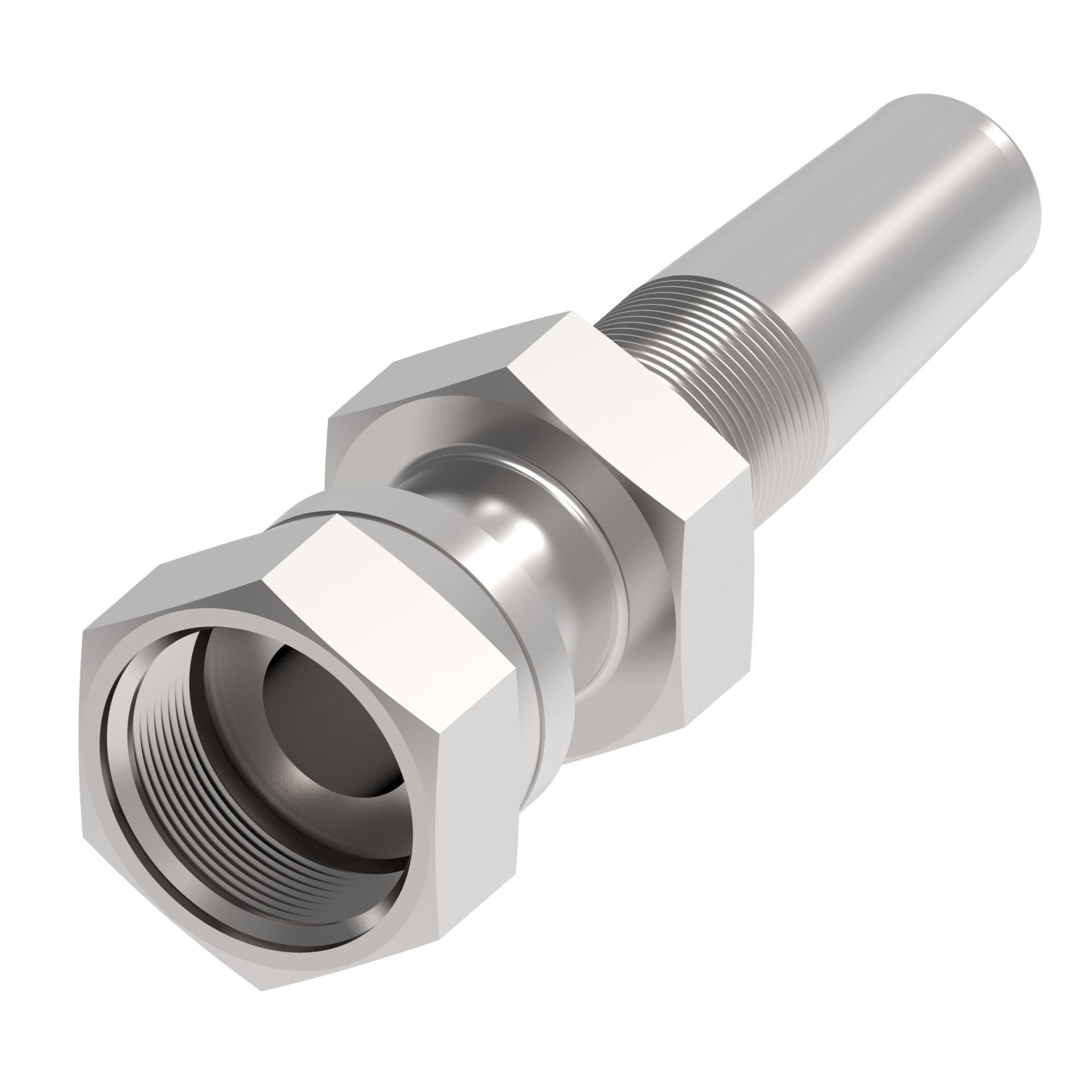

HOSE NIPPLE ASSY,HP/05,ORS-F/04,CS,STR

FJ8706-0405S

Tools

Product specifications

Characteristic
Value
A dimension IN2.020
A dimension MM51.300
Angle shapeStraight
Backup hex size IN0.669
Backup hex size MM17.000
BrandDanfoss
Catalog ItemFJ8706-0405S
Compatible hose ID IN0.310
Compatible hose ID MM7.874
Compatible hoses1503
Construction StyleReusable
End connection hex size IN0.708
End connection hex size MM18.000
End size 1-4
End Type 1Female ORFS swivel
Finish platingDura-Kote
Hose cut off factor IN0.820
Hose cut off factor MM21.000
Hose size-5
Inside diameter IN0.170
Inside diameter MM4.300
Product height in0.800
Product height mm20.320
Product length in2.340
Product length mm59.436
Product materialCarbon steel
Product width in0.690
Product width mm17.526
Thread size 19/16-18 UNF
