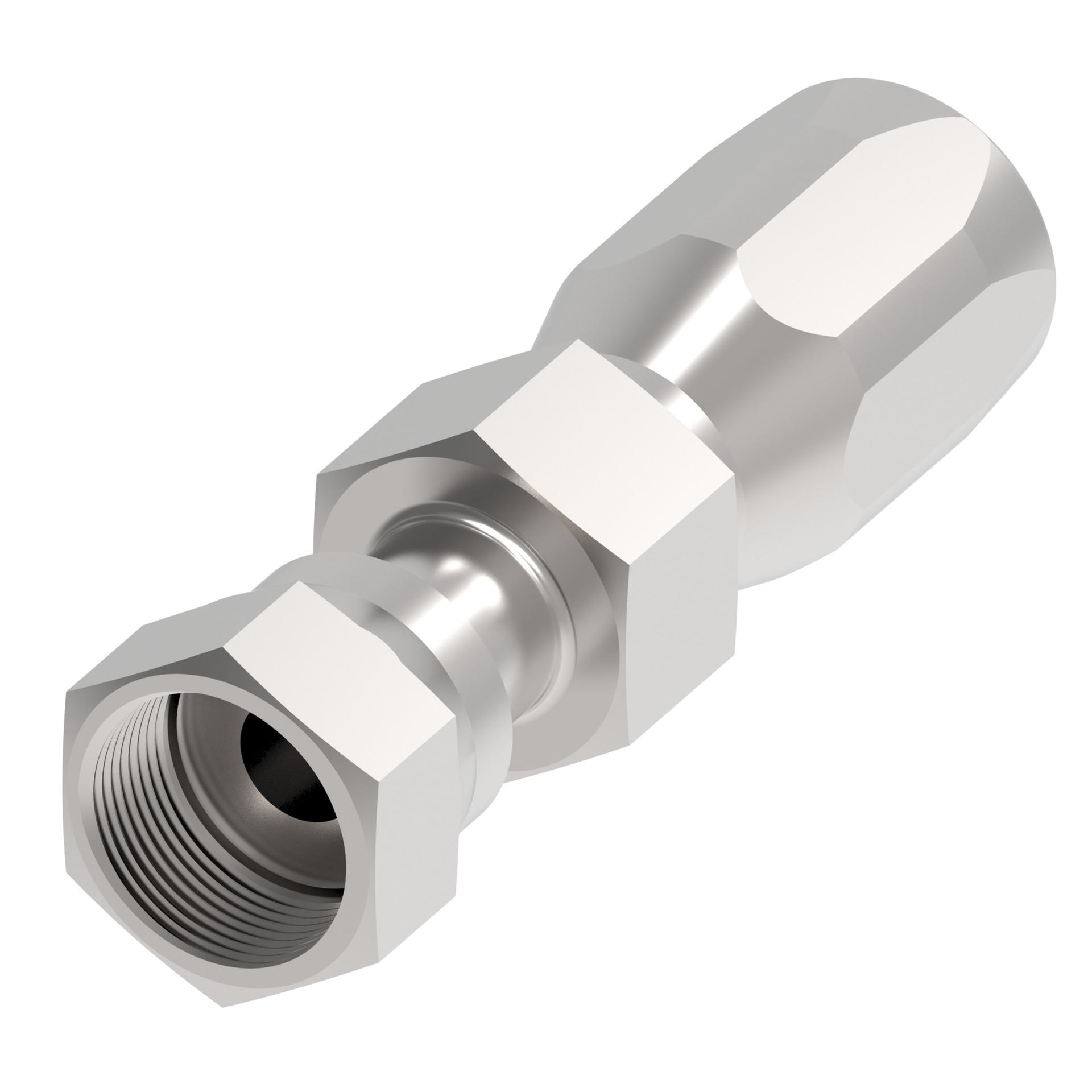

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.500 |
| A dimension MM | 88.800 |
| Angle shape | Straight |
| Brand | Danfoss |
| Compatible hose ID IN | 1.000 |
| Construction Style | Reusable |
| End size 1 | -16 |
| End type 1 | Female ORFS swivel |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.625 |
| Hex size 1 MM | 41.000 |
| Hex size 2 IN | 1.614 |
| Hex size 2 MM | 41.000 |
| Hose cut off factor IN | 2.230 |
| Hose cut off factor MM | 56.600 |
| Inside diameter IN | 0.8200 |
| Inside diameter MM | 20.8000 |
| Product height in | 1.870 |
| Product height mm | 47.498 |
| Product length in | 4.080 |
| Product length mm | 103.632 |
| Product material | Carbon steel |
| Product width in | 1.630 |
| Product width mm | 41.402 mm |
| Reusable socket hex MM | 37.000 |
| Thread sealant | No |
| Thread size 1 | 1 7/16-12 UN |
| Working pressure max bar | 414 |
| Working pressure max psi | 6000 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146066107 |
