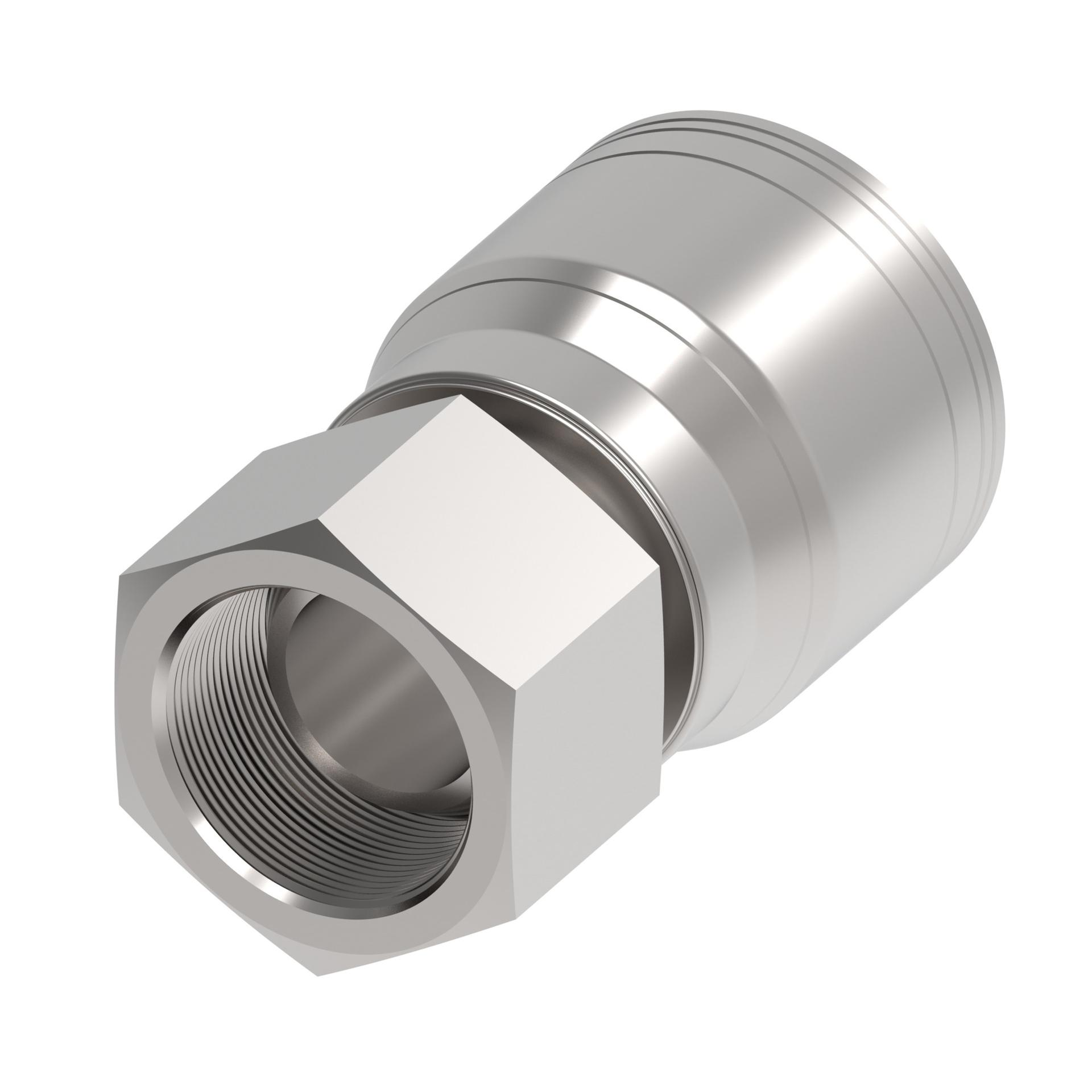

Hose Fittings 1A16BF16 [RIGHT]

HOSE FTG, 1A/16, BSP-F/16,-S

1A16BF16


Tools

Product specifications

Characteristic
Value
A dimension IN2.440
A dimension MM62.000
Body sizeN/A
BrandAeroquip by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
End connection torque162-184 lb-ft(220-250 Nm)
Finish platingDura-Kote
Hose cut off factor IN1.190
Hose cut off factor MM30.200
Hose size-16
Inside diameter IN0.810
Inside diameter MM20.700
Product height in1.940
Product height mm49.276
Product length in3.000
Product length mm76.200
Product width in1.940
Product width mm49.276 mm
Series1A/Z Series
Thread sealantNo
Working pressure max psi4050

General specifications

Characteristic
Value
EAN678146123664
