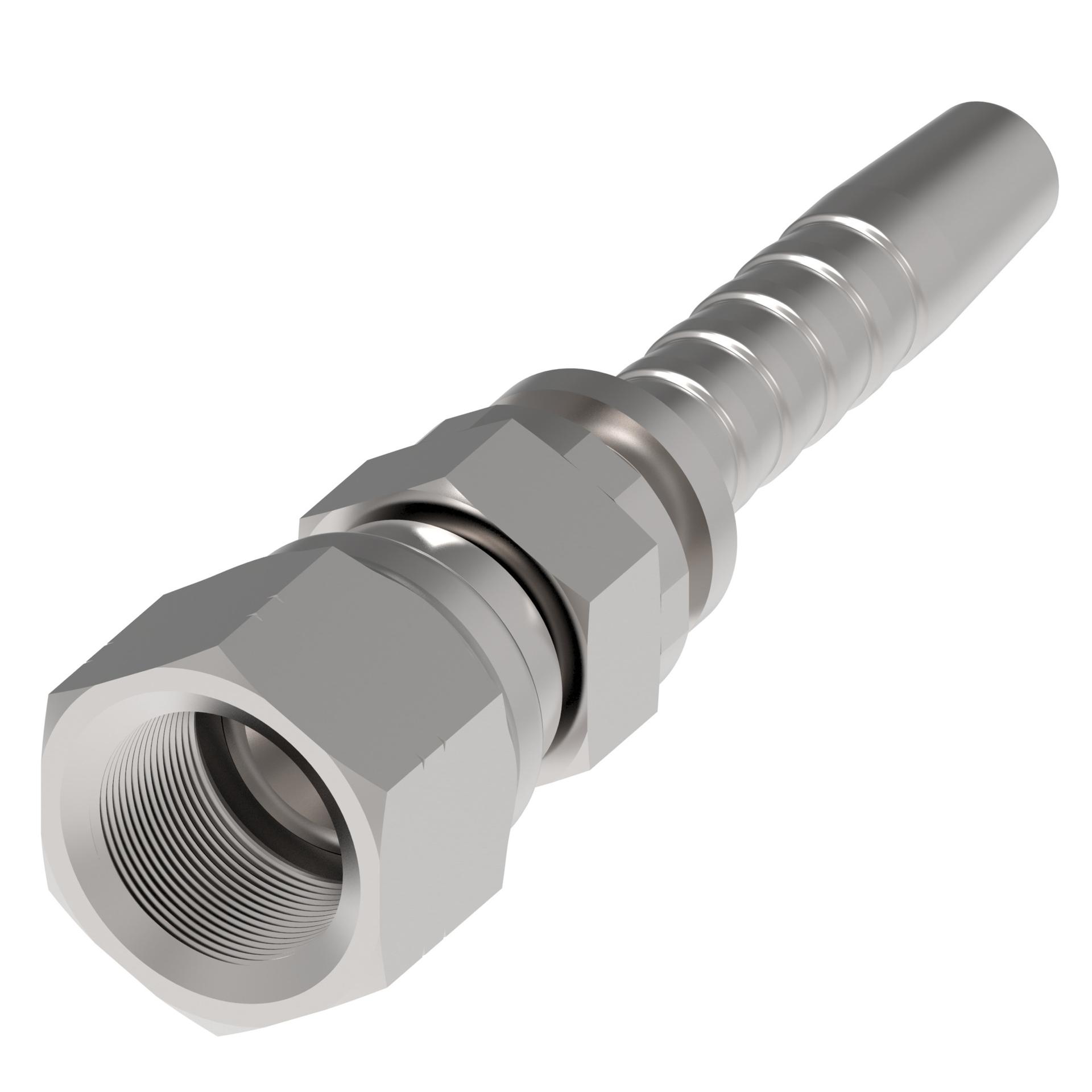

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 3.124 |
| A dimension MM | 79.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Catalog Item | 26711D-12-10ZF |
| Compatible hose ID IN | 0.620 |
| Construction Style | Crimp |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.260 |
| Hex size 1 MM | 32.000 |
| Hex size 2 IN | 1.260 |
| Hex size 2 MM | 32.000 |
| Hose cut off factor IN | 1.788 |
| Hose cut off factor MM | 45.500 |
| Inside diameter IN | 0.472 |
| Inside diameter MM | 11.900 |
| Product height in | 1.450 |
| Product height mm | 36.900 |
| Product length in | 2.559 |
| Product length mm | 65.000 |
| Product material | Carbon steel |
| Product width in | 1.259 |
| Product width mm | 32.000 |
| Thread size 1 | 1 1/16-12 UN |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146192530 |
