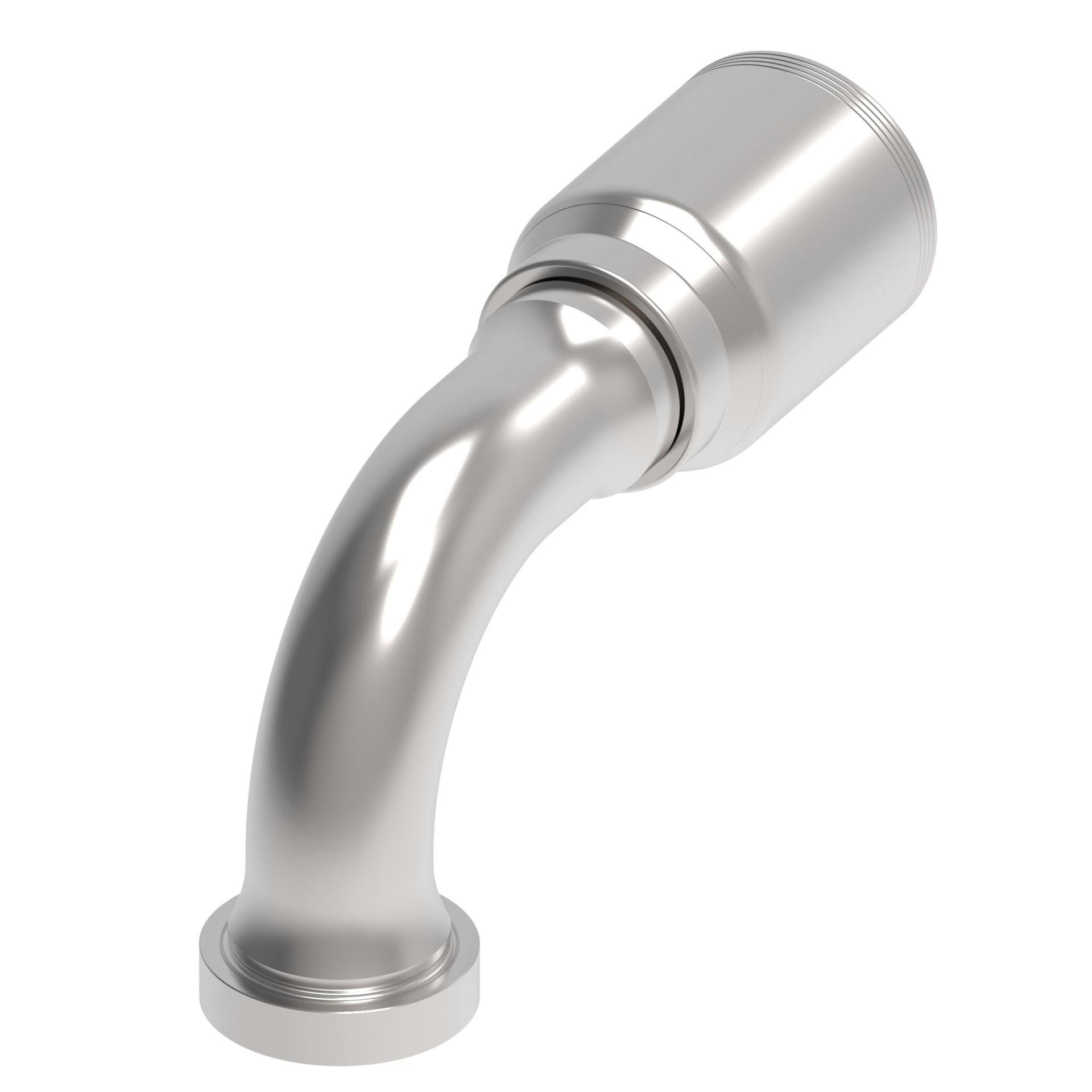

Hose Fittings 4S24CTB24 (RIGHT)

Ftng (perm), 4-sprl 4SCAT SPLIT FLNG-90

4S24CTB24


Tools

Product specifications

Characteristic
Value
A dimension IN8.220
A dimension MM208.900
Angle shape90 Degree
BrandDanfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN4.160
Drop dimension MM105.70
End size 1-24
End Type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN5.150
Hose cut off factor MM130.900
Inside diameter IN1.220
Inside diameter MM31.100
Product height in5.570
Product height mm141.478
Product length in9.850
Product length mm250.190
Product materialCarbon steel
Product width in2.823
Product width mm71.704 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working pressure max bar138
Working pressure max psi2000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN815628022255
