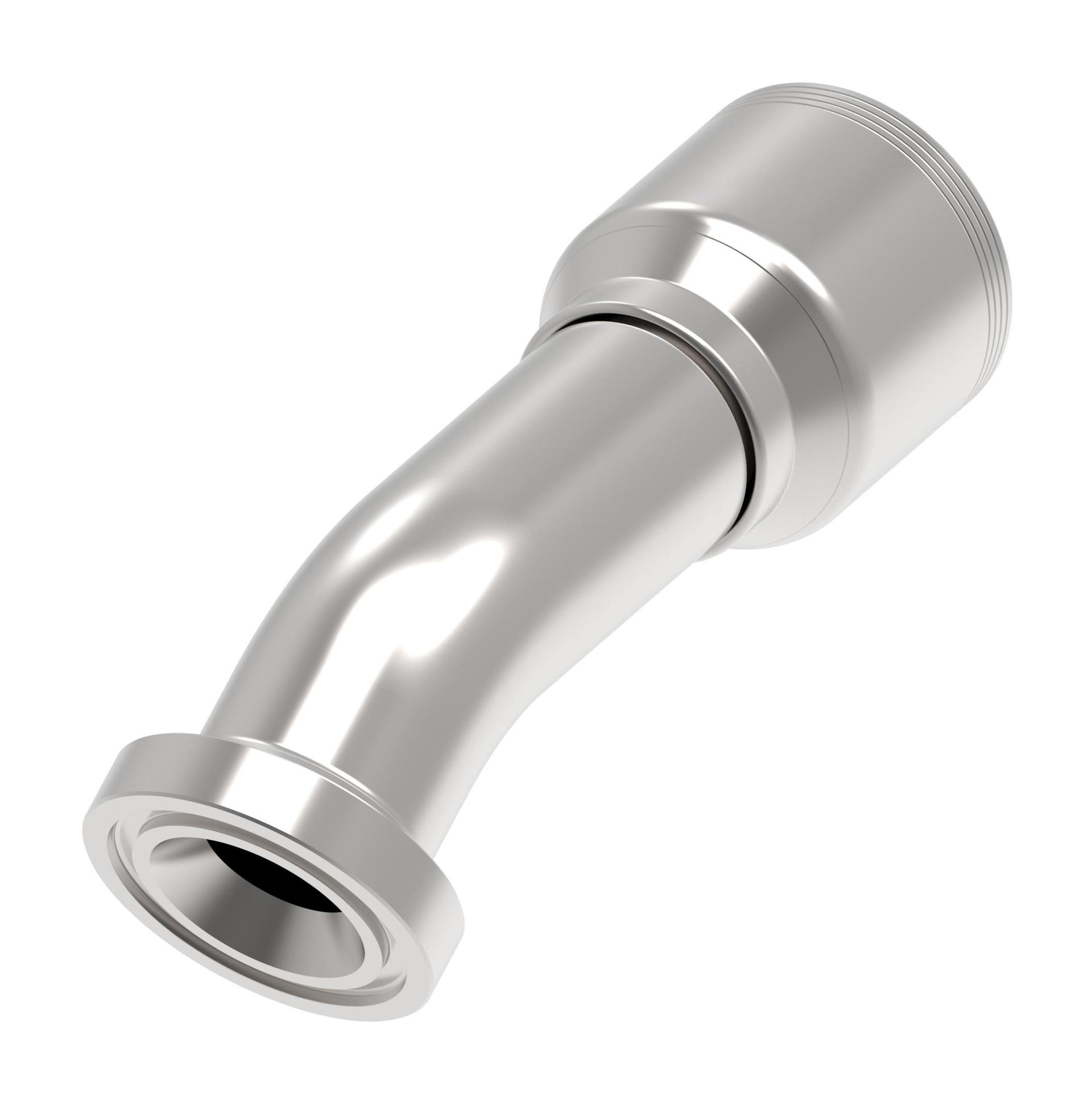

Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 7.580 |
| A dimension MM | 192.600 |
| Angle shape | 30 Degree |
| Brand | Danfoss |
| Compatible hose ID IN | 1.250 |
| Construction Style | Crimp |
| Drop dimension IN | 1.060 |
| Drop dimension MM | 26.80 |
| End size 1 | -24 |
| End type 1 | Split flange code 62 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 5.420 |
| Hose cut off factor MM | 137.600 |
| Inside diameter IN | 0.990 |
| Inside diameter MM | 25.200 |
| Product height in | 3.790 |
| Product height mm | 96.266 |
| Product length in | 8.280 |
| Product length mm | 210.312 |
| Product material | Carbon steel |
| Product width in | 2.500 |
| Product width mm | 63.500 mm |
| Seal material | Ethylene propylene (EPDM) |
| Thread sealant | No |
| Working pressure max BAR | 414 |
| Working pressure max PSI | 6000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN/UPC | 678146153784 |
