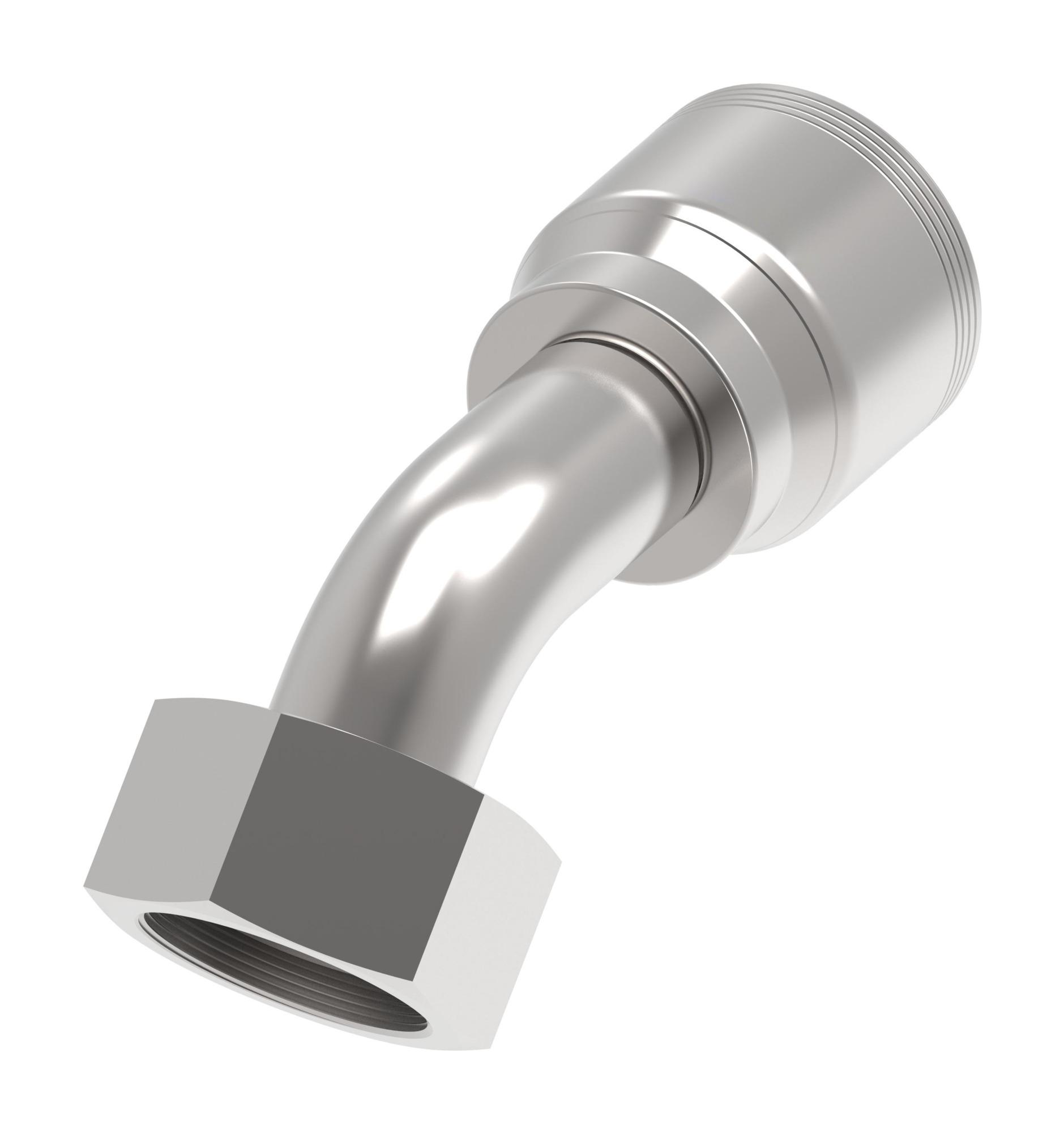

Danfoss 4S Series Crimp Hose Fittings Female Swivel DIN 24 Seat 45 Elbow 4SXXDSA16 (RIGHT)

HOSE FTG, 4S/16, DKOH/32,-S, 90D

4S32DSA16


Tools

Product specifications

Characteristic
Value
A dimension IN5.710
A dimension MM145.100
Angle shape45 Degree
BrandDanfoss
Compatible hose ID IN1.000
Drop dimension IN1.540
Drop dimension MM39.0
End size 1-32
End Type 124 deg. DKO swivel heavy duty
Finish platingDura-Kote
Hex size 1 IN2.360
Hex size 1 MM60.0
Hose cut off factor IN4.150
Hose cut off factor MM105.300
Inside diameter IN0.760
Inside diameter MM19.200
Product height in3.760
Product height mm95.504
Product length in6.970
Product length mm177.038
Product materialCarbon steel
Product width in2.100
Product width mm53.340 mm
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 1M52x2
Working pressure max bar280
Working pressure max psi4050
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN813688022888
