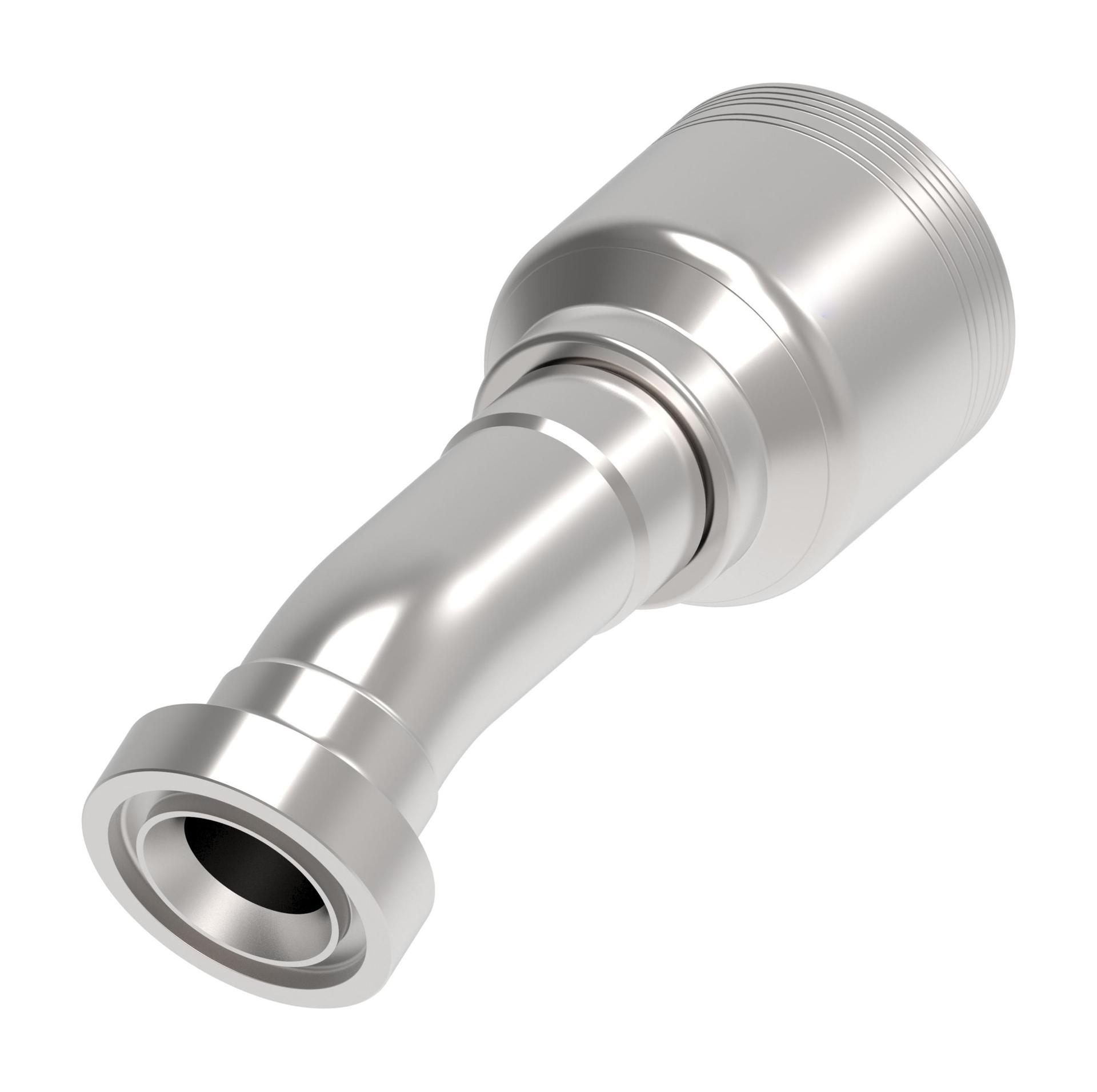

Danfoss 6S Series Crimp Hose Fittings CAT Flange 22.5 Elbow 6SXXCTD20 (RIGHT)

Ftng perm other6-sprl cat flange 22.5

6S20CTD20


Tools

Product specifications

Characteristic
Value
A dimension IN7.160
A dimension MM181.900
Angle shape22.5 Degree
BrandDanfoss
Compatible hose ID IN1.250
Construction StyleCrimp
Drop dimension IN0.700
Drop dimension MM17.80
End size 1-20
End type 1Caterpillar flange
Finish platingDura-Kote
Hose cut off factor IN4.960
Hose cut off factor MM125.900
Inside diameter IN0.990
Inside diameter MM25.200
Product height in3.060
Product height mm77.724
Product length in7.850
Product length mm199.390
Product materialCarbon steel
Product width in2.610
Product width mm66.294 mm
Seal materialEthylene Propylene (EPDM)
Thread sealantNo
Working temperature max C127
Working temperature max F260
Working temperature min C-40
Working temperature min F-40

General specifications

Characteristic
Value
EAN813688028842
