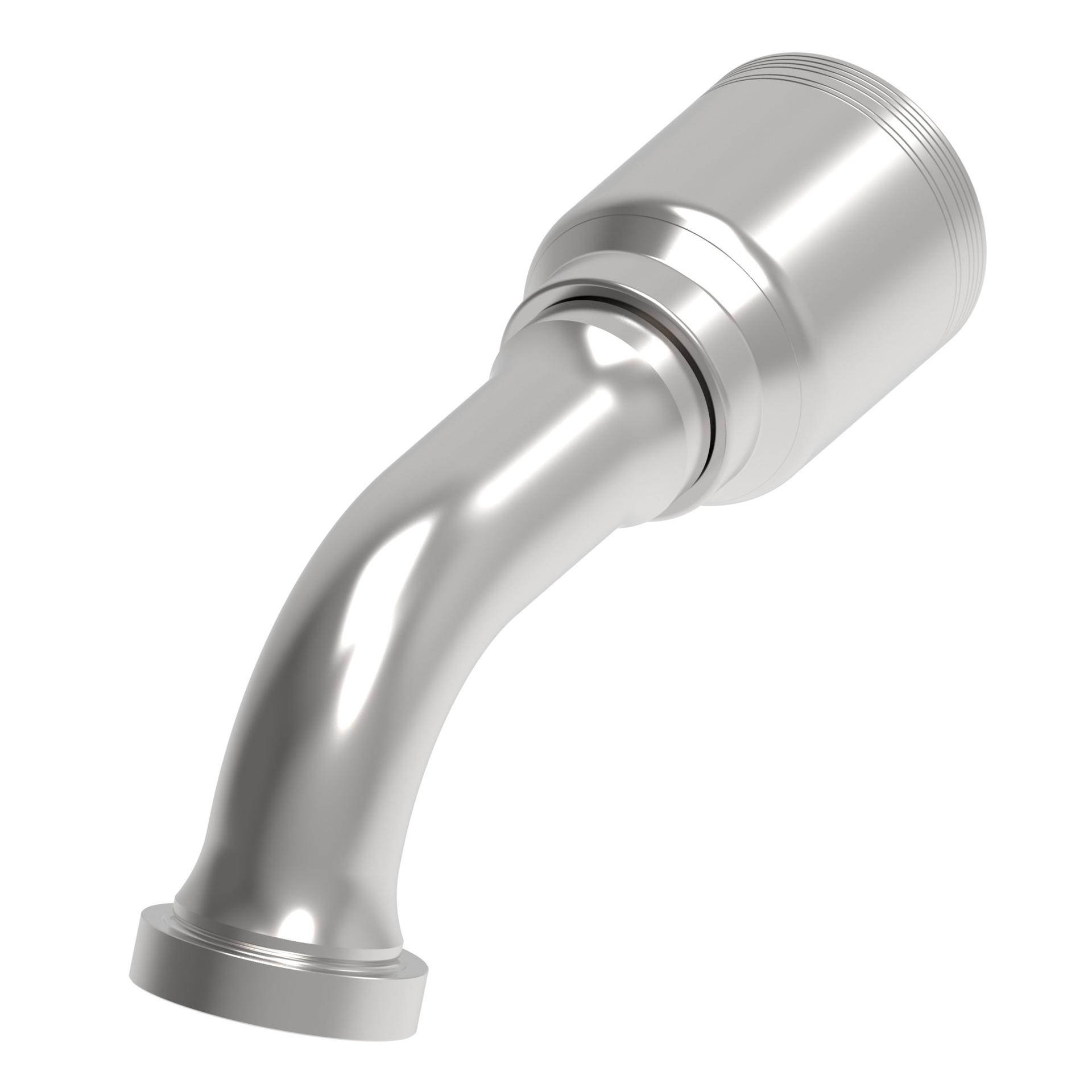

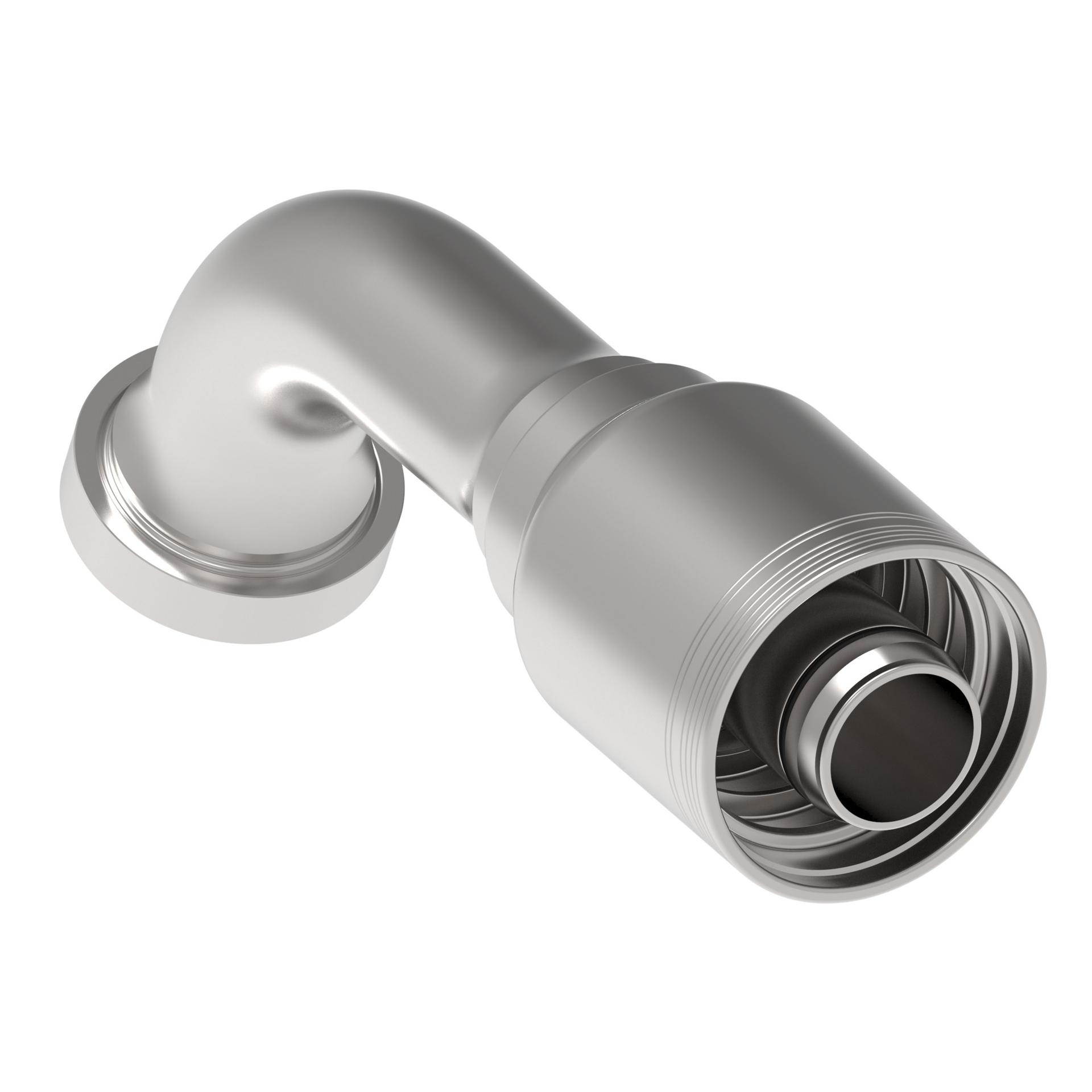

![Hose Fittings 6S24CTE24 [RIGHT]](/_next/image?url=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F213706%2FID432877860867-0101_preview.jpg&w=3840&q=75)
Product specifications
Characteristic | Value |
|---|---|
| A dimension IN | 9.640 |
| A dimension MM | 244.800 |
| Angle shape | 67.5 Degree |
| Compatible hose ID IN | 1.500 |
| Construction Style | Crimp |
| Drop dimension IN | 3.020 |
| Drop dimension MM | 76.80 |
| End size 1 | -24 |
| End Type 1 | Caterpillar flange |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 6.570 |
| Hose cut off factor MM | 166.800 |
| Inside diameter IN | 1.220 |
| Inside diameter MM | 31.100 |
| Product height in | 5.100 |
| Product height mm | 129.540 |
| Product length in | 10.890 |
| Product length mm | 276.606 |
| Product material | Carbon steel |
| Product width in | 2.970 |
| Product width mm | 75.438 mm |
| Seal material | Ethylene Propylene (EPDM) |
| Thread sealant | No |
| Working temperature max C | 127 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
General specifications
Characteristic | Value |
|---|---|
| EAN | 815628022934 |
