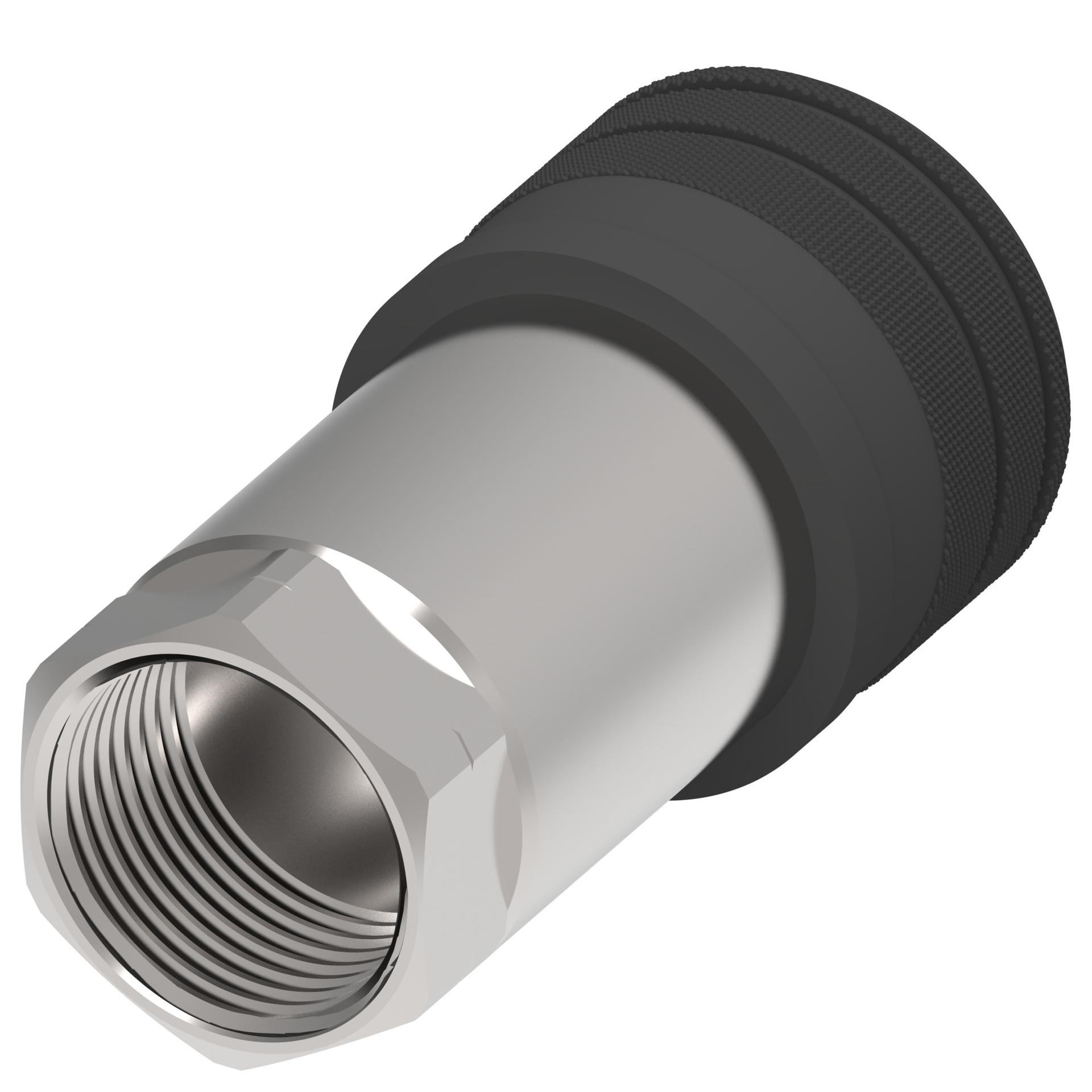

Product specifications
Characteristic | Value |
|---|---|
| Air inclusion max cc | 0.00 |
| Angle shape | Straight |
| Application | Cooling applicationsData centersProcess industryRailwaysRenewable energy |
| Basic Data Text Template | SOCKET ALU THR. G1/4' + EPDM |
| Body size | 1/4 |
| Brand | Danfoss |
| Certifications | ISO 16028 |
| Connection style | Manual connect |
| End size 1 | -4 |
| End type 1 | Female BSPP port washer seal. |
| Flow rate gpm | 6.60 |
| Fluid loss cc | 0.00100 |
| Hex size 1 IN | 0.870 |
| Item type | Female half |
| Latch type | Push to connect |
| Product material | Aluminum |
| Seal material | Ethylene Propylene (EPDM) |
| Sub brand | Hansen |
| Thread size 1 | G 1/4 |
| Valve type | 2 way |
| Working pressure max psi | 360 |
| Working temperature max F | 302 |
| Working temperature min F | -40 |
