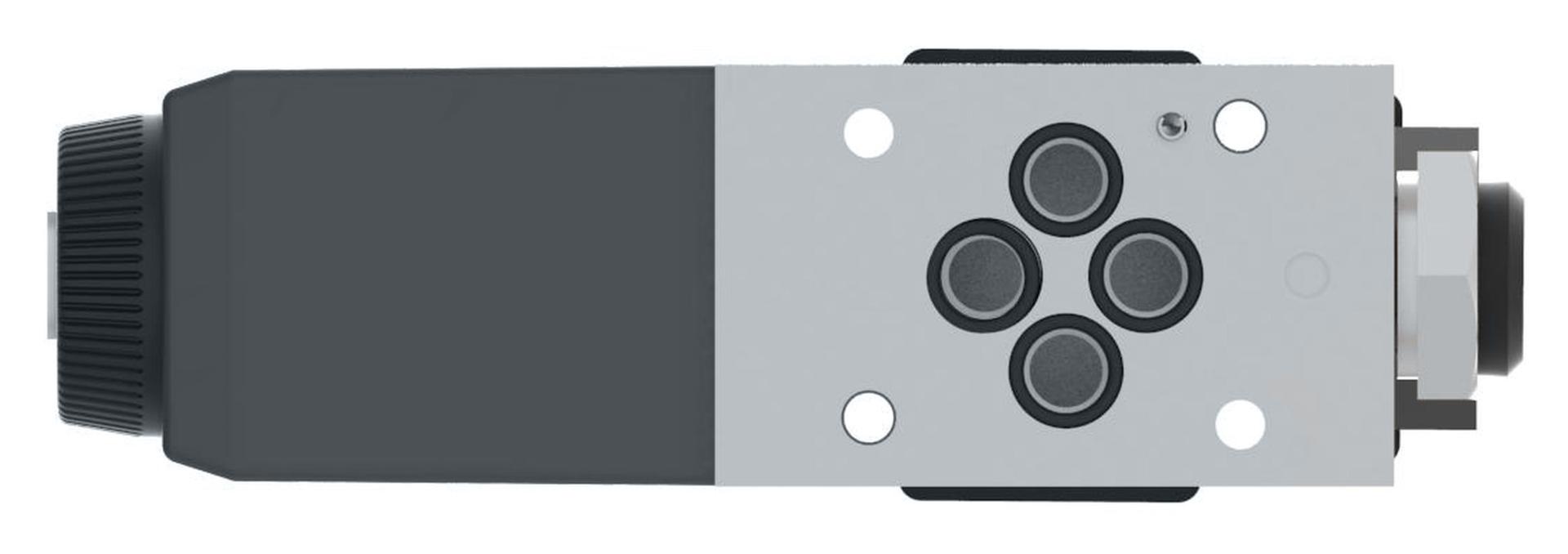

Vickers by Danfoss DG4V-3 60 Design Directional Control Valves Single Stage DG4V3S2AMFWLB560EN21 (BOTTOM)

DG4V-3S-2A-M-FWL-B5-60-E N21, DG4V3S2AMFWLB560EN21, DG4V3S2AMFWLB560EN21

02-149682


Tools

Product specifications

Characteristic
Value
Actuation typeSolenoid operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design series60 Series
Electrical connectionFlying lead 1/2" NPT housing
Energ Time18-32 ms
Flow rate upto GPM10.5
Flow rate upto LPM40.0
Fluid cleanliness19/17/14 micron
Fluid compatibilityPetroleum Oils
Indicator LightYes
InterfaceISO4401-03
Manual overridePlain
Model CodeDG4V3S2AMFWLB560EN21
Model Code 1DG4V3S2AMFWLB560EN21
PerformanceStandard performance
Power Consumption49VA 50HZ - 48VA 60HZ
Pressure ratiing PSI5000
Pressure rating BAR350
Seal typeViton
Solenoid Energising IDStandard as per ANSI B93 9
Special FeaturesCSA approved
Spool Position MonitorNo
Spool typeSpool 2
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR100
Tank port rating PSI1450
Valve mount typeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
