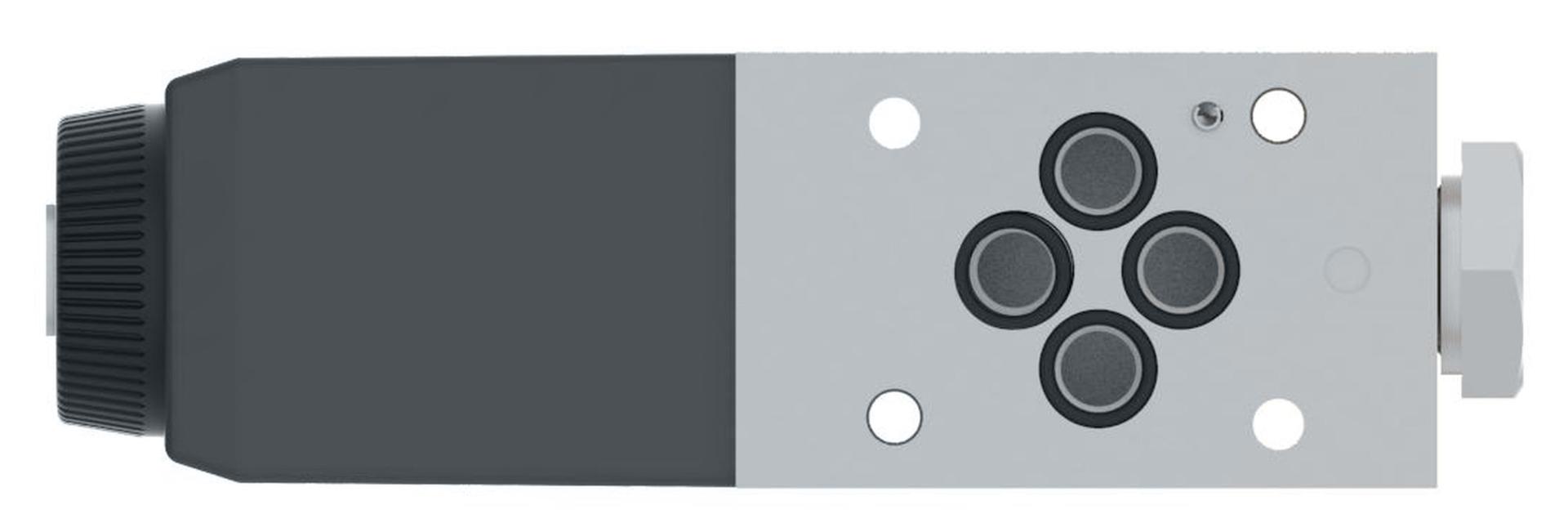

Vickers by Danfoss DG4V-3 60 Design Directional Control Valves Single Stage DG4V322AHMUD660 (BOTTOM)

DG4V-3-22A-M-FPA5WL-B8-60, DG4V322AMFPA5WLB860, DG4V322AMFPA5WLB860

12008415


Tools

Product specifications

Characteristic
Value
Actuation TypeSolenoid operated
BrandVickers by Danfoss
Coil Rating110 VAC 50Hz/120 VAC 60Hz
Design Series60 Series
Electrical Connection5-Pin connector
Energ Time15-23 ms
Flow rate upto GPM21.0
Flow rate upto LPM80.0
Fluid Cleanliness19/17/14 micron
Fluid CompatibilityPetroleum oils
Indicator LightYes
InterfaceISO4401-03
Manual overridePlain
Model CodeDG4V322AMFPA5WLB860
Model Code 1DG4V322AMFPA5WLB860
PerformanceHigh performance
Power Consumption61VA 50HZ - 58VA 60HZ
Pressure rating BAR350
Pressure rating PSI5000
Seal typeViton
Solenoid Energising IDStandard as per ANSI B93 9
Special FeaturesNone
Spool Position MonitorNo
Spool TypeSpool 22
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR160
Tank port rating PSI2300
Valve Mount TypeSubplate/manifold mounted
Valve TypeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
