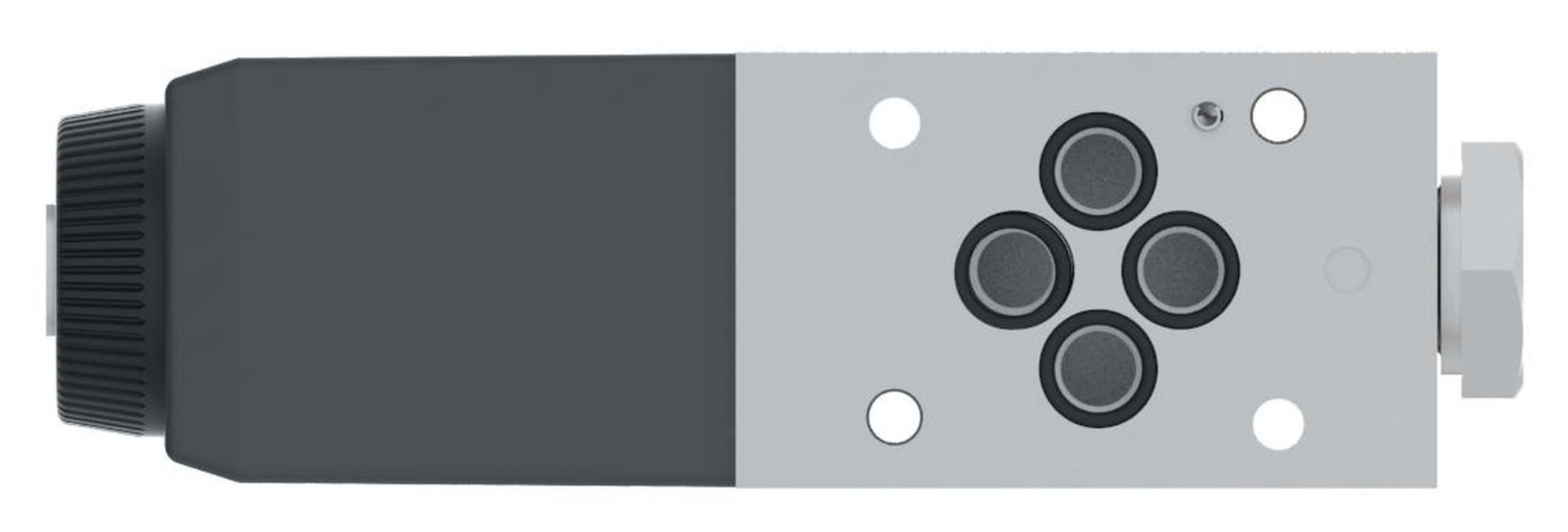

Vickers by Danfoss DG4V-3 60 Design Directional Control Valves Single Stage DG4V322AMUH760 (BOTTOM)

DG4V 3 22A M U H7 60, DG4V322AMUH760, DG4V322AMUH760

869860


Tools

Product specifications

Characteristic
Value
Actuation typeSolenoid operated
BrandVickers by Danfoss
Coil Rating24 VDC
Design series60 Series
Electrical connectionISO 4400 (Din 43650) connector
Energ Time45-28 ms
Flow rate upto GPM21.0
Flow rate upto LPM80.0
Fluid cleanliness19/17/14 micron
Fluid compatibilityPetroleum Oils
Indicator LightNo
InterfaceISO4401-03
Manual overridePlain
Model CodeDG4V322AMUH760
Model Code 1DG4V322AMUH760
PerformanceHigh performance
Power Consumption30 watt
Pressure ratiing PSI5000
Pressure rating BAR350
Seal typeViton
Solenoid Energising IDStandard as per ANSI B93 9
Special FeaturesNone
Spool Position MonitorNo
Spool typeSpool 22
Spring ArrangementSpring offset end to end
StageSingle stage
Surge Suppr DamperNo
Tank port rating BAR210
Tank port rating PSI3000
Valve mount typeSubplate/manifold mounted
Valve typeDirectional control valve
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
