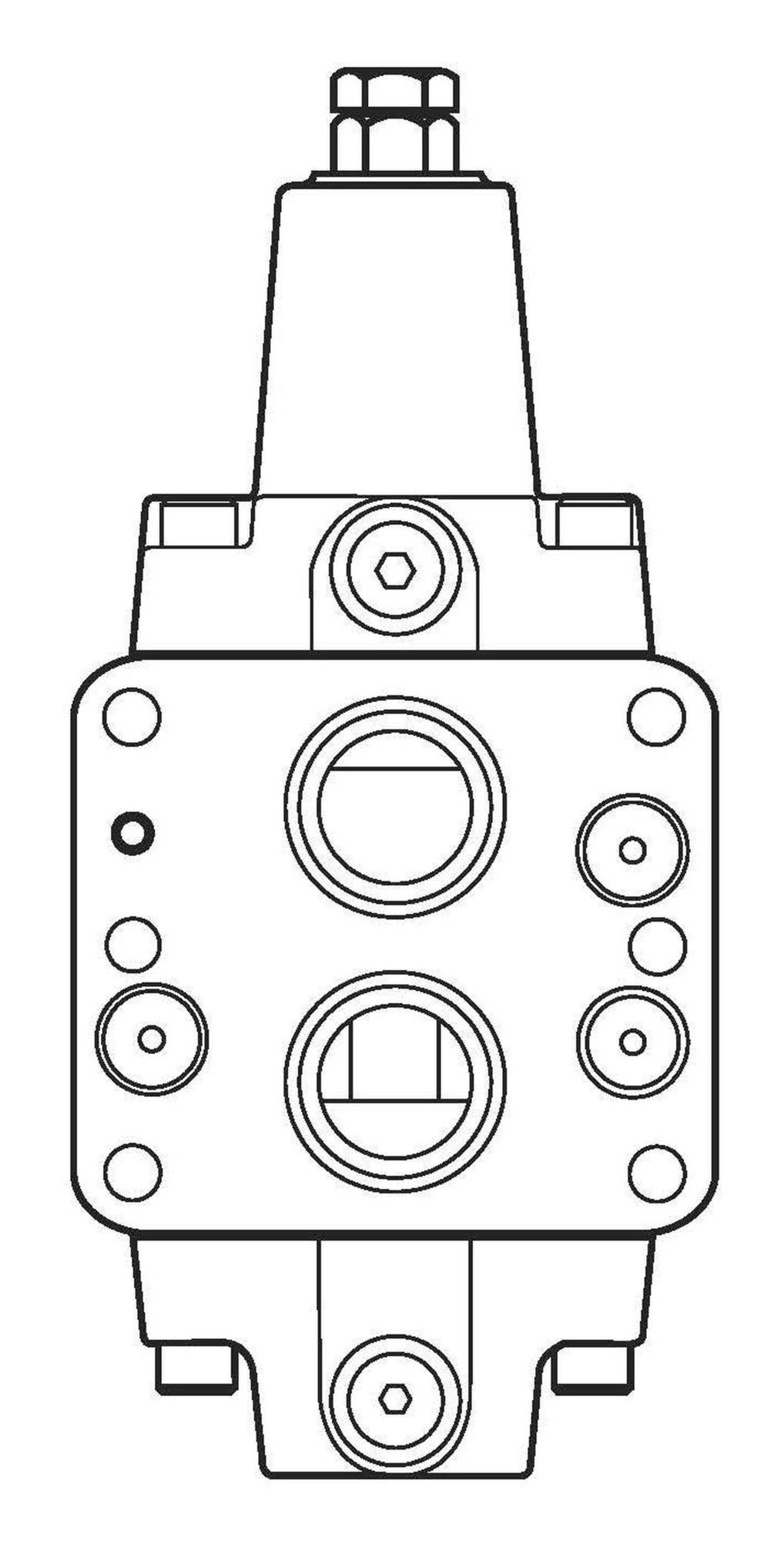

RG-10-DP4-30, RG10DP430-product-details

RG-10-DP4-30, RG10DP430

730143


Tools

Product specifications

Characteristic
Value
Actuation TypePilot operated
Adjustment range17.2-70 bar (250-1000 psi)
Adjustment typeScrew with locknut
BrandVickers by Danfoss
Check valveNo
Design Series30 Series
DrainInternal
Electrical connectionNone
Flow rate LPM284
Flow rate USgpm75.0
Fluid Cleanliness19/17/14 micron
Fluid compatibilityPetroleum oils
Hi-vent springNo
Indicator LightNo
Maximum pressure BAR210
Maximum pressure PSI3000
Model Code 1RG10DP430
PerformanceStandard
Seal materialNitrile
SizeSize 10
Special featureNone
StageTwo stage
Valve Mount TypeSubplate/manifold mounted
Valve typePressure control valve
Working temperature max C70
Working temperature max F158
Working temperature min C-20
Working temperature min F-4
