Subsystem valves
Unlike configurable valves, which can serve multiple purposes in a machine, a subsystem valve is designed for a specific use within a complex system. Our line of subsystem valves includes brake valves and self-leveling valves.

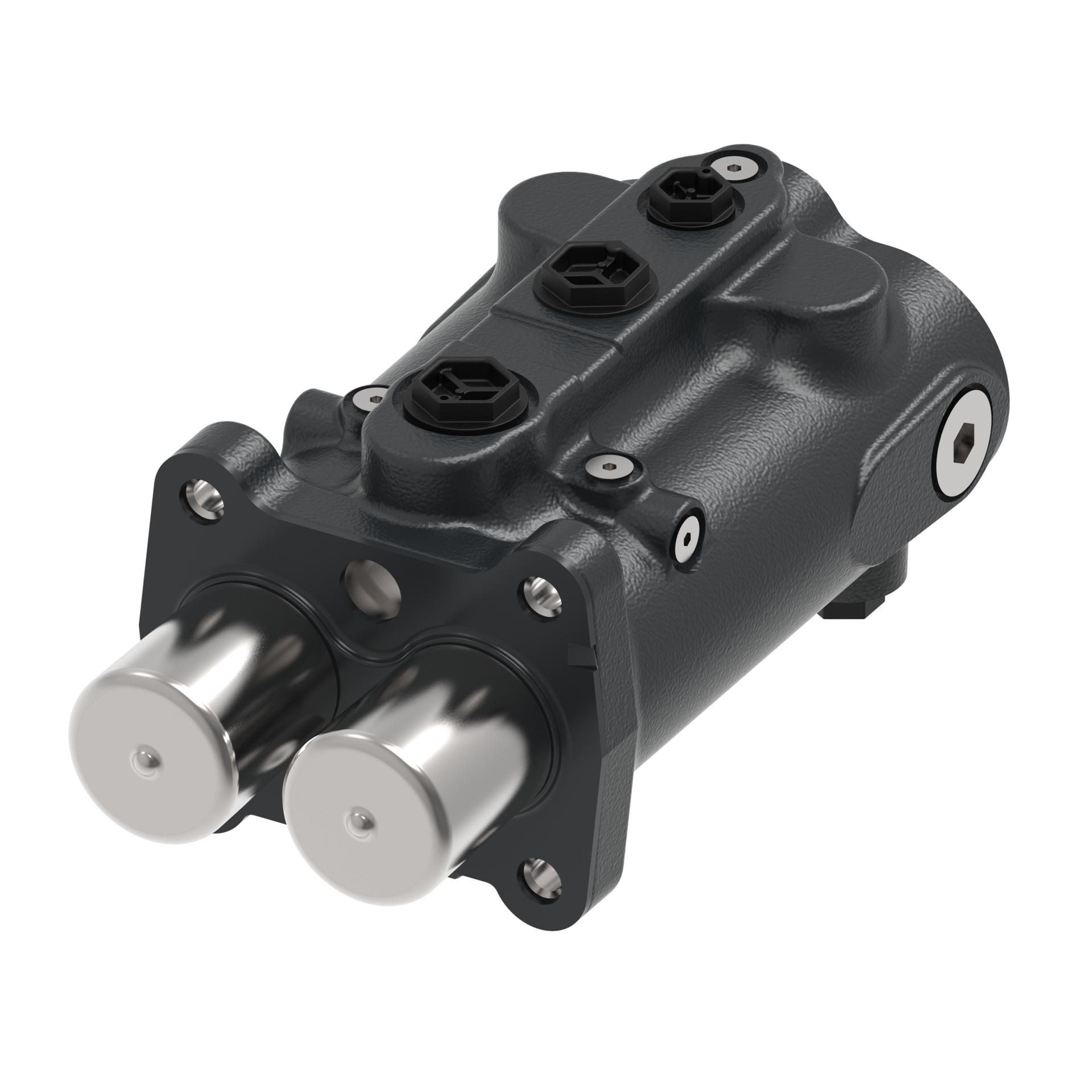

Our wide range of brake valves include single, dual, and trailer brakes. These valves can help you increase machine performance productivity with reliable braking.
Our self-leveling valves automatically keep buckets, platforms and other implements level to the ground without additional operator inputs needed.
Product types shown: 2
Self-leveling valves
A self-leveling valve’s purpose is to keep a bucket, platform, or other implement level with the ground. It functions by flow-dividing the output of one service, like a boom cylinder, to the input of another service, like a bucket cylinder. Available in single-valve configurations rated for pressures up to 207 bar [3,000 psi] and flows up to 56.8 l/min [15 US gal/min] and dual-valve configurations rated up to 240 bar [3,500 psi] and 76 l/min [20 US gal/min], our valves use cylinder geometry and divider sizing to accomplish leveling without the need for mechanical or electrical position feedback.
