Industrial cam lobe motors

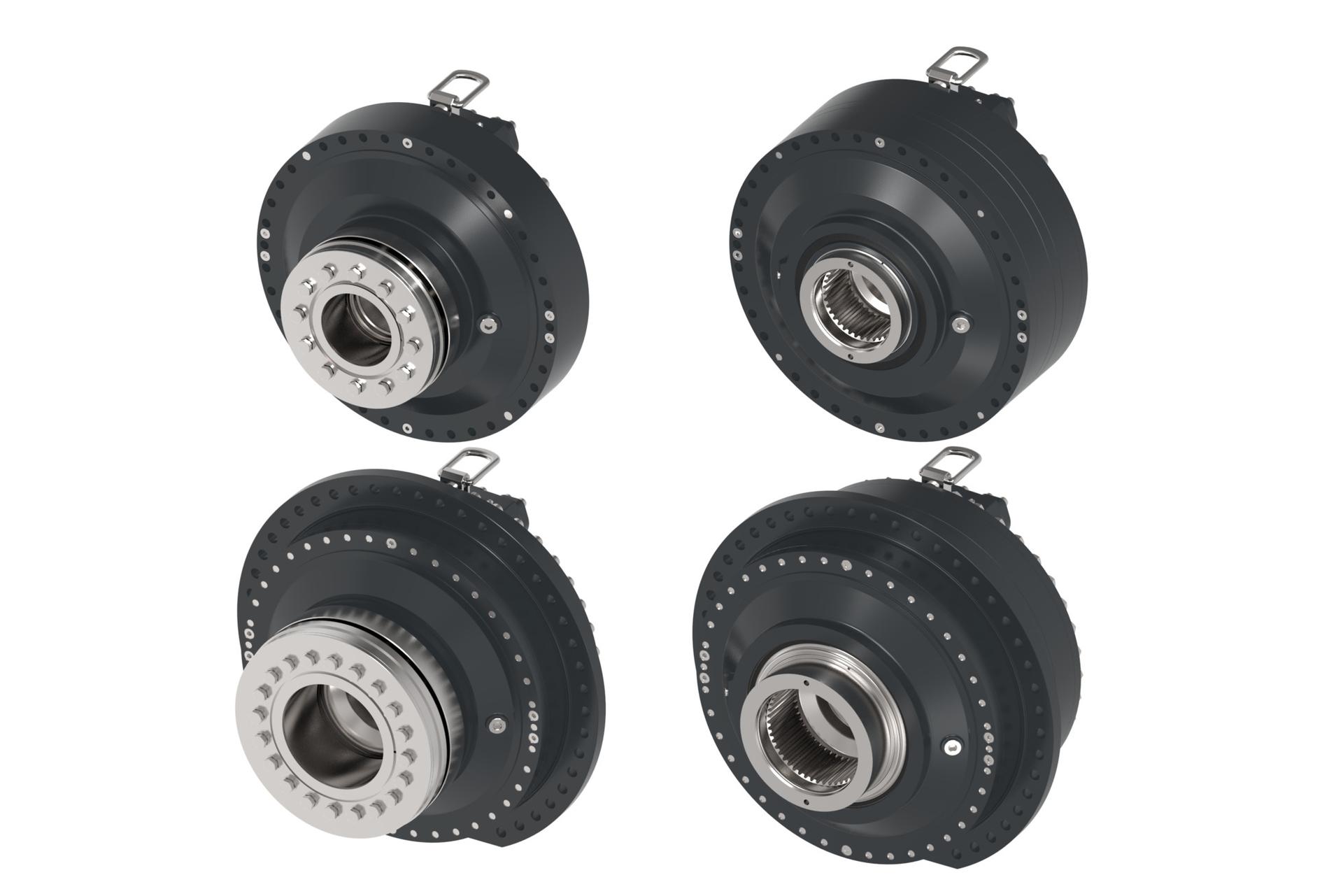

This radial piston cam curve motor is designed with a rotating cylinder block mounted in roller bearings within the motor housing. The cylinder block incorporates either a hollow shaft to facilitate mounting on a driveshaft via a shrink disc coupling or splines to facilitate mounting directly on a splined shaft. The block is mounted in fixed roller bearings in the housing, which also accommodates the output drive housing.
Features and benefits
- Drop-in replacement for Hagglunds CB and QMX motors
- 350-bar rated, variable-speed direct drive
- Maximum torque efficiency from zero speed
- Diamond-like carbon coating enhances wear resistance and efficiency
- Flexible shaft-mounted design eliminates gearboxes and couplings
- Multi-stroke, hydraulically balanced radial piston design
- Best-in-class power and torque density with low inertia
Applications
- Bulk material handling: conveyors, stackers, reclaimers, and loaders
- Mining and crushing: shredders, roller crushers, and mobile stations
- Pulp and paper: digesters, debarkers, pulpers, and de-watering screws
- Marine and offshore: anchor winches, steering gear, and thrusters
- Industrial processing: extruders, mixers, sugar cane mills, and agitators
Specifications
| Parameter | Value |
| Maximum operating pressure | 350 bar |
| Displacement range | 15.1 to 52.8 L/rev |
| Maximum torque | Up to 280 kNm |
| Maximum operating power | Up to 970 kW |
| Available frame sizes | 4 (ICMB 280, 400, 560, 840) |
| Total displacements available | 18 |
