Industrial motors
Our industrial motors are suited for the most demanding industrial type applications, including harsh environments found in the offshore and oilfield markets. These motors are available with a wide range of capabilities, from low-speed, high-torque (LSHT) to high-speed and high-power requirements, along with a wide range of controls for the variable displacement versions.
Industrial motors include industrial piston motors, industrial vane motors, and industrial drives.
Products shown: 3

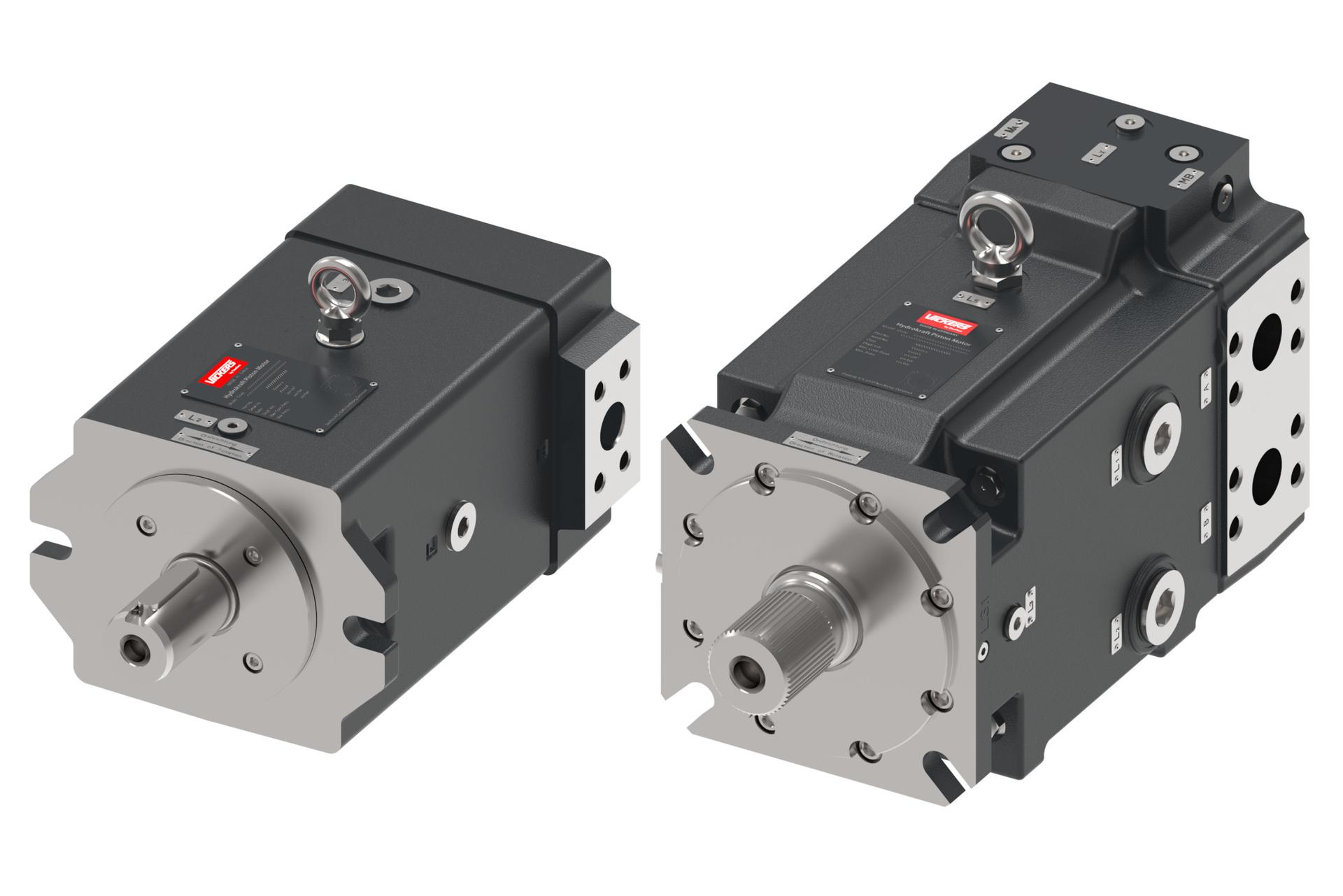

Industrial piston motors
With displacements ranging from 66 cm3 to 750 cm3 [4 in3 to 46 in3], our piston motors fit a wide variety of applications, ranging from high speed to high power requirements. Our motors are designed with the largest shaft bearings available for long life and are well suited for harsh environments found in the offshore and oilfield markets. They are available in fixed- and variable-displacement designs and are able to operate on a wide range of fluids, including water-glycol. A range of control options allow motors to be matched to virtually any application.
Industrial vane motors
With displacements ranging from 44 cm3 to 317 cm3 [2.7 in3 to 19.3 in3], our vane motors provide an efficient and economical means of applying variable speed and rotary hydraulic power. These motors are hydraulicly balanced to provide sustained efficiency and low vibration over the life of the motor. They are able to operate on a wide range of fluids, including water-glycol.
Industrial drives
With motor displacements ranging from 99 cm3 to 4,097 cm3 [6 in3 to 250 in3], our industrial drives feature a double-swash-plate design and multiple opposed pistons. The low-speed, high-torque (LSHT) hydraulic motors are equipped with various gear box ratios, providing smooth operation at low speed within the maximum ratings and very little torque ripple. They are well suited for applications such as directional drilling machinery, top-head drives, and marine winches and are able to operate on a wide range of fluids, including water-glycol.
