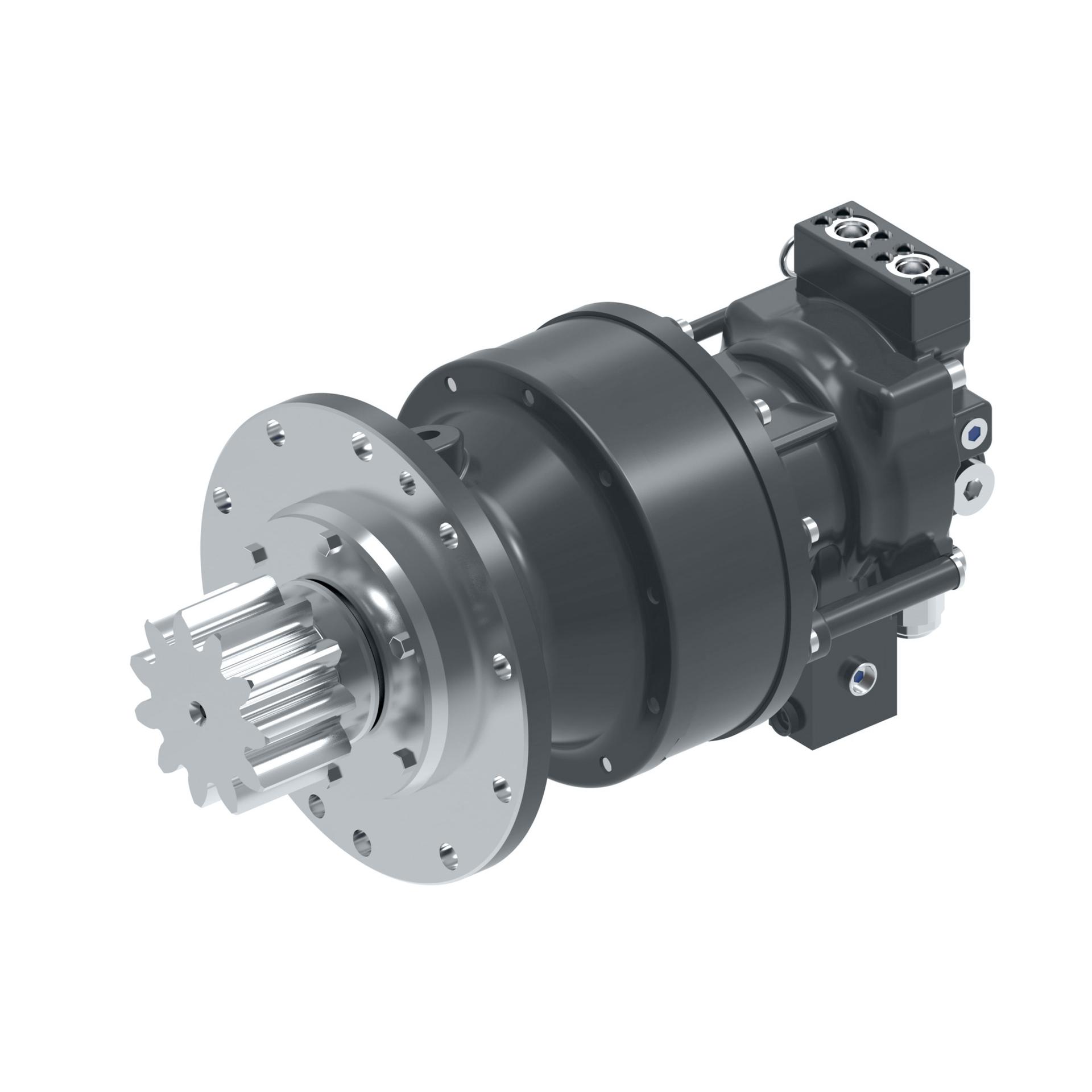

Product specifications
Characteristic | Value |
|---|---|
| A_B main port size | BSPP 1/2 |
| Anti-reverse valve and setting | Built in |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss swing type | Danfoss Swing Motor |
| Design code | First version |
| Displacement | 48 cm3/r (2.92 in3/r) |
| Flow rate GPM | 19.55 |
| Flow rate LPM | 74.0 |
| Gear ratio | 19.5 two stage |
| Gearbox input shaft spec | None |
| Identification | Standard namplate |
| Maximum output speed RPM | 79 |
| Motor mounting | Standard |
| Motor shaft spec | Standard |
| Old model code | JMF048RR0202010111900A00A |
| Output torque LBF-IN | 28393.0 |
| Output torque Nm | 3208.0 |
| Paint | Primer + yellow |
| Parking brake and setting | Standard |
| Relief valve and setting | 220bar (3190 psi) 57.5 |
| Special requirement | None |
| Timedelay and setting | 5 bar (72 psi) |
| Working pressure bar | 216 |
| Working pressure psi | 3133 |
