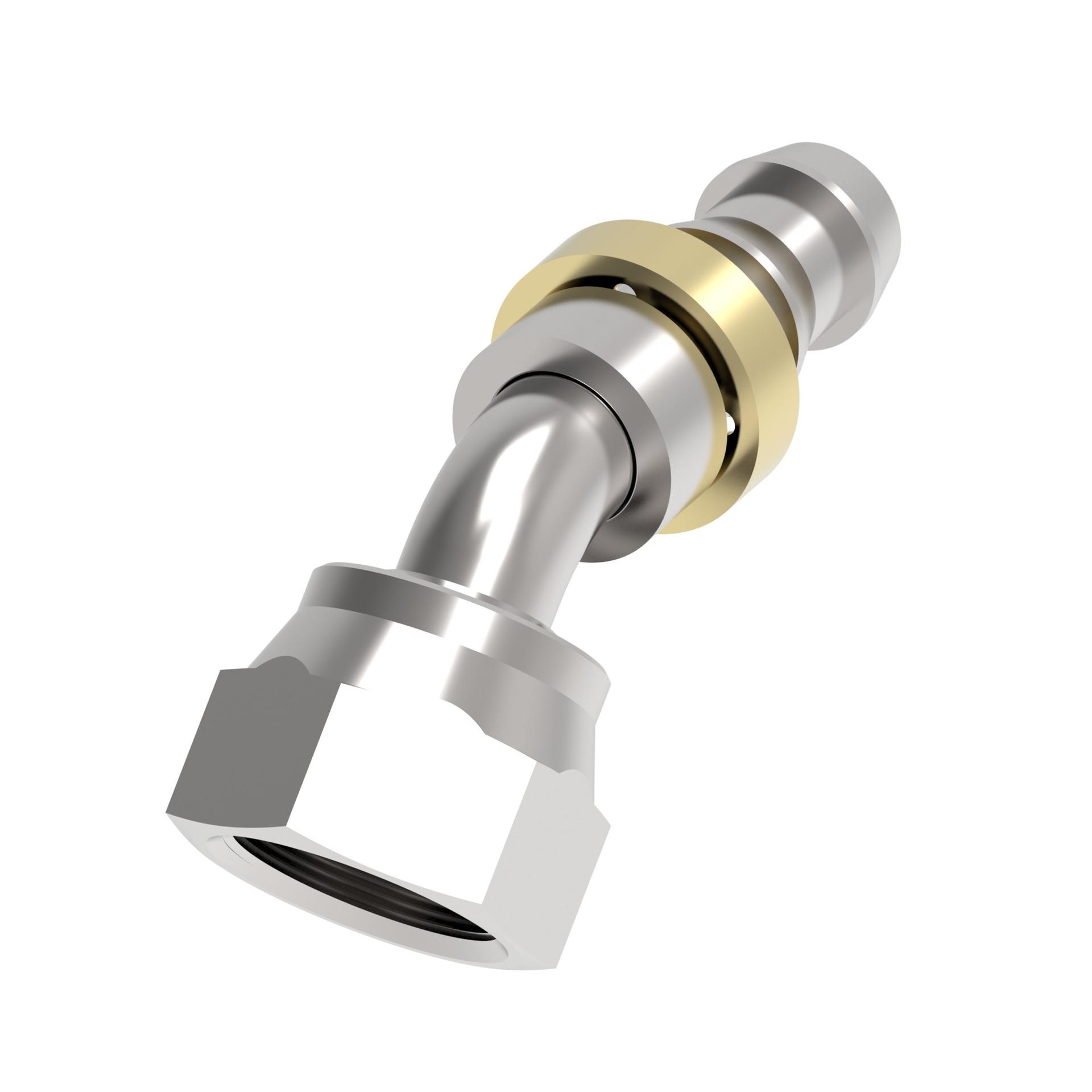

Hose Fittings FJ7023-S (RIGHT)

Ftng (reus) ORS sktls/R6

FJ7023-0808S


Tools

Product specifications

Characteristic
Value
A dimension IN2.346
A dimension MM59.588
Angle shape45 Degree
BrandAeroquip by Danfoss
Catalog ItemFJ7023-0808S
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleReusable
Drop dimension IN0.650
Drop dimension MM16.51
End connection torque40-43 lb-ft(55-57 Nm)
End size 1-8
End type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.940
Hex size 1 MM29.000
Hose cut off factor IN1.330
Hose cut off factor MM33.782
Hose size-8
Inside diameter IN0.370
Inside diameter MM9.398
Product materialCarbon steel
SeriesFJ Series
Thread sealantNo
Thread size 113/16-16 UN
Working pressure max BAR552
Working pressure max PSI8100

General specifications

Characteristic
Value
EAN/UPC678146065834
